| Prod Model: |
mpo |
| Mu Fiber Optic Connector: |
Low Loss, High Quality |
| Cable Diameter Szie: |
3.0mm |
| Boot Color: |
Black |
| Housing Color: |
Green,Beige,Aqua |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
MPO |
| Connector Type: |
MPO |
| Brand: |
Koc |
Product Description
BRIEF INTRODUCTION
MPO and MTP are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks. The MPO can be 4 to 24 fibers, the MPO patchcord cable can be ribbon fiber or breakout fiber, also, the MTP is available; the MT series patchcord have low insertion loss and high precision guide pins exact alignment. ARK independent production of MPO parts,which is very advantageous.
The optical fiber connector is one of the most basic passive components in the optical fiber communication.There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose.Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on.The KOC has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS.If you have other special requirements, the KOC will be specifically for your customization to meet your needs.
Note:Ferrule with/without flange is available
FEATURES
IEC 61754-7 Compliant
Compact design, up to 24 fiber ribbon
Polishing does not require diamond film
High precision guide pins for exact alignment
Precision molded MT ferrule
Telcordia GR-1435-CORE compliant
Low IL and reflection loss
APPLICATIONS
CATV, and Multimedia ,Gigabit Ethernet
Industrial and medical
Active device interface, premise installations
Interconnection for O/E modules
Data processing networks
Telecommunication networks
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)
AVAILABILITY
| MPO: | |

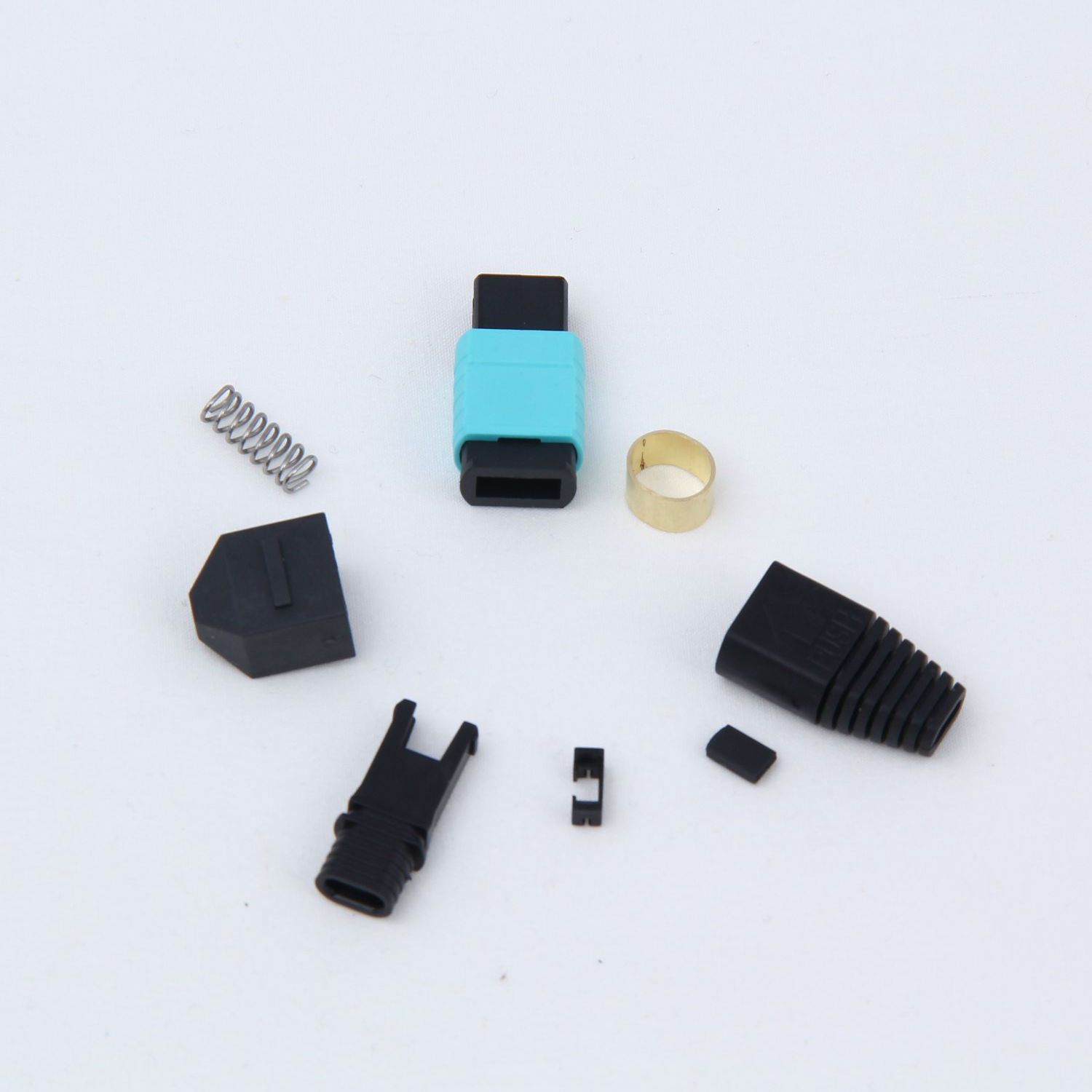

| Ribbon cable boot and ∮3.0mm cable boot are available.MTP connector is available. | |
| MPO male and female connectors are available, multi mode or single mode. | |
| MT-RJ:The housing kits can be supplied as duplex ∮2.0mm cable or simplex ∮3.0mm cable. | |
| MT-RJ male and female connectors are available, multi mode and single mode. | |
SPECIFICATIONS
| ITEM | PARAMETER |
| Fiber mode | Single mode | Multi mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | MT-RJ:Typical≤0.40dB,Max≤0.50dB
MPO:Typical≤0.50dB,Max≤0.70 dB | MT-RJ:Typical≤0.25dB,Max≤0.30dB
MPO:Typical≤0.40dB,Max≤0.50dB |
| Return Loss | APC≥50.0dB;PC≥40dB | / |
| Durability | ≤0.30dB typical change,500 mating |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | - 40ºC to +85ºC |
| Ferrule Specification | 125.0+1/-0μm, Concentricity:≤1.0μm | 127μm, Concentricity:≤1.4μm |
| Ferrule holes | MT-RJ:2 fiber;MPO:4,6,8,12,24-fiber |
