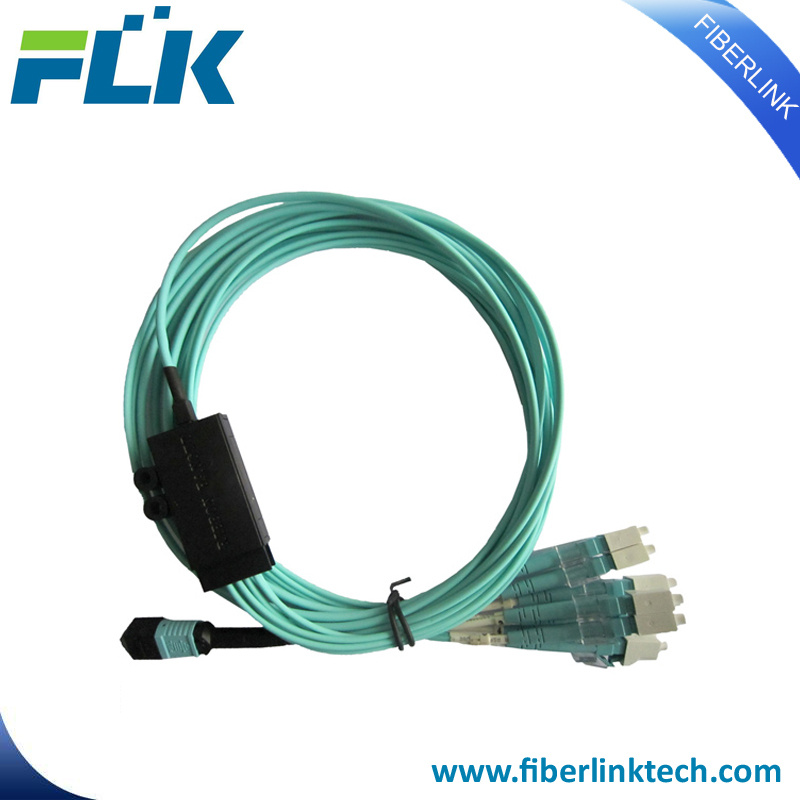

MPO Fiber Optic Patch Cable with Fan-out
| Price: |
US $ 0.1-9.99/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPO fan out assemblies |
| Polishing Connector: |
MPO Female (Sm),MPO Female (mm) |
| Fiber Cable Type: |
Sm: G652D or G657A; mm: Om1, Om2,Om3,Om4 |
| Cable Jacket: |
Ribbon / Fan-out (LSZH / PVC) |
| Patch Cord Pull-out Force: |
5n |
| Cable Color: |
Yellow, Orange, Aqua |
| Transmission Medium: |
Multimode |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
MTP/MPO Fan out Cable Assemblies |
| Connector Type: |
MTP/MPO Trunk Cable Assemblies |
Product Description

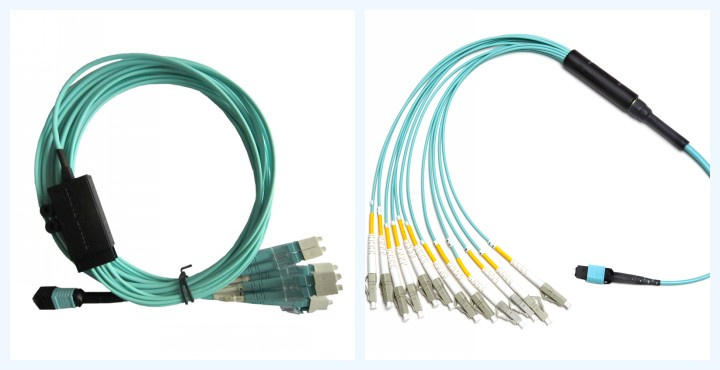

MPO Fiber Optic patch Cable with Fan-out
Fiberlink MTP/MPO Fan-out Cable Assemblies are designed for high density applications with require high performance and speedy installation. MTP/MPO fan-out assemblies are numbered for full traceability. Available in 12 core configuration, these space saving assemblies comes with either MTP Male or MTP Female Connectors on one end and LC, SC, FC, or MT-RJ Connectors on the other end. They are available in 4, 6, 8, or 12 fiber ribbon configurations.
Features
Transition from Trunk Backbone to Fiber Rack
12 Cores Configuration (Custom Order Option)
MPO fan-outs numbered for traceability
·est Report with each assembly
Cable terminated in high density MTP/MPO connectors
Available in 12 fiber and 24 fiber configurations
Applications
Data communication applications
Data Centre infrastructure
Storage Area Network-Fiber Channel
Emerging 40 and 100Gbps Protocols compatible
MTP/MPO Side Technical Specifications| Specification | SM STANDARD | MM STANDARD |
| MPO | Typical | Max | Typical | Max |
| Insertion Loss (IL) | 0.20 dB | 0.70 dB | 0.15 dB | 0.50 dB |
| Return Loss (RL) | 60dB (8° Polish) | 25dB (PC Polish) |
| Durability | < 0.3 dB after 500 mating cycles | < 0.2 dB after 500 mating cycles |
| Ferrule Type Available | 4, 8, 12, 24 | 4, 8, 12, 24 |
| Operating Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+80°C |
Fan-out Side Technical Specifications| Specification | Single Mode PC | Single Mode APC | Multi-mode |
| Insertion Loss (IL) | < 0.3 dB | < 0.3 dB | < 0.3 dB |
| Return Loss (RL) | > 50 dB | > 60 dB | N/A |
| Operating Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+80°C |

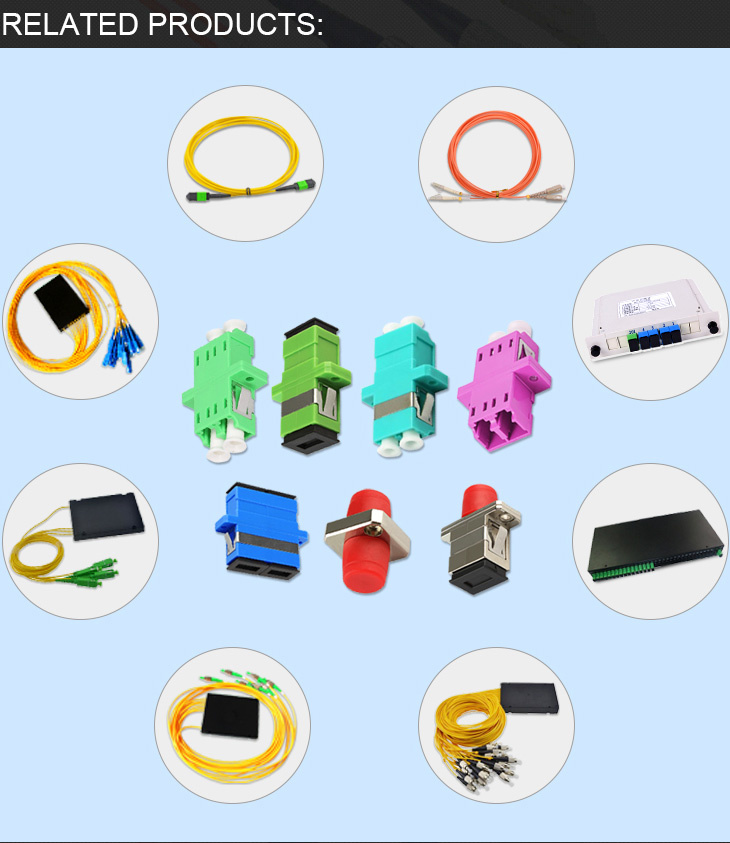

Related products

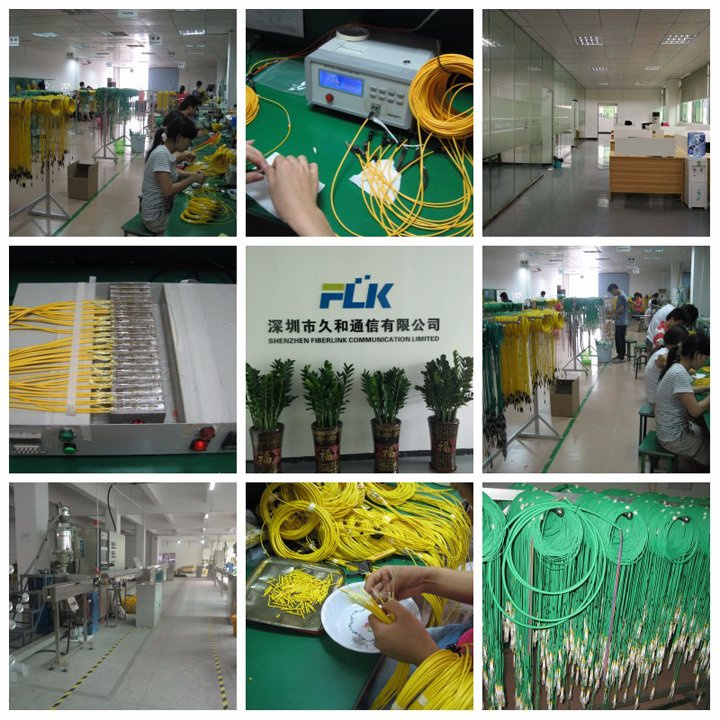

Our fiber patch cord production line:

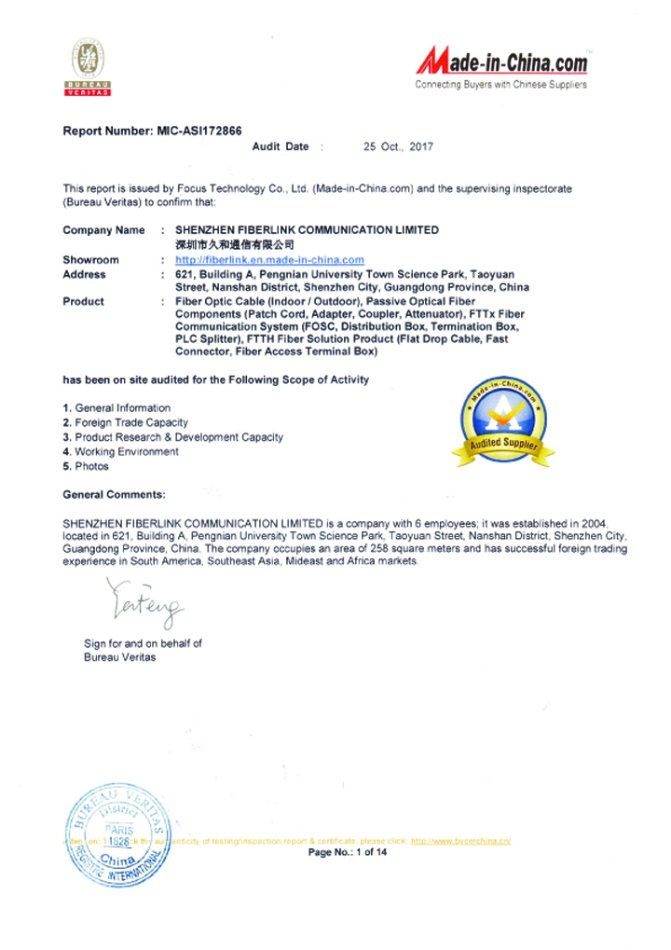

Certifications
