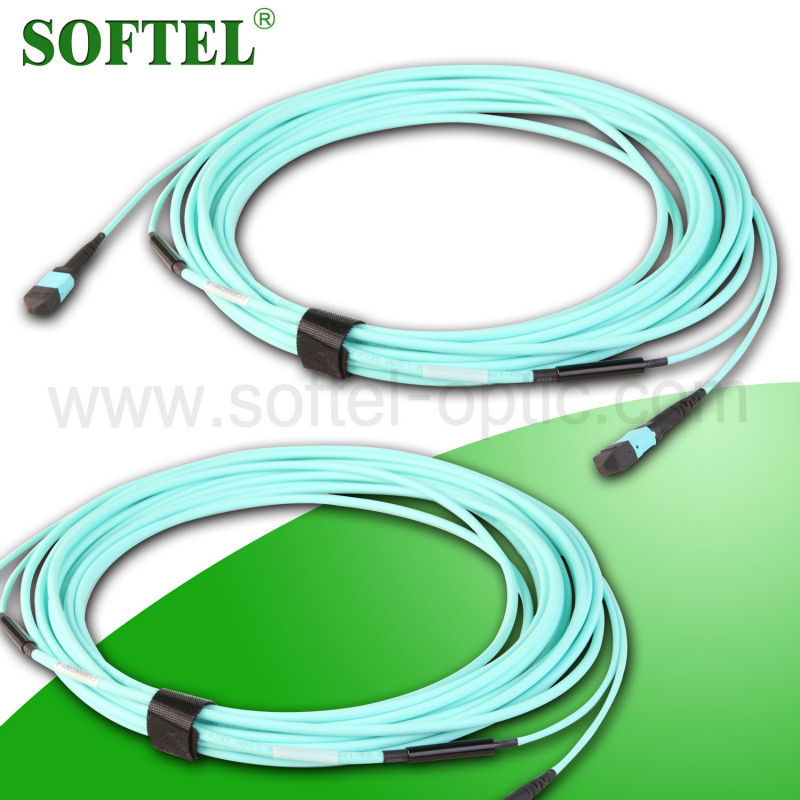

MPO Fiber Optic Patch Cord

Prod Model:	MPO
Patch Cord Dia:	0.9mm, 2.0mm, 3.0mm
Working Temperature:	-20°c~+60°c
Patch Cord Length:	0.8m or up to Customer
Type:	Pre-Terminated Patch Cord
Connector:	Sc, FC, LC
MPO Capacity:	12-144core
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Shape:	Fan out

Product Description

MPO Pre-terminated cabling system solution

Custom made for you by SOFTEL. It is custom made for your datacenter and other high-end cabling solution with pre-termination MPO.

SOFTEL MPO adopts Corning CLearCurve series OM3/OM4 fiber cable, plus the connectors from US Connector MTP products. All the production is done in SOFTEL factory facility to ensure the system performance and quality.

Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as future maintenances and services. With the universal system and MPO interface, it will provide trouble-free connection between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliability.

Product line construction
SOFTEL pre-terminated MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).

Characeristics
1.12-fiber MPO(M) to LC duplex connector
2.All metal compact breakout protector, leading internal crimp process, most reliable.
3.LC end with number tube label, easy identification.
4.Available in G and L class help your budget control.
5.Available divider type or join type LC duplex.

Pre-terminated system installation

In order to ensure entire connection is in a unify condition, we need to first install patch panel, cassette module and related mounting hardware. Then, say the cables in designed cable passage position, remove all the protection caps and wraps, connect MPO and to all the related MPO sockets, mount and secure the cables with cable ties, simple as that.

Installation steps

1. Install accessories and hardware
2. Cable laying
3. Plug device
4. Cable mounting
6.All length cable is available based on your demand.


Parameters

		Multi Mode	Single Mode
IL	MPO	Single max :0.35db (L)                      Single Max : 0.60db (G)	Single max :0.35db (L)                                    Single max :0.75db (G)
	LC	MAX :0.10dB(L)                     MAX :0.15 db (G)	max :0.30db
RL	MPO	>20DB	>60DB (8 degree Angle Polish )
	LC	>30db	>50 db (UPC)     >60DB(APC)
Mechanical	MPO	<0.2DB, 200 times insertion
	LC	<0.2db, 500times intertion
	Working Temp	-20~ +60 'C
Enviromental	Storage Temp	-40~ + 70'C
	Install Temp	-5~ + 50'C
