MPO Fiber Optical mm Loopback for FTTH

Name: MPO Fiber Optical mm Loopback for FTTH
Brand: all-electronics-online.com
SKU: 838404985
Availability: InStock
Rating: 5 (101 reviews)

Price:	US $ 22-25/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MM MPO LOOPBACK
Transmission Medium:	Multimode
Structure:	MT
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Fabrication Process:	Assembling
Application:	Data Center Connecting
Connector Type:	MPO
Brand:	Senko

Product Description

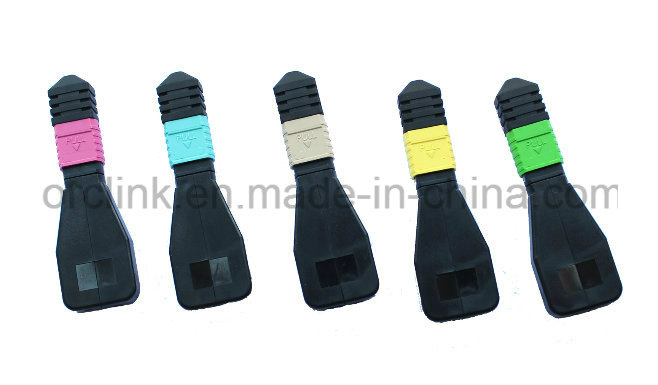

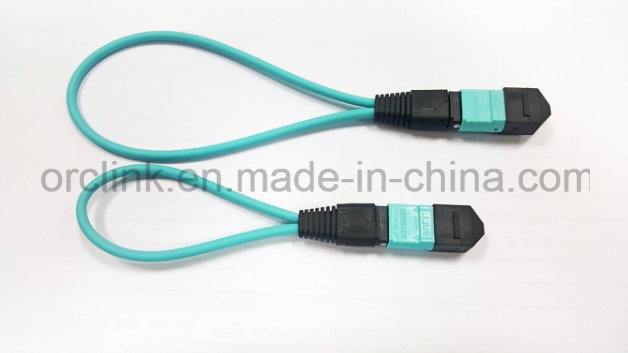

MTP/MPO Loop Back is a removable component Which used for equipment Loop test and optical modules self-examination. ORC's provides MTP/MPO loopback assemblies, which can pass rigid optical, mechanical, environmental test based on the GR-1435 requirements. And also complies with RoHS compliant.

Features
High performance in IL&RL
100% pre-terminated tested
8F,12F,16F, 24F or customized
SM,OM1,OM2,OM3,OM4 or customized
Compliance GR-1435-CORE Compliant
Compliance with UL 94-ailable
Compliance with V0 compliant
RoHS compliant

Application
Optical Equipment Test
Optical Modules Test
Cable loopback inspection
Telecommunication Network

Optical Performance
Item		Parameters
MTP/MPO Connector		SM (1310nm/1550nm)		MM (850nm)
		Standard	Low Loss	Standard	Low Loss
Insertion Loss	Typical	0.50dB	0.20dB	0.50dB	0.20dB
	Maximum	0.70dB	0.35dB	0.70dB	0.35dB
Return Loss		≥60dB for APC		≥20dB for PC
		≥40dB for PC		--
Male/Female		Male: with Pins, Female: without Pins

MT
Measurement			Pass/Fail Limits
Parameters			Min	Max
Radius of Curvature	Long Axel		2000mm	∞
	Short Axel		50mm	∞
Angle	Long Axel		-0.2°	0.2°
	Short Axel	APC	7.8°	8.2°
		PC	-0.2°	0.2°
Fiber Height			1000nm	3000nm
Different Fiber Height			N/A	500nm
Adjacent Fiber Height			N/A	300nm
Ferrule Length			7.9mm	N/A

Optic river communication Ltd (ORC), established in 2009, is a leading manufacture and supplier of cable fiber optic interconnect products in China with advanced manufacturing capabilities. Located in Shenzhen, the biggest special economic zones in China, ORC designs and manufactures fiber optic connectivity and cabling products utilized in datacom, telecom and FTTX networking. We not only offer a complete line of superior quality products, but also work with our customers to develop new formulas and address the burgeoning market.

Our main products as below:

Data Center Solution:

1. Data center cabling: MPO/MTP trunk cable, Fan-out cable, Pre-terminated cable

2. Data center cable management: MPO/MTP Rack/Cassette/Cabinet

FTTX Solution:

1. FTTX cabling: Cable, Patchcord, Pre-terminated Cable

2. FTTX Components: PLC splitter, Fused Biconic Coupler

3. FTTX system: ODF, cabinet, ONU, OLT

High Speed Module Packaging:

1. MT series: AOC, MT-MT, MT-Ferrule, MT-FA etc.

2. Free Space Isolator

4CH AWG packaging.

With the rapid development over the past years, ORC has won widespread praise and recognition of customer satisfaction. Aim to high quality, superior reliability and strong sustainability for the products, ORCorc has passed the most rigorous tests, including GR326, GR1435, GR1209 by Telcordia, RoHS compliance, and ISO9001: 2008 certification as well.
