MPO-MPO Singlemode 12 Fibers MTP Fiber Optic Patch Cord

Name: MPO-MPO Singlemode 12 Fibers MTP Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 702534742
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO-MPO SM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Length:	1m,2m,3m,5m or Customized
Product:	MPO-MPO Singlemode Fiber Optic Patch Cord
Connectot:	MPO/MTP
Insertion Lose:	0.5dB
Cable Type:	3.2mm
Reture Loss:	50dB
Operating Temperature:	-40~75 Degree
Test Wavelength:	1310 or 850
Application:	Communication
Type:	Single-mode Fiber
Certification:	CE
Connection Structure:	MPO
Sheath Material:	Lszh

Product Description

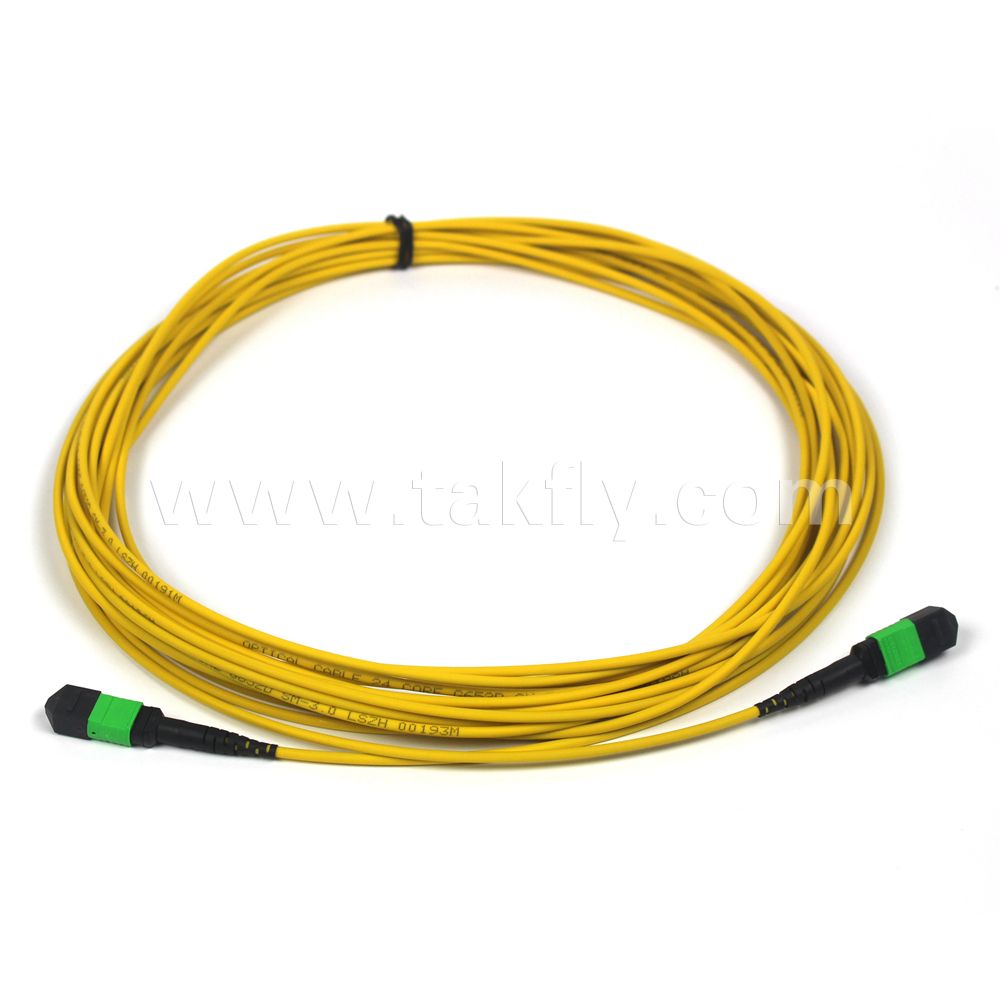

MPO-MPO Singlemode 12 fibers MTP Fiber Optic Patch Cord

Model Number: MPO Singlemode
Inserion Loss: ≤ 0.5dB OM3 ; ≤ 0.6dB SM OS2

Connector-Type: High connectivity MPO

Cable type: 3.2 mm round LSZH jacketed cable

Connector End face: MPO end face geometry requirements: EN50377-15-1

Polishing Quality:: Polished end-face quality: IEC61300-3-35

Our MPO patch cables are designed for data center solutions supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
ISO/IEC 24764.

MPO Detail:

MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active
equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of
the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

MPO patch cables are available in multi-mode and single-mode fiber cable.

Applications :

Disaster Recovery

Backbones

Building Fiber Optic Distribution

Quick setup of new wiring hubs

Warehouses

Performance of Assemblies MTP / MPO Termination:

Type/Performance	Singlemode(APC polish)		Multimode(PC / Flat Polish)
	Standard	Elite Low Loss	Standard	Elite Low Loss
Maximum Insertion Loss	≤ 0.75dB	≤ 0.35dB	≤ 0.60dB	≤ 0.35dB
Return Loss	≥ 50dB		N/A
Operating Temperature	-40°C to 80°C		40°C to 80°C
Test Wavelength	1310nm		850nm

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
