MPO/MTP Fiber Optical Attenuators 5dB Ark

Name: MPO/MTP Fiber Optical Attenuators 5dB Ark
Brand: all-electronics-online.com
SKU: 801173875
Availability: InStock
Rating: 4.6 (45 reviews)

Price:	US $ 70-75/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO(MTP)-attenuator
Return Loss:	60dB(8c, Polishing, Sm)
Operation Wavelength:	1310/1550nm
Attenuation Tolerance:	1dB( at 2-10dB), 10%( at 11-20dB)
Operating Temperature:	-25c~75c
Attenuation:	1~20dB
Jacket Color:	Black&Green
Jacket Material:	PVC
Certificate:	Tlc,ISO9001,SGS,Reach,RoHS,IEC
Transmission Medium:	Single-Mode
Number Of Cores:	Multi-Core
Ferrule Endface:	APC
Structure:	MPO
Connector Type:	MPO

Product Description

Description:

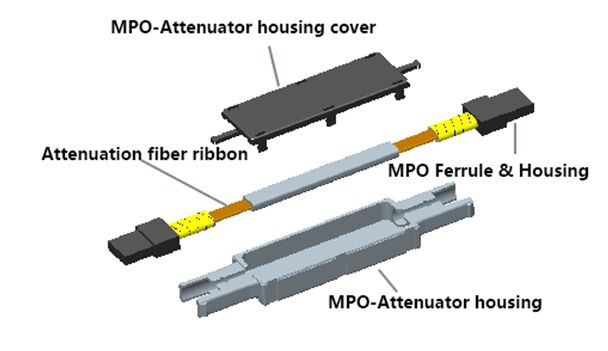

Aak MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS

Features:
High Stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/male type of MPO/MTP connector)
RoHS Compliant

Applications:
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols

Specifications:

Parameter	Conditions
Operation Wavelength	1310/1550nm
Attenuation Tolerance	±1dB( at 2-10dB), ±10%( at 11-20dB)
Return Loss	60dB(8°Polishing, SM)
Operating Temperature	-25C~75ºC
Attenuation	1~20dB

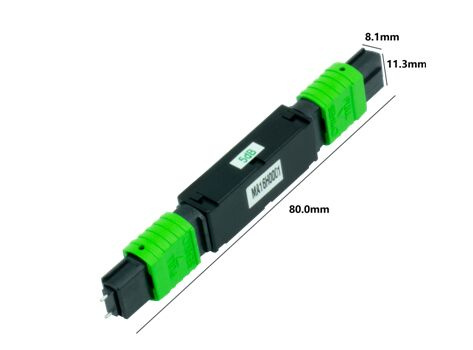

Housing Dimension	Height 8.1 mm/Length 80.0mm/Width 11.3mm

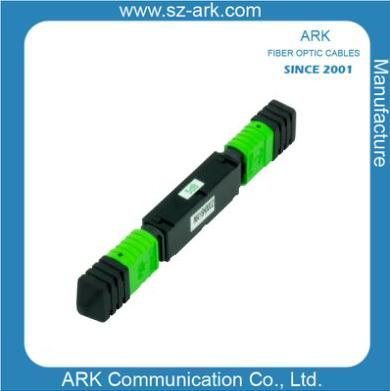

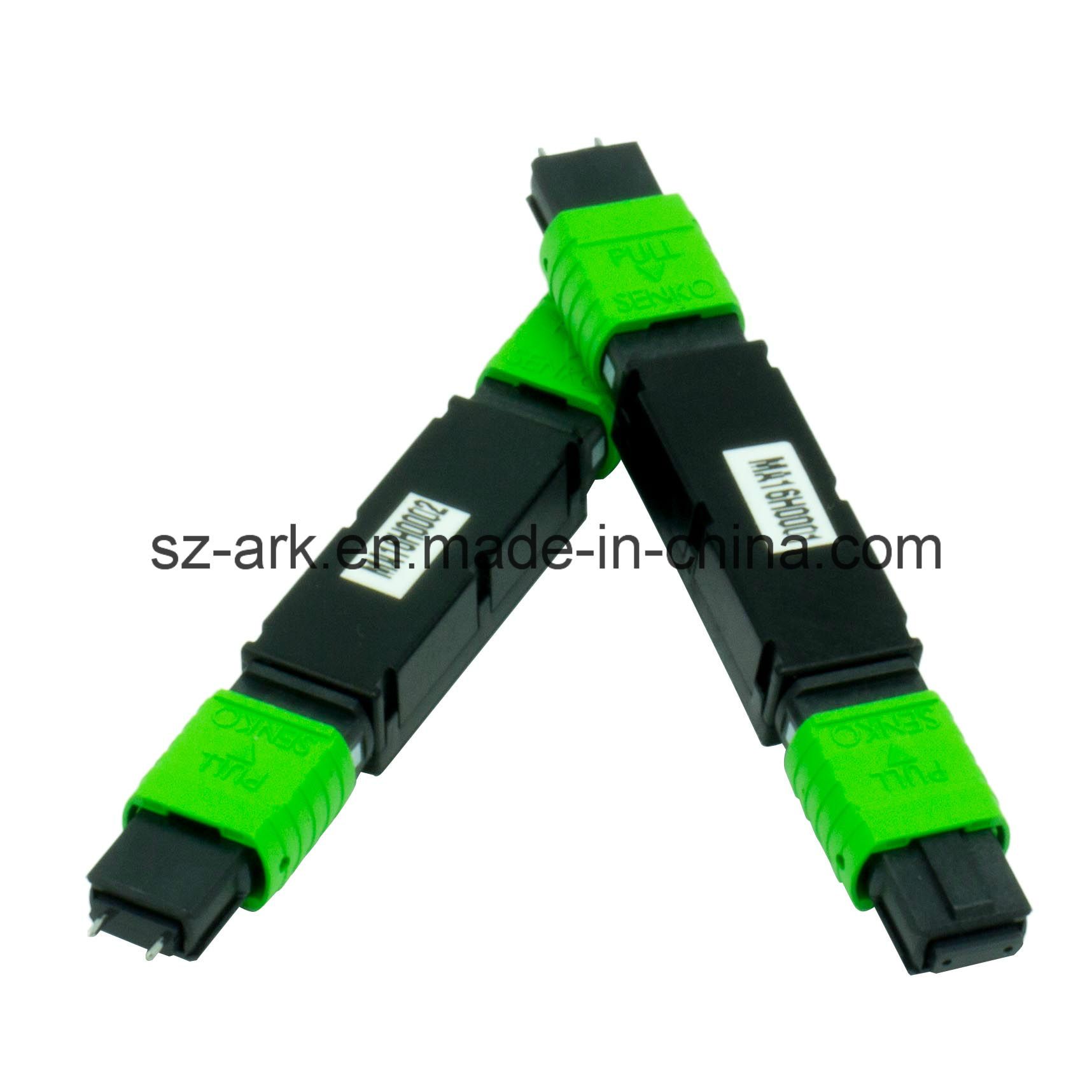

Pictures:

Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About ARK

Operating since 1998
Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/MM fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.

Providing OEM and Training Services
Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.

Thank you for viewing!
Please feel free to contact us if you have any questions!
