MPO/MTP Sm/Om3/Om4 Fiber Optic Cable Patchcord for FTTH Networking
| Price: |
US $ 0.1-9.99/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPO patchcord |
| Polishing Connector: |
MPO Female (Sm),MPO Female (mm) |
| Fiber Cable Type: |
Sm: G652D or G657A; mm: Om1, Om2,Om3,Om4 |
| Cable Jacket: |
Ribbon / Fan-out (LSZH / PVC) |
| Patch Cord Pull-out Force: |
5n |
| Cable Color: |
Yellow, Orange, Aqua |
| Transmission Medium: |
Multimode |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Structure: |
MTP/MPO Patch Cord |
| Connector Type: |
MTP/MPO Patch Cord |
Product Description

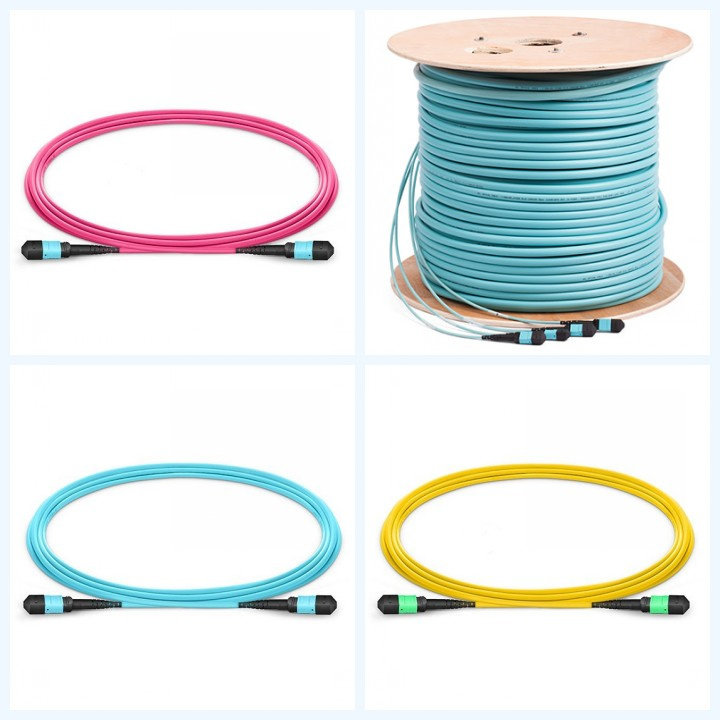

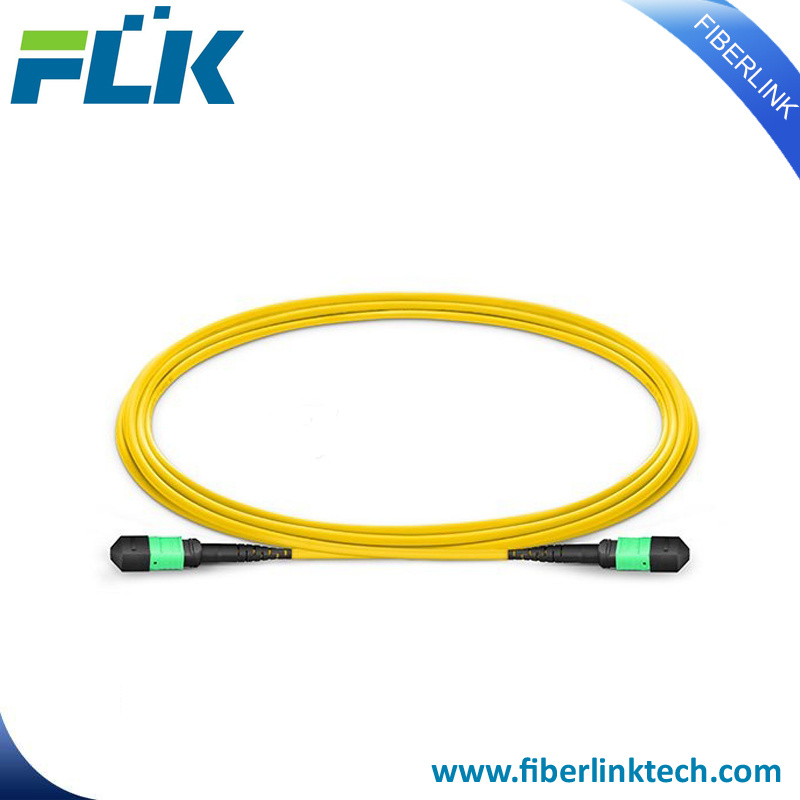

MPO/MTP SM/OM3/OM4 Fiber Optic Cable Patchcord For FTTH Networking
Descriptions
Fiberlink MTP/MPO patch cord Assemblies are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. These plug and play solutions uses micro core cable to maximize bend radius and minimize cable weight and size. MPO/MTP Trunk Cable are factory pre-terminated, tested and packed along with the test reports. Available in 12 core configuration, these space saving assemblies comes with either MTP Male or MTP Female Connectors on both the other end. They are available in lengths of 5, 10, 20, 50, 100 meters, custom lengths are available on request. MPO/MTP Trunk Cables are available in Single mode, Multimode OM1, OM2, OM3 or OM4 with LSZH or PVC Jackets.
Features
High Density Back Bone Cabling
Pre-terminated at Factory
Plug and Play, Speedy Installation
No onsite termination
65 - 75% space reduction
MTP 12 Core Connector on both ends
Test Report with each assembly
Optical Specifications| Polishing Connector | MPO Female (SM) | MPO Female (MM) |
| Insertion Loss (IL) | < 0.50 dB | < 0.50 dB |
| Return Loss (RL) | > 50dB | > 35dB |
| Mating Cycles Delta IL | < 0.2 dB after 500 mating cycles |
| Fiber Cable Type | Single mode: G652D or G657A;
Multimode: OM1, OM2, OM3 OM4; |
| Cable Color | Yellow for SM G652 and G657A fiber;
Orange for MM OM1 and OM2 fiber;
Aqua for MM OM3 fiber; |
| Cable Jacket | Ribbon / Fan-out (LSZH / PVC) |
| Patch Cord Pull-out Force | 5N |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -40°C~+80°C |
Bare Fiber Colors| No | 8 Ribbon fiber | No | 12 Ribbon fiber |
| 1 | Blue | 1 | Blue |
| 2 | Orange | 2 | Orange |
| 3 | Green | 3 | Green |
| 4 | Brown | 4 | Brown |
| 5 | Gray | 5 | Gray |
| 6 | White | 6 | White |
| 7 | Red | 7 | Red |
| 8 | Black | 8 | Black |
| | Yellow | 9 | Yellow |
| | Violet | 10 | Violet |
| | Pink | 11 | Pink |
| | Aqua | 12 | Aqua |
Order Informations| P/N | Descriptions |
| FL-MPOF-MPOF-12F-S62 | MPO-MPO Trunk cable patch cord, OS2 (G652D), 12 fibers, 10m Yellow |
| FL-MPOF-MPOF-12F-S67 | MPO-MPO Trunk cable patch cord, SM (G657A), 12 fibers, 10m Yellow |
| FL-MPOF-MPOF-12F-OM1 | MPO-MPO Trunk cable patch cord, OM1 (62.5/125um), 12 fibers, 10m Orange |
| FL-MPOF-MPOF-12F-OM2 | MPO-MPO Trunk cable patch cord, OM2 (50/125um), 12 fibers, 10m Orange |
| FL-MPOF-MPOF-12F-OM3 | MPO-MPO Trunk cable patch cord, OM3 (50/125um), 12 fibers, 10m Aqua |
| FL-MPOF-MPOF-12F-OM4 | MPO-MPO Trunk cable patch cord, OM4 (50/125um), 12 fibers, 10m Aqua |
Related products
Our fiber patch cord production line:

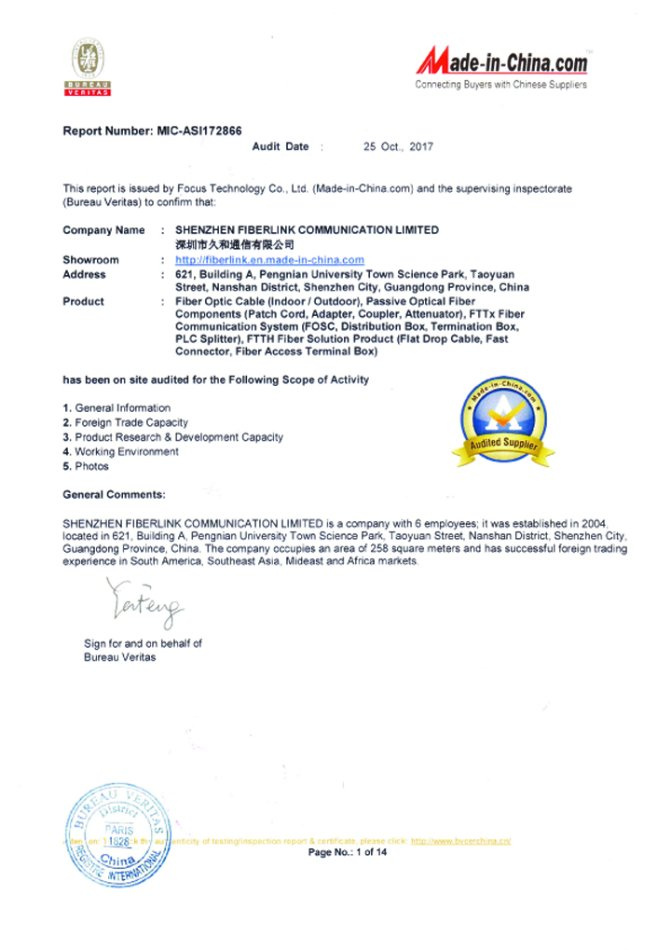

Certifications
