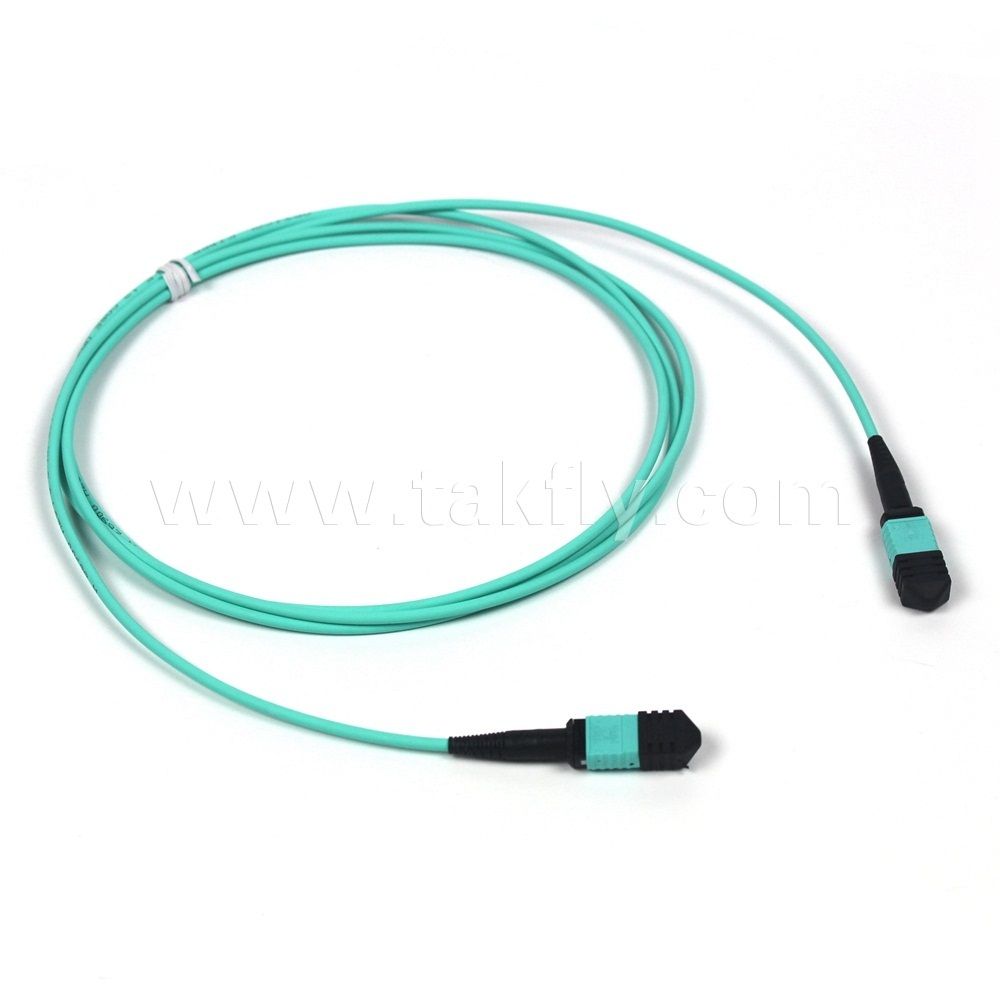

MPO Om3 Fiber Optical Patch Cord/Fiber Patch Cord

MPO Om3 Fiber Optical Patch Cord/Fiber Patch Cord
Price: US $ 0.9-19.9/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: MPO fiber patch cord
Length: Customized Design
Certification: RoHS, Ce, ISO9001, CCC
Business Type: Manufacturer&Trading
Item Name: 12 Cord MPO Fiber Patch Cord
Transmission Medium: Multimode
Number Of Cores: Multi-Core
Ferrule Endface: APC
Connector Type: MPO
Structure: MPO-MPO/MTP-MTP

Product Description

12 Fibers MPO-MPO/MTP-MTP Fiber Patch Cord/Fiber Optic Patch Cord

Characteristic:
Module optical fiber connections to the torsion of the sequence
Can provide data center and SAN System, simple and flexible
MPO trunk connector fixed on the back of module
The standard 19" can be installed on any cabinet
Convenient to be installed, moved and added


Main application:
Datacenter rack mount patch panel
Connection between trunk cables to patch cords


Pre-terminated system installation:
In order to ensure entire connection is in a unify condition, we need to first install patch panel, cassette module and
Related mounting hardware.Then, say the cables in designed cable passage position, remove all the protection caps and wraps,
Connect MPO and to all the related MPO sockets, mount and secure the cables with cable ties, simple as that.


Installation steps
1.Install accessories and hardware
2.Cable laying
3.Plug device
4.Cable mounting

Parameter:

  Multi ModeSingle Mode
ILMPOSingle max :0.35db (L)                      Single Max :0.60db (G)Single max :0.35db (L)                                    Single max :0.75db (G)

RLMPO>20DB>60DB (8 degree Angle Polish )

MechanicalMPO<0.2DB, 200 times insertion

 Working Temp-20~ +60 'C
EnviromentalStorage Temp-40~ + 70'C
 Install Temp-5~ + 50'C

Order Information:
CODECONNECTORCABLE SIZEFIBER TYPECABLE TYPEFIGURE
H021.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex
1.0.9
2.2.0
3.3.0
1.9/125
2.OM3
3.50/125
4.62.5/125
1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH
1.Blue
2.Beige
3.Green
4.Black
5.Blue and Yellow
6.Red and Black

Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice

Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB / C&F

Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement

Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, ETC.
3.Please make sure your postal address is correct. Any lost and mistakes because  of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
