MPO Optci Fiber Loopback

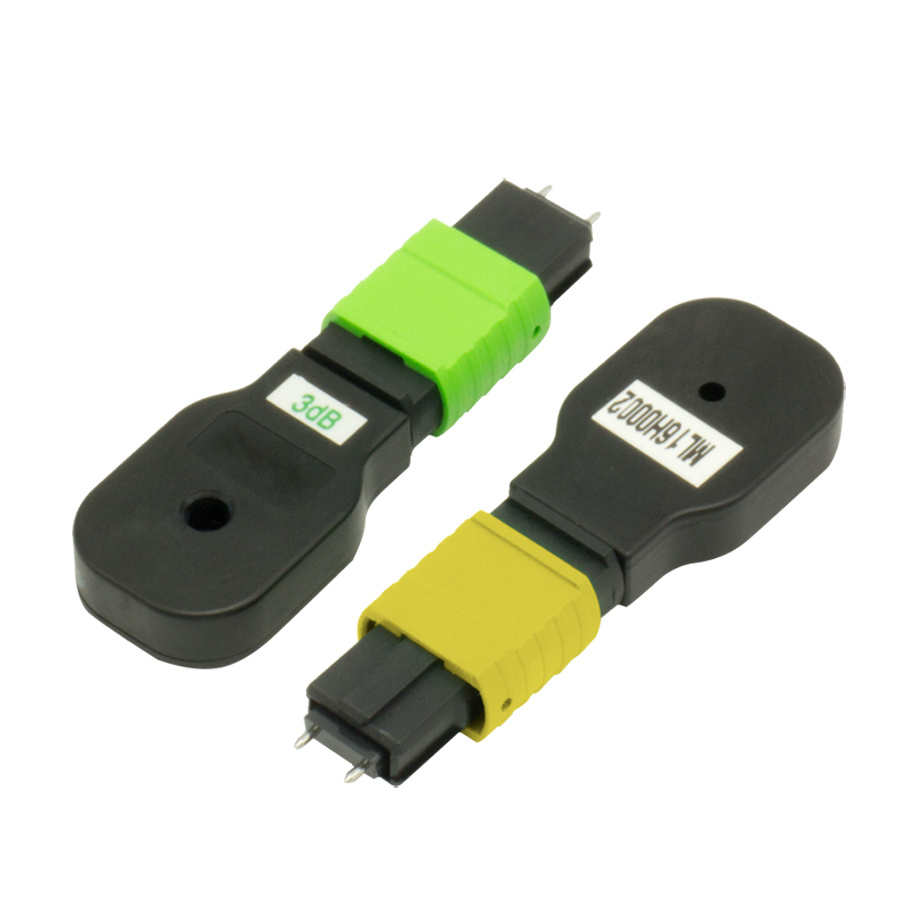

Name: MPO Optci Fiber Loopback
Brand: all-electronics-online.com
SKU: 801086505
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 0.65-0.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO
Cable Diameter Szie:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Boot Color:	Blue, Green, Beige,Aqua, Black, White, Red
Housing Material:	Plastic
Housing Color:	Blue, Green, Beige, Aqua,Black
Application:	Communication
Type:	Single-mode Fiber
Certification:	RoHS
Connection Structure:	MPO
Brand:	Koc
Sheath Material:	PVC LSZH

Product Description

Description
MPO Loopback is used for network, or optical link test, all 40/100G network.
The MPO Loopback which strictly complies with the RoHS, not only meets the criteria of both TIA/EIA 604-5 and IEC 61754-7, but also provides compacted spec for a test of Burn in and network component.

Features
Small / Compact Housing Design
QSFP Available
RoHS Compliant

Applications
Data Center Infrastructure
Parallel Optics
Storage Area Network and Fiber Channel
40G and 100Gbps Protocols

Specifications

Parameter	Conditions
Operation Wavelength	1310/1550nm
Attenuation Tolerance	±1dB( at 2-10dB), ±10%( at 11-20dB)
Return Loss	60dB(8°Polishing)
Operating Temperature	-25ºC~75ºC
Attenuation	1~20dB(SM 1310/1550 nm)
Housing Dimension	Height 5.9 mm/Length 25.3mm/Width 16.2mm

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
