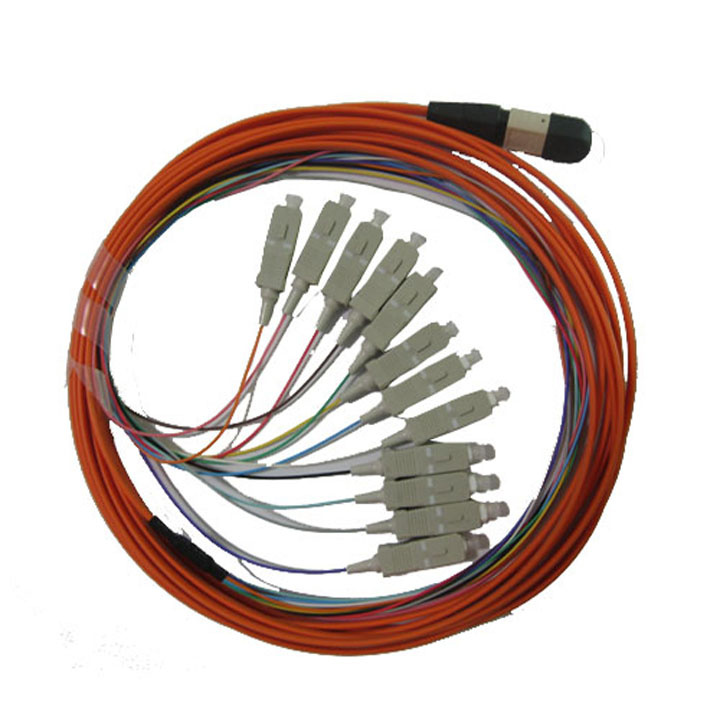

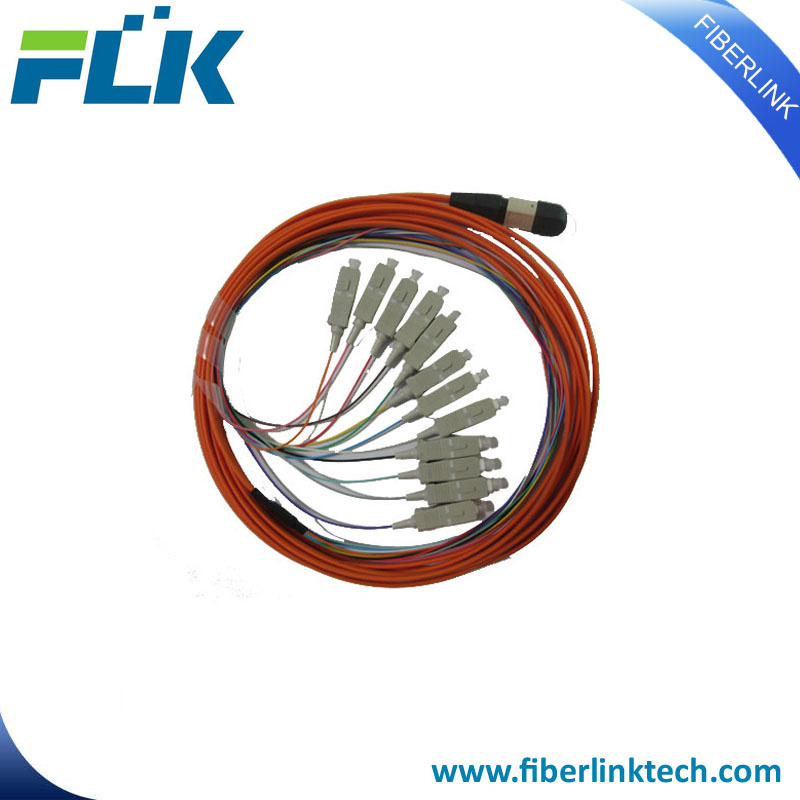

MPO-Sc Fiber Optic Jumper Assembly Patch Cord

MPO-Sc Fiber Optic Jumper Assembly Patch Cord
Price: US $ 1-10/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: Fiber Optic Patch cords
Application: Communication
Type: Multi-mode Fiber
Certification: ISO9001
Connection Structure: MPO-Sc
Core: Simplex or Duplex
Sheath Material: LSZH

Product Description




Descriptions

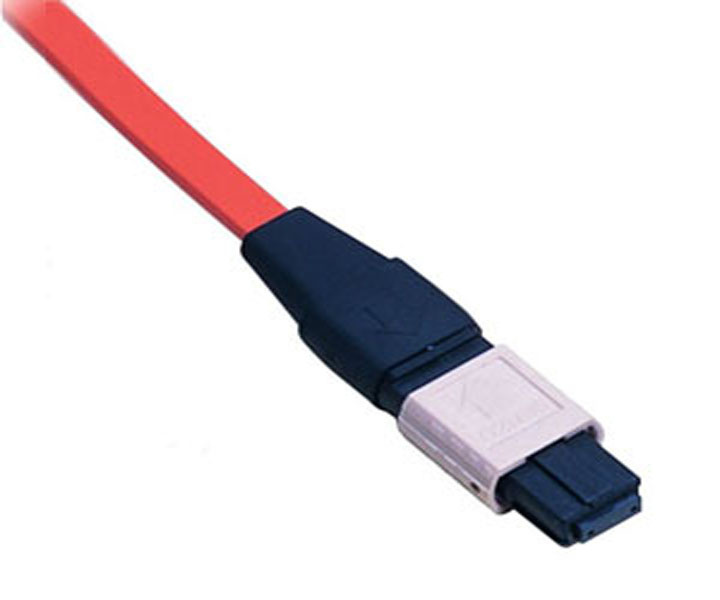

MPO patch cord is a multi-fiber patch cord with fiber count of 4, 8 or 12. MPO patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating.

Features
Simplex or Duplex fiber optic patch cord assemblies optional
Low insertion loss and high return loss according to international standard
Cable lengths and cable types optional, Riser and Plenum, OFNR, OFNP rated type cable optional
PC or UPC or APC termination types fiber optic patch cord & fiber optic jumpers


Applications
Connection of optical transmission equipments and devices
Telecom and datacom applications


Specifications
TypesSingle modeMulti mode
Diameter (mm)Ф0.9, Ф2.0, Ф3.0
Fiber cable4, 8, 12 cores are available
Operating Wavelength1310, 1550nm
Insertion Loss (dB) ≤ 0.3 (PC)
 ≤ 0.3 (UPC)
 ≤ 0.3 (APC)
≤ 0.5 (PC)
 ≤ 0.5 (UPC)
Return Loss (dB)>= 45 (PC)
 >= 50 (UPC)
 >= 60 (APC)
>= 35 (PC)
 >= 40 (UPC)
Exchangeability ≤ 0.2 dB
Repeatability≤ 0.2 dB
Operating Temperature-40 to +75 ºC
Storage Temperature-40 to +85 ºC
Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
