MPO Singlemode 12 Fibers Optical Connectors

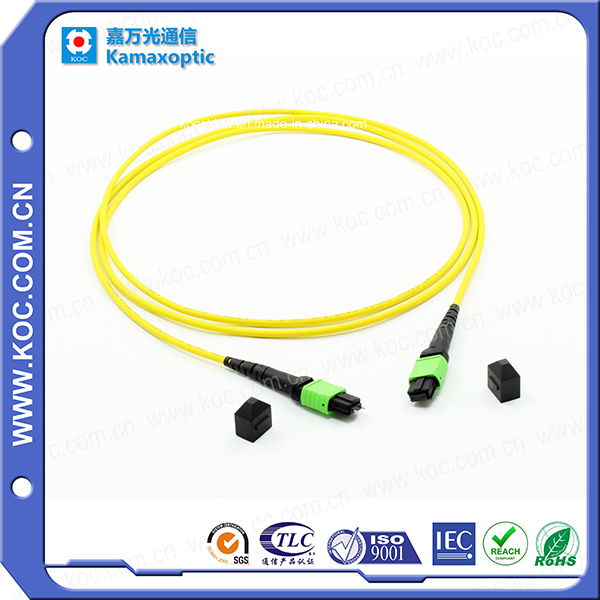

Name: MPO Singlemode 12 Fibers Optical Connectors
Brand: all-electronics-online.com
SKU: 777113805
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 6.2-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	mpo sm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insertion Loss:	0.3dB
Cable Szie:	0.9mm or 2.0mm
Boot Color:	Black
Mode:	Singlemode, Multimode
Core:	Duplex
Transmission Medium:	Single-Mode
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Structure:	MPO/MTP
Connector Type:	MPO/MTP
Brand:	Koc

Product Description

Competitive price and good performance of MPO connector from KOC.

FEATURES
IEC 61754-7 Compliant
Compact design, up to 24 fiber ribbon
Polishing does not require diamond film
High precision guide pins for exact alignment
Precision molded MT ferrule
Telcordia GR-1435-CORE compliant
Low IL reflection loss

APPLICATIONS
CATV, and Multimedia
Gigabit Ethernet
Industrial and medical
Active device interface
Premise installations
Interconnection for O/E modules
Data processing networks
Telecommunication networks
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

AVAILABILITY
MPO with bare fiber ribbon
Ribbon cable BOOT and ∮3.0mm cable BOOT are available.
MTP connector is available.
MPO male and female connectors are available, multimode or single mode.
SPECIFICATIONS

ITEM	Parameter
ITEM	Single-mode(APC)	Multi-mode(PC)
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.50dB,Max≤0.70dB	typical≤0.40dB,Max≤0.50dB
Return Loss	APC≥50.0dB	/
Durability	≤0.30dB typical change,200 mating
Operating Temperature	-20ºC to +70ºC
Ferrule Specification	125.0+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤1.4μm
Ferrule holes	4,6,8,12,24-fiber

note: the price is for MPO SM 12 fiber connector kits only8

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
