| Prod Model: |

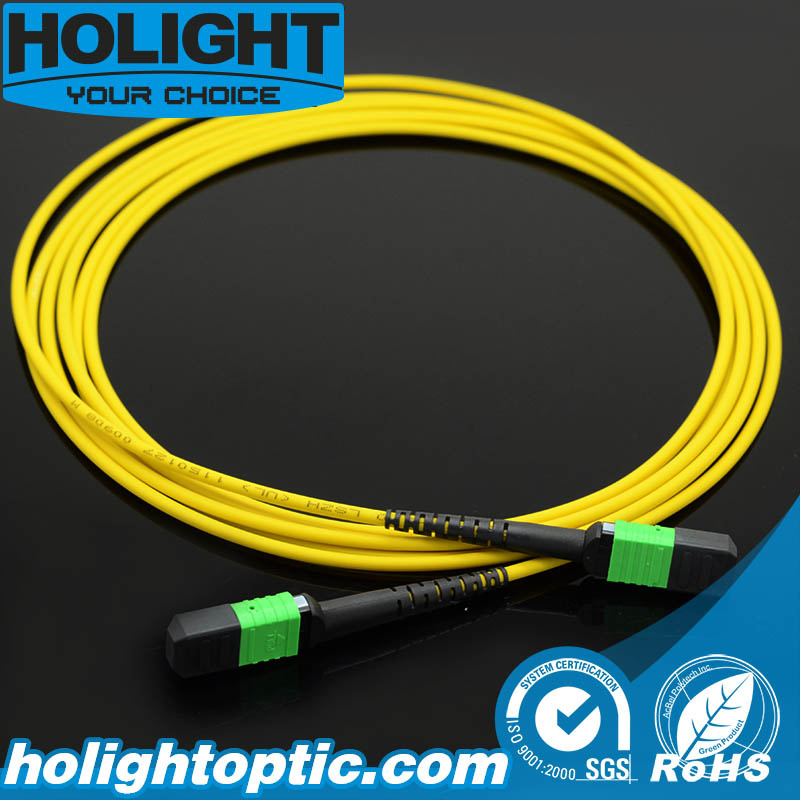

12 Core MPO/MTP SM Optical Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Optical Fiber Patch Cords |
| Fiber: |
G652D, G655, G657A1, G657A2 |
| Connector Type: |
Sc, LC, FC, St, MTRJ, Mu, SMA, E2000, DIN |
| Warranty: |
Three Years |
| Insertion Loss: |
Lower Than 0.5dB |
| MOQ: |
No Demand |
| Lead Time: |
One Week |
| Application: |
Communication |
| Type: |
Single-mode Fiber |

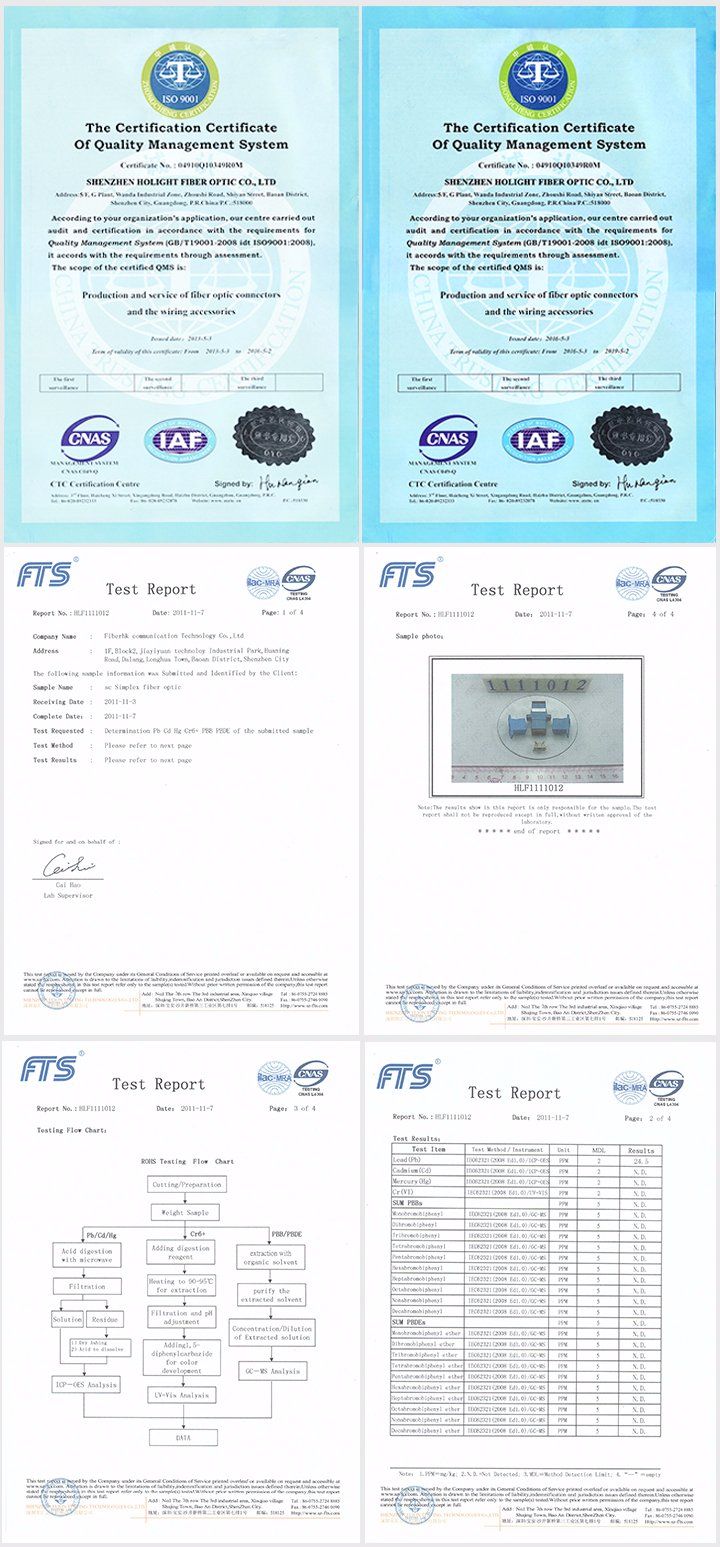

| Certification: |
CCC |
| Connection Structure: |
MPO-MPO |
| Brand: |
Senko |
| Sheath Material: |
PVC, LSZH or Ofnp |
Product Description
MPO/MTP Fiber Optic Patch CordsMPO/MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.
· The data centra application with high dense degree environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP .
MPO/MTP trunk cables are used to interconnect cassettes, panels or ruggedized MPO fan-outs, spanning MDA, HAD and EDA zones, and easy to rapid deployment of high density backbone cabling in data centers and other high fiber environments reducing network installation or reconfiguration.
· MPO/MPT trunk cables using a compact and rugged microcable structure, according to different colors divided into SM, MM and 10G MM. The fiber ranges from 12 to 144, MTP polarity options are TIA way is Style A(up), Style B(down) and Style C(up/up). The cable length belongs to a custom product, please kindly email your requirements to us!
Features· With 12-fiber and 24-fiber MPO/MTP connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
· 100% factory tested
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling fiber.
Pre-terminated MPO/MTP Technology-PolarityThe three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

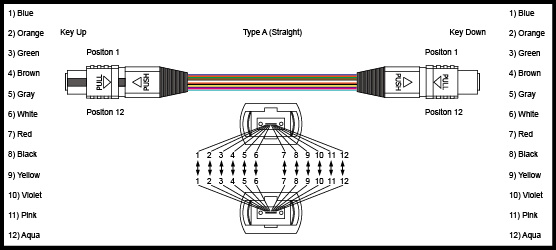

Type A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x A to A Duplex Patch Cable.

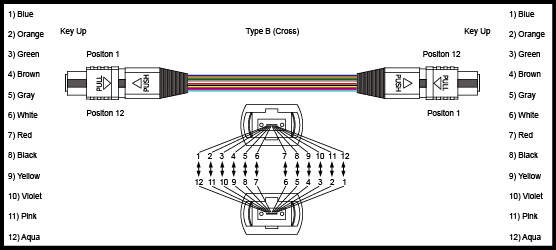

Type B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x A to A Duplex Patch Cable.

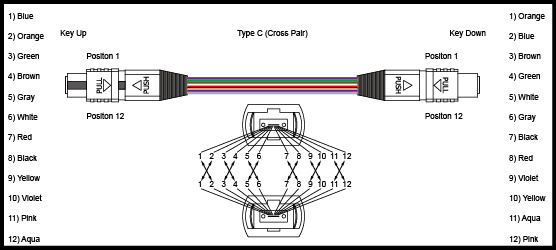

Type C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x A to A Duplex Patch Cable. | MPO/MTP Termination |
| Type | Single mode(APC polish) | Multi mode(PC polish) |
| Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. |
| Fiber type | G652D, G657A1 etc. | OM1, OM2, OM3, OM4 etc. |
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35dB |
| Return Loss | ≥55 dB | N/A |
| Working Temperature | -40ºC ~ 80ºC | -40ºC ~ 80ºC |
| Test Wavelength | 1310nm | 850nm |
| All MM SM shall be tested for IL |
Above performance refers to Optic standard grade performance, flexible specification is available to fit for different installation needs.
Above data sheet is an example, just for your referance.

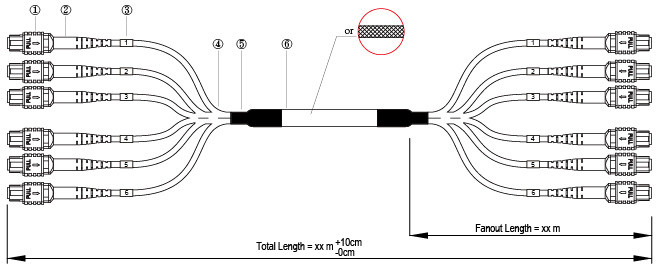

MPO/MTP Female connector Φ3.0mm Boot Number Label Φ3.0mm Tubing - within 12 Fibers Heat Shrink Tubing Fiber cable * Remark: · The default diameter of is Φ3.0mm.
· The default color of the single mode MPO connector is Green.
· The diameter of branch cable could be choosen as 0.9mm,2.0mm.
· We can also custom the pulling eyes, welcome to contact us if you need.
Cable Color:Standard trunk cables: OS1/2-yellow, OM1/2-orange, OM3/4-Aqua

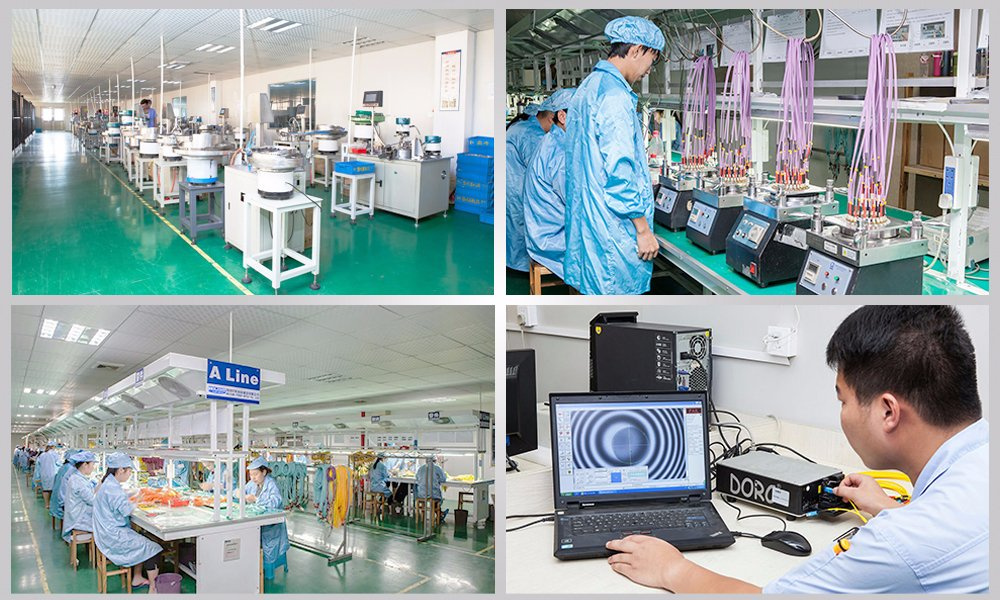

Holight, established in 2004, is a leading professional fiber optic patchcord manufacturer and exporter from China. We focus on producing fiber optic connector parts to overall assembly to the customers from all over the world. With nearly 12 years' experience in the export market, Holight has been continually growing and expanding the product lines to keep up the pace of industry trends.
