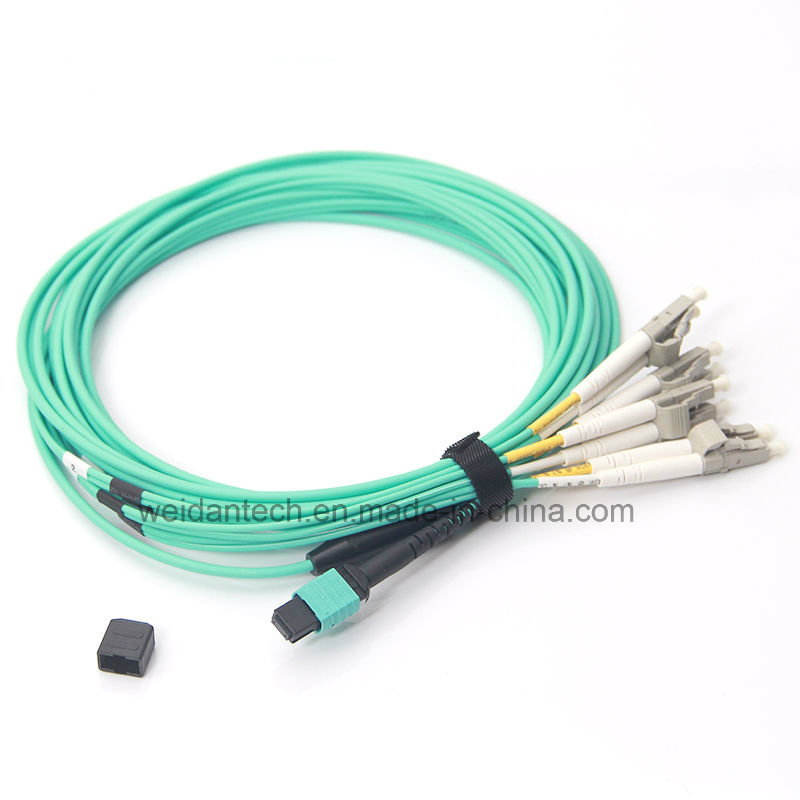

MPO to 8*LC 5meter MPO Fanout Patch Cable Cord
| Price: |
US $ 1-20/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MPO-005 |
| Cable Style: |
Multimode, Om3 |
| Cable Shape: |
Round |
| Insertion Loss: |
MPO<0.6dB; LC<0.2dB |
| Return Loss: |
MPO>25dB; LC>35 dB |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Brand: |
Weidan Electronics |
Product Description
5Meter Multi-mode MPO MTP Fanout Patch cord, MPO (Female) to 8 x LC Fiber Patch cord ,
OM3, 50/125.

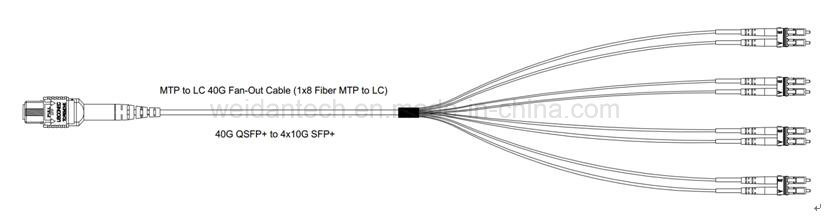

----40G QSFP+ To 4 X10G SFP+ Solution.
MPO is Multiple-Fibre Push-On connector, defined by IEC-61754-7 and TIA-604-5-D. MTP connector, designed by US Conec Ltd. and fully compliant with the MPO standards, is an MPO connector with better optical and mechanical performance. The MT ferrule can float in the MTP to maintain physical contact on a mated pair if there is a strain on the cable. Generic MPO connectors do not offer this kind of features. Weidan Electronics's MPO connector can working with MTP connector, and have better cost.
MPO Feature:
High fiber density
Small volume, easy management
Can customize connection method as QSFP requirements
Application
Telecom system
Cabling system
High Density optical laser
QSFP devices
Specifications:
MPO (female) to MPO (female)
MMF(50/125um), OM3Cable Length:180-meterInsertion loss : <0.7 dB (<0.5dB Optional)Return loss : ≥25dBInsert- pull test : 500times <0.5 dB
Operation temperature : -40ºC~+80ºCWeidan Tech's Illustrations of customized items
1. Cable Color. Red, Purple, White, Black, Orange and Pink can be customized. As to customized colors, our MOQ is 1000 meters.
2. Cable Printing. SM/MM, Cable Grade, Cable Jacket, Length, Parameters, Specifications can be printed on the cable.
3. Cable Tag. Flag tag and wrap-around tag for options, the tagged information can be customized.
4. Custom Logo. The customized logo can be printed on the packing bag as you required, any color, any size.
5. Custom Length. Any length can be customized as you required.
6. Custom Label. The paper label stick on the packing bag can be made with your requred information
