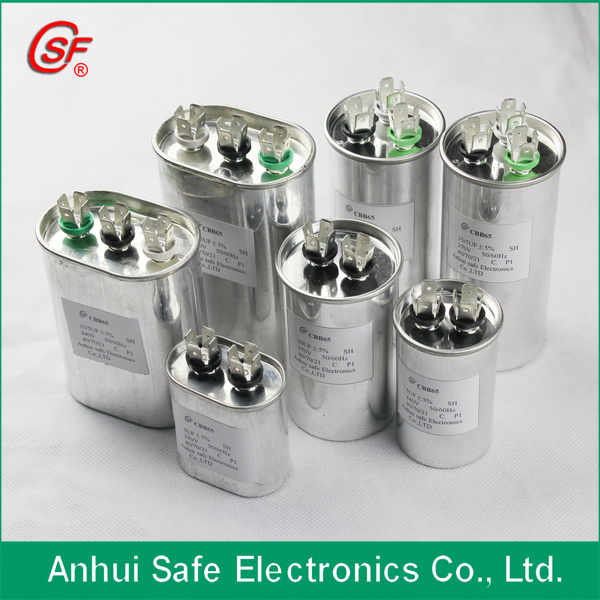

MPP Capacitor (CBB65/61/60)

Name: MPP Capacitor (CBB65/61/60)
Brand: all-electronics-online.com
SKU: 688857745
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB65/61/60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Grey, Black or Make as Request
Class Of Safety Protection:	P0/P1/P2
Capacitance Deviation:	± 5%
Cetificates:	CE, UL, RoHS, CQC
Certificates For Company:	ISO9001
Case:	Aluminium/Plastic
Shape:	Cylinder/Oval/Square
Specifications:	Avaliable on Request
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Application:	Automobile
Usage:	Air Conditioner Capacitor
Structure:	Film Capacitor
Electrolyte:	Oil/Resin
Capacitance:	1-120UF

Product Description

Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
Characteristics:
1. High insulation resistance
2. Stable reliability
3. Explosion proof structure
4. Low dissipation factor
5. Excellent self-healing property
Product Description:
The capacitor takes heavy-edge metalized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Application:
Applied to the starting and better working of sing-phase motor in 50Hz(60Hz) frequency AC power system.
Technical features:
Rated Voltage: 100~1000VAC
Rated Capacitance: 1~120uf
Rated Frequency: 50Hz/60Hz
Climate type: 40/70/21, 40/85/21
Capacitance tolerance: +-5%
Loss Tangent: <=0.2%
Application requirements
1. Altitude: <=2000m
2. Residual voltage while loading: Less than 10% of rated voltage
3. Allowed max Voltage: Less than 1.1 time rated voltage
4. Permissible max Current: Less than 1.3 times rated current.

For more information,you can contact and view our website:
www.capacitorfilm.com

Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

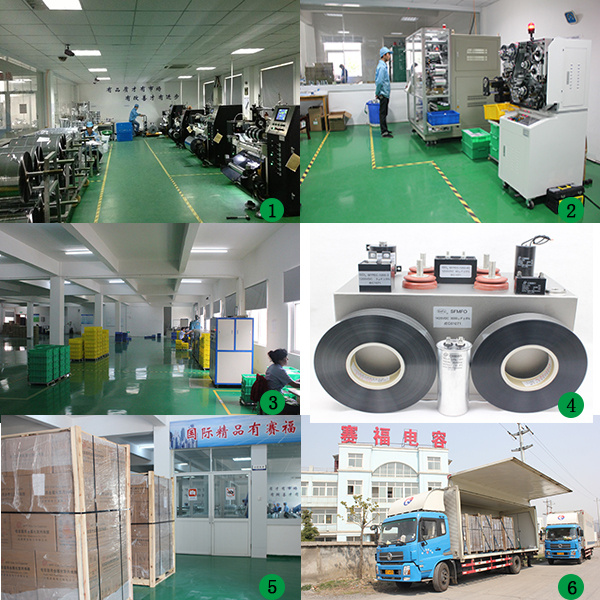

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.

The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.

With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.

Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.

"good faith, serving the whole world" is our principle.
