MPPT Controller for 1000W Solar Inverter

Name: MPPT Controller for 1000W Solar Inverter
Brand: all-electronics-online.com
SKU: 734157212
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 240-270/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP1000
OEM:	Accepted
Warranty:	18 Months
Output Voltage:	110V/220V/230V
Input Voltage:	12V,24V,48V
Peak Power:	2000W
Material:	Aluminium Alloy
Output Frequency:	50/60Hz
Output Waveform:	Pure Sine Wave
Qty/CTN:	2PCS

Product Description

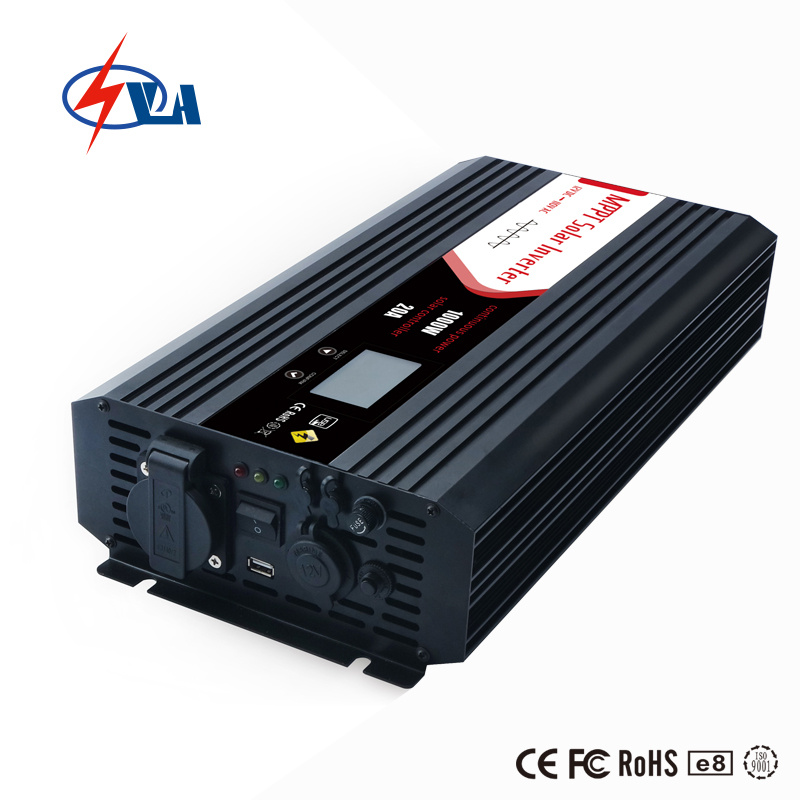

Pure sine wave power inverter with mppt controller 20A

Application of solar power inverter

The 1000W LCD display mppt Solar Inverter is a system designed especially for home, mobile solar electrical appliances and fixed small size solar electrical appliances. It is composed of 1000W pure sine wave solar power inverter and 20A MPPT LCD display solar controller.

DC input	Input Battery Voltage	DC12V	DC24V
	Low Battery Alarm	DC 10.5~11.5V,21.5~23V
	Auto Low Battery Shutdown	DC 9.5~10.5V,20.5~22V
Inverter AC output	Rated Power	1000W
	Peak Power	2000W
	Output Voltage	110V		220V
	Output Wave form	Pure Sine Wave
	Output Frequency	50/60HZ±3
	Optimum Efficiency	90%
	Protection Function	High-voltage,low voltage,over-load,temp and short-circuit protection
DC output	USB port	2.1A
	DC12V port	5A
	Cigarette lighter	15A
Built-in Solar Charge Controller	Rated charge current	20a
	Charge mode	MPPT(maximum power point tracking)
	MPPT efficiency	≥99.5%
	System type	DC12V or 24V system
	Max PV input voltage(VOC)	DC100V
	High input voltage protection point	DC100V
	High input voltage recovery point	DC95V
	Automatic Temperature Compensation	*14.2V-(highest temperature-25ºC)0.3**
	Control mode	ON/OFF mode,Dual time control mode,PV&Time control mode,PV voltage control mode
Suitable batteries	Flooded,Sealed lead acid,Gel battery.Other types of the batteries can also be defined
LCS display	System type,PV input voltage,PV input current,day,month,total generation power,battery type,battery voltage,charging current,charging power,discharge current,discharge power and so on

FAQ

Q1.Does your company also provide other solar products except inverter and solar
   charge controller ?

A:Yes, we also provide other solar products, like Inverter with solar charger, car inverter ,
   battery charger, battery protection switch ,MC4 Solar Connectors and tools .

Q2.How to choose the Power Inverter ?

A:Modified Inverter : lights , fan , computer ,laptop ,small refrigerator,pump
Pure Inverter : Air conditioner , refrigerator,pump,cleaner , coffee maker , intelligent instruments

Q3.What is the delivery time?

A:For sample,within 3-5 days after receiving payment.
    For bulk order,usually in 10-15 days after receiving payment.

Q4.What is certification you got?

A:We have certification of ISO9001,CE,RoHS,FCC,ETL,TUV,UL.

Q5: How about your payment and shipment?

A:Payment: We accept T/T, Trade Assurance ,Western Union,Paypal etc.
Shipment: For sample order, we use DHL, TNT, FEDEX  etc.

Q6.Could you offer C/O?

A:Yes.We can prepare relative documents to foreign affairs office or other office
to apply for this certificate.We also supply Form A,Form B,Form E,Form F .

Q7.Does your company offer technical support?

A:We have a professinal technical support group for all the item sale and after -sale service.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
