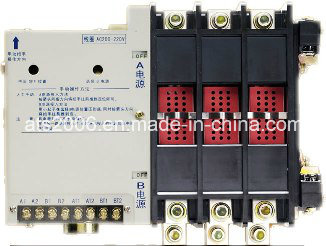

Mq2 400 AMP Automatic Transfer Switch

Name: Mq2 400 AMP Automatic Transfer Switch
Brand: all-electronics-online.com
SKU: 696618432
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MQ2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capcaity:	20A~5000A
Number Of Phase:	3 Phases
Number Of Poles:	3 Poles or 4 Poles
Frequency:	50Hz or 60Hz
Number Of Positions:	2 Positions or 3 Positions

Product Description

MQ2 series dual power automatic transfer switch is one of adopted international ATSE technology developed by our company. It is suitable for power supply system with rated insulating voltage is AC800V, rated working voltage is AC690V, and below DC250V, and AC 50Hz/60Hz, rated working current is 20A-5000A of two-path. The transfer switch and the matching intellect display, they are main used for high building, the post and communication, coal mining, shipping, military facilities industrial assembly line etc the situation of need the interruption power supply. Under the city rapid increase power supply necessary trend, they can satisfy the higher requires of reliable power supply, the products have reliable performance, small size and easy operation etc features.
Connection mode: front panel connection, back panel connection
Structure:small volume, small current, simple in constitution, ATS integrative
Characteristics: quick transfer speed, low failure rate and convenient repair
Control device: LCD dynamic display, internal controller
Control type: self-operation and self-recovery, self-operation and no self-recovery
Conversion mode: power network-power network, power network-generating network
Classification: two steps ,three steps
Electric degree: PC
Number of poles: 2. 3. 4 poles.
Frame current: 63, 125, 250, 500, 500, 800, 1000, 1250, 600, 2000, 3150, 4000, 5000
Current:20. 32. 40. 63. 80. 100. 125. 160. 200. 225. 250. 350. 400. 500. 630. 800. 1000. 1250. 1600. 2000. 2500. 3150. 4000. 5000
Standards: GB 14048.11 IEC60947-6-1

Wenzhou Jinggu Photoelectronics Technology Co., Ltd. is a focus on energy efficiency, wind, solar and other electrical power equipment product development, production, sales and service of the national high-tech science and technology enterprises. Major production: Sine wave inverter, car inverter, solar inverter, solar controller, LED photoelectric, AC / DC power supply, scenery power systems, photovoltaic equipment and accessories and other products. And provide project consulting, system design and technical support services. Products have been widely used in finance, communications, power, transportation, automobiles, elevators, residential, research institutes, manufacturing and military industries.

The company has perfect quality control, production management, engineering management, administered four management systems, in particular the quality system, we implement strict ISO9001 and CE certification standards, quality control throughout the entire production process, IQC, IPQC, FQC, in strict accordance with SOP tested products, and equipped with advanced testing equipment, after each batch of product must be shipped to the customer QC confirmed. The company's technology strength, advanced production equipment, has a group of experienced R & D engineers and marketing staff.

Since the early pioneering adhering to the "quality first development force, perfected the needs of customers" business philosophy, adhere to the high-tech science and technology, excellent quality-based, focusing on talent introduction and training, establish a sound management mechanism, to create high Performance management team, improve marketing and service network, the products sell well in more than 30 provinces and municipalities and OEM / ODM exported to Europe, America, Africa and Southeast Asia and other countries.

Future, Crystal Valley photoelectric all employees will uphold the "energy industry, high-efficiency power" development mission, and you look forward to join hands together to create a new, green, energy-efficient world.
