Ms-15 Mini Size AC DC Switching Power Supply with Ce

Ms-15 Mini Size AC DC Switching Power Supply with Ce
Price: US $ 3.65-5.12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: MS-15-5, MS-15-12, MS-15-15, MS-15-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Antistop: Switching Power Supply
Output Voltage: 5V,12V, 15V,24VDC
Output Frequency: 47Hz-63Hz
Overall Dimension: 84*58*38mm
Weight: 0.21kg
Output Type: Single
Warranty: 2 Years
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: RoHS
Output Power: 15W
Brand: Winston/OEM

Product Description

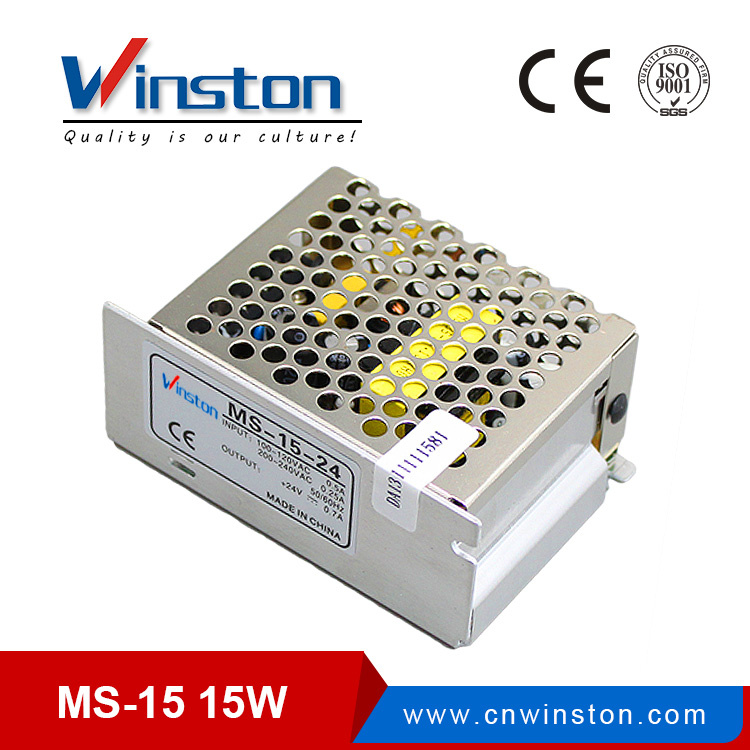

MS-15 switching mode power supply

1. Features:

15W Switching Power Supply

1) ,Universal AC Input
2) ,Small volume and Light weight,
3) .Low Lost, high efficiency
4). CE ROHS approved
5) .Mini appearance,Indicator for power on/normal(LED)
6) Convenient Installation.
7). 2 years warranty

2.Specification

Model

MS-15-5

MS-15-12

MS-15-24

DC Voltage

5V

12V

24V

Current Range

0-3A

0-1.3A

0-0.7A

Ripple & Noise

60mVp-p

80mVp-p

100mVp-p

Voltage Adj. Range

10,-5%

10%

±10%

Inlet Stability

±0.5%

±0.5%

±0.5%

Load Stability

±1%

±0.5%

±0.5%

Setup, Rise, Hold Up Time

200s,100ms,30ms at Full Load

INPUT



Voltage Range

100~240VAC   47-63Hz; 240~370VDC

AC Current

0.5A/115V   0.25A/230V

Efficiency

65%

68%

72%

Inrush Current

Cold-start current 15A/115V   30A/230V

Leakage Current

<0.5mA /240VAC

PROTECTION



Over Load

105%~135% Cut Off the Output

Protection type: Fold back current limiting Reset: auto recovery

ENVIRONMENT



Working Temp., Humidity

-10ºC~+50ºC(Refer to output derating curve), 20%~90%RH

Storage Temp., Humidity

-20ºC~+85ºC,10%~95%RH

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,each axes

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Dimension

84*58*38mm(L*W*H)

Weight

0.21Kg
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

3.Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2.  Quality Product: Manufacture company, each of the products is tested and calibrated.
3.  Hospitality: Offer smiling service and your visiting is highly welcomed
4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.
4.Trade Information

Trade TermsFOB ,CIF ,CFR,EXW,DDP
Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
