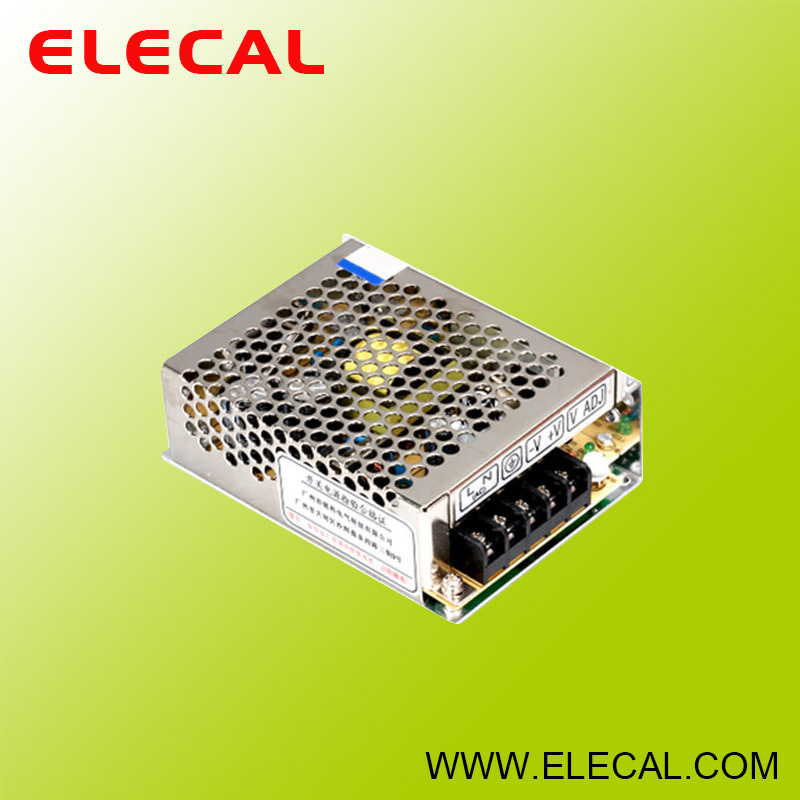

Ms-60 Single Output Switching Power Supply

Name: Ms-60 Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828967075
Availability: InStock
Rating: 4.4 (127 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-60
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Single Output
Output Power:	50W/60W
Input Voltage:	180~260VAC 240-370VDC
Brand:	Elecal

Product Description

MODEL		MS-60-5	MS-60-12	MS-60-15	MS-60-24
OUTPUT	DC VOLTAGE	5V	12V	15V	24V
	RATED CURRENT	10A	5A	4A	2.5A
	CURRENT RANGE	0~10A	0~5A	0~4A	0~2.5A
	RATED POWER	50W	60W	60W	60W
	RIPPLE & NOISE (max.) Note.2	75mVp-p	100mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	4.75-5.5V	10.8 ~ 13.2V	13.5-16.5V	22.6 ~ 26.4V
	VOLTAGE TOLERANCE Note.3	+2.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±0.5%	±0.5%	±0.5%
	SETUP, RISE, HOLD TIME	200ms 100ms 20ms at full load
INPUT	VOLTAGE RANGE	180~260VAC 240-370VDC
	FREQUENCY RANGE	47-63HZ
	EFFICIENCY(Typ.)	78%	83%	83%	85%
	AC CURRENT	0.9A/230VAC
	INRUSH CURRENT(max.)	COLD START 36A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power
PROTECTION	OVERLOAD	Protection type: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-10 ~ +60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20~+85°C,10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY& EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION &RADIATION	Design refer to FCC Parti 5 J Conduction Class B
OTHERS	MTBF	408.3K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	1117836mm(LWH)
	PACKING	0. 26Kg;72pcs/19Kg/0.9CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
