Ms Series Three-Phase Asynchronous Electric Motor with Aluminium Housing (2pole, 4pole, 6pole, 8pole)
| Price: |
US $ 25.7-240/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
MS SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Altitude: |
Not Exceeding 1000m |
| Rated Voltage: |
380V or Any Voltage Between 220-760V |
| Rated Frequency: |
50Hz\60Hz |
| Protection Class: |
IP54\55 |
| Insulation Class: |
B\F |
| Duty: |
S1(Continous) |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Variable Frequency Starting |
| Brand: |
Wedo |
| Species: |
Ms Series Three-Phase |
| Certification: |
ISO9001, CCC, CE, CQC, ISO14001 |
| Number Of Poles: |
2, 4, 6, 8 |
Product Description

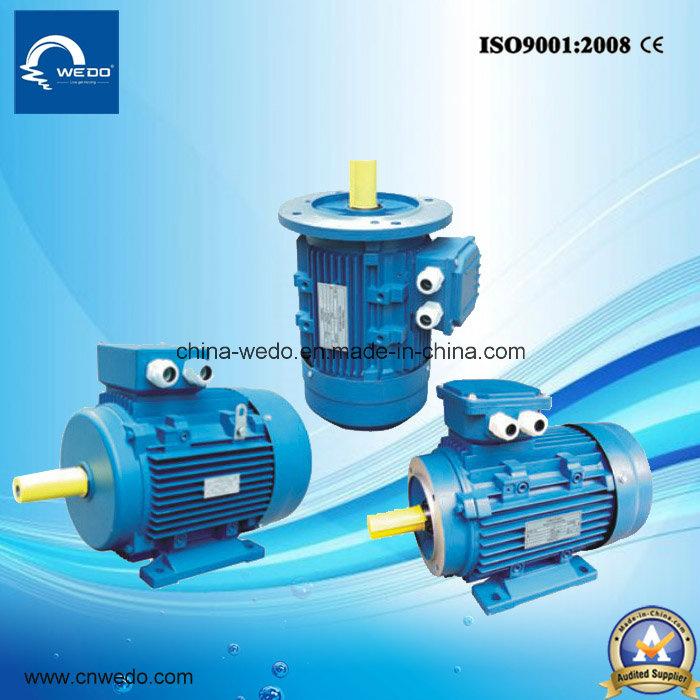

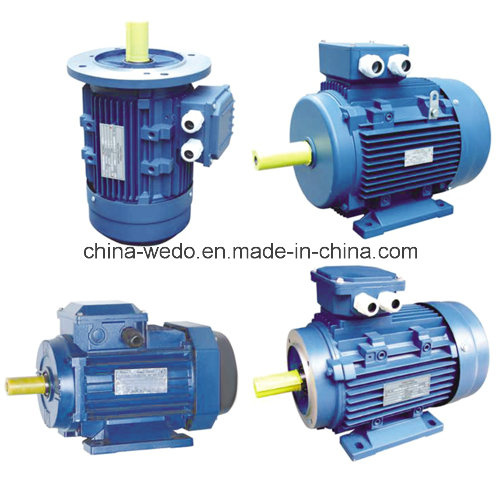

MS Series Three-phase Asynchronous Motor With Aluminium Housing

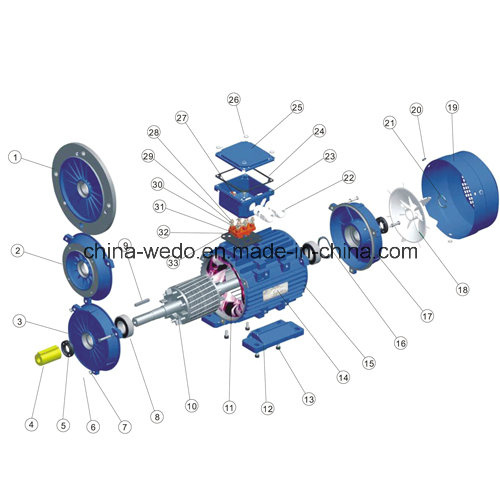

1.B5 Flange 13. Pedstal Bolt 25.Terminal box lid
2.B14 Flange 14.Nameplate 26.Screw
3. Front Endshield 15.Frame 27.Earth Mark
4.Shaft Cover 16.Wave Form 28. Brass Washer
5.Spring Washer 17.Rear Endshield 29.Deduction cap
6.(V Ring) Oil seal 18.Fan 30.Brass Net
7.Bolt 19.Fan Cowl 31. Terminal Board
8.Bearing 20.Fan cowl Screw 32. Leather Washer
9.Key 21.Fan Clamp 33.Brass Lug
10.Rotor 22.PG
11. Stator 23.Terminal box base
12.Pedstal 24.Gasket
Operating Conditions
Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V
Rated frequency: 50HZ,60HZ
Protection class: IP54,IP55
Insulation class: B,F
Cooling method: ICO141
Duty:S1 (continuous)
Technical Data | Model | Output | Full load | 75% load | 50% load | Tstart /Tn | Ist/ In | |
| KW | HP | Current (A) | Speed (r/min) | Eff. (%) | Power factor | Eff. (%) | Power factor | Eff. (%) | Power factor |
| 380V/50HZ Synchronous Speed 3000 r/min (2 poles) |
| MS56M1-2 | 0.09 | 0.12 | 0.30 | 2700 | 58.0 | 0.78 | 56.2 | 0.77 | 54.0 | 0.74 | 2.2 | 5.5 | 2.2 |
| MS56M2-2 | 0.12 | 0.18 | 0.38 | 2700 | 60.0 | 0.79 | 58.5 | 0.78 | 56.0 | 0.75 | 2.2 | 5.5 | 2.2 |
| MS63M1-2 | 0.18 | 0.25 | 0.53 | 2720 | 63.0 | 0.80 | 62.0 | 0.80 | 60.5 | 0.76 | 2.2 | 5.5 | 2.2 |
| MS63M2-2 | 0.25 | 0.33 | 0.69 | 2720 | 65.0 | 0.81 | 64.0 | 0.80 | 62.5 | 0.77 | 2.2 | 5.5 | 2.2 |
| MS71M1-2 | 0.37 | 0.50 | 0.99 | 2740 | 66.0 | 0.81 | 65.0 | 0.80 | 63.5 | 0.78 | 2.2 | 6.1 | 2.2 |
| MS71M2-2 | 0.55 | 0.75 | 1.40 | 2740 | 71.0 | 0.82 | 70.0 | 0.82 | 68.5 | 0.79 | 2.2 | 6.1 | 2.3 |
| MS80M1-2 | 0.75 | 1 | 1.83 | 2835 | 77.4 | 0.83 | 72.0 | 0.83 | 70.2 | 0.80 | 2.2 | 6.1 | 2.3 |
| MS80M2-2 | 1.1 | 1.5 | 2.58 | 2835 | 79.6 | 0.84 | 75.1 | 0.83 | 73.0 | 0.80 | 2.2 | 7.0 | 2.3 |
| MS90S-2 | 1.5 | 2 | 3.43 | 2845 | 81.3 | 0.84 | 77.0 | 0.85 | 70.0 | 0.81 | 2.2 | 7.0 | 2.3 |
| MS90L-2 | 2.2 | 3 | 4.85 | 2845 | 83.2 | 0.85 | 80.0 | 0.85 | 78.0 | 0.84 | 2.2 | 7.0 | 2.3 |
| MS100L-2 | 3.0 | 4 | 6.31 | 2875 | 84.6 | 0.87 | 81.0 | 0.86 | 79.3 | 0.86 | 2.2 | 7.0 | 2.3 |
| MS112M-2 | 4.0 | 5.5 | 8.10 | 2895 | 85.8 | 0.88 | 83.5 | 0.87 | 81.0 | 0.84 | 2.2 | 7.5 | 2.3 |
| MS132S1-2 | 5.5 | 7.5 | 11.0 | 2905 | 87.0 | 0.88 | 84.3 | 0.89 | 83.0 | 0.84 | 2.2 | 7.5 | 2.3 |
| MS132S2-2 | 7.5 | 10 | 14.9 | 2905 | 88.1 | 0.88 | 85.9 | 0.87 | 83.7 | 0.84 | 2.2 | 7.5 | 2.3 |
| MS160M1-2 | 11 | 15 | 21.3 | 2935 | 89.4 | 0.89 | 86.8 | 0.89 | 84.1 | 0.84 | 2.2 | 7.5 | 2.3 |
| MS160M2-2 | 15 | 20 | 28.8 | 2935 | 90.3 | 0.89 | 88.0 | 0.89 | 86.4 | 0.85 | 2.2 | 7.5 | 2.3 |
| MS160L-2 | 18.5 | 25 | 34.7 | 2935 | 90.9 | 0.90 | 89.0 | 0.88 | 86.8 | 0.86 | 2.2 | 7.5 | 2.3 |
| 380V/50HZ Synchronous Speed 1500 r/min (4 poles) |
| MS56M1-4 | 0.06 | 0.08 | 0.26 | 1300 | 53.0 | 0.70 | 51.8 | 0.65 | 50.0 | 0.53 | 2.1 | 5.2 | 2.2 |
| MS56M2-4 | 0.09 | 0.12 | 0.35 | 1300 | 55.0 | 0.71 | 53.8 | 0.67 | 52.0 | 0.55 | 2.1 | 5.2 | 2.2 |
| MS63M1-4 | 0.12 | 0.18 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 53.9 | 0.57 | 2.1 | 5.2 | 2.2 |
| MS63M2-4 | 0.18 | 0.25 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 |
| MS71M1-4 | 0.25 | 0.33 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 |
| MS71M2-4 | 0.37 | 0.50 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.8 | 0.63 | 2.1 | 5.2 | 2.2 |
| MS80M1-4 | 0.55 | 0.75 | 1.57 | 1395 | 71.0 | 0.75 | 69.2 | 0.74 | 67.2 | 0.64 | 2.4 | 5.2 | 2.3 |
| MS80M2-4 | 0.75 | 1.0 | 2.03 | 1395 | 79.6 | 0.76 | 71.7 | 0.75 | 69.8 | 0.67 | 2.3 | 6.0 | 2.3 |
| MS90S-4 | 1.1 | 1.5 | 2.89 | 1405 | 81.4 | 0.77 | 73.1 | 0.75 | 70.8 | 0.67 | 2.3 | 6.0 | 2.3 |
| MS90L-4 | 1.5 | 2 | 3.70 | 1405 | 82.8 | 0.79 | 76.1 | 0.76 | 73.7 | 0.69 | 2.3 | 6.0 | 2.3 |
| MS100L1-4 | 2.2 | 3 | 5.16 | 1435 | 84.3 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 |
| MS100L2-4 | 3.0 | 4 | 6.78 | 1435 | 85.5 | 0.82 | 79.9 | 0.78 | 77.5 | 0.70 | 2.3 | 7.0 | 2.3 |
| MS112M-4 | 4.0 | 5.5 | 8.80 | 1445 | 86.6 | 0.82 | 81.9 | 0.79 | 79.6 | 0.70 | 2.3 | 7.0 | 2.3 |
| MS132S-4 | 5.5 | 7.5 | 11.7 | 1445 | 87.7 | 0.83 | 82.8 | 0.81 | 80.4 | 0.73 | 2.3 | 7.0 | 2.3 |
| MS132M-4 | 7.5 | 10 | 15.6 | 1445 | 88.7 | 0.84 | 84.8 | 0.82 | 82.6 | 0.74 | 2.3 | 7.0 | 2.3 |
| MS160M-4 | 11 | 15 | 22.3 | 1465 | 89.8 | 0.84 | 85.8 | 0.83 | 83.8 | 0.75 | 2.2 | 7.0 | 2.3 |
| MS160L-4 | 15 | 20 | 30.1 | 1465 | 90.6 | 0.85 | 90.0 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 |
| 380V/50HZ Synchronous Speed 1000 r/min (6 poles) |
| MS71M1-6 | 0.18 | 0.25 | 0.74 | 850 | 56.0 | 0.66 | 54.6 | 0.66 | 53.0 | 0.65 | 1.9 | 4.0 | 2.0 |
| MS71M2-6 | 0.25 | 0.33 | 0.95 | 850 | 59.0 | 0.68 | 57.5 | 0.68 | 56.1 | 0.62 | 1.9 | 4.0 | 2.0 |
| MS80M1-6 | 0.37 | 0.50 | 1.30 | 895 |
62.0
| 0.70 | 60.5 | 0.69 | 59.1 | 0.64 | 1.9 | 4.7 | 2.0 |
| MS80M2-6 | 0.55 | 0.75 | 1.79 | 895 | 65.0 | 0.72 | 63.3 | 0.71 | 60.1 | 0.64 | 1.9 | 4.7 | 2.1 |
| MS90S-6 | 0.75 | 1.0 | 2.29 | 915 | 75.9 | 0.72 | 67.3 | 0.72 | 66.3 | 0.65 | 2.0 | 5.5 | 2.1 |
| MS90L-6 | 1.1 | 1.5 | 3.18 | 915 | 78.1 | 0.73 | 70.2 | 0.72 | 38.0 | 0.66 | 2.0 | 5.5 | 2.2 |
| MS100L-6 | 1.5 | 2 | 3.94 | 945 | 79.8 | 0.75 | 74.0 | 0.75 | 71.0 | 0.68 | 2.0 | 5.5 | 2.1 |
| MS112M-6 | 2.2 | 3 | 5.60 | 945 | 81.8 | 0.73 | 77.1 | 0.77 | 75.1 | 0.69 | 2.0 | 6.5 | 2.1 |
| MS132S-6 | 3.0 | 4 | 7.40 | 965 | 83.3 | 0.76 | 78.9 | 0.77 | 76.1 | 0.69 | 2.1 | 6.5 | 2.1 |
| MS132M1-6 | 4.0 | 5.5 | 9.80 | 965 | 84.6 | 0.76 | 80.0 | 0.76 | 77.5 | 0.70 | 2.1 | 6.5 | 2.1 |
| MS132M2-6 | 5.5 | 7.5 | 12.9 | 965 | 86.0 | 0.77 | 82.1 | 0.77 | 79.4 | 0.70 | 2.1 | 6.5 | 2.1 |
| MS160M-6 | 7.5 | 10 | 17.0 | 975 | 87.2 | 0.77 | 83.4 | 0.77 | 82.4 | 0.70 | 2.0 | 6.5 | 2.1 |
| MS160L-6 | 11 | 15 | 24.2 | 975 | 88.7 | 0.78 | 86.6 | 0.78 | 84.8 | 0.72 | 2.0 | 6.5 | 2.1 |
| 380V/50HZ Synchronous Speed 750 r/min (8 poles) |
| MS80M1-8 | 0.18 | 0.25 | 0.88 | 630 | 51.0 | 0.61 | 47.9 | 0.52 | 44.6 | 0.54 | 1.8 | 4.0 | 1.9 |
| MS80M2-8 | 0.25 | 0.33 | 1.15 | 640 | 54.0 | 0.61 | 48.9 | 0.54 | 45.3 | 0.55 | 1.8 | 4.0 | 1.9 |
| MS90S-8 | 0.37 | 0.50 | 1.49 | 660 | 62.0 | 0.61 | 55.6 | 0.57 | 50.7 | 0.56 | 1.8 | 4.0 | 1.9 |
| MS90L-8 | 0.55 | 0.75 | 2.18 | 660 | 63.0 | 0.61 | 55.9 | 0.58 | 50.9 | 0.59 | 1.8 | 4.0 | 2.0 |
| MS100L1-8 | 0.75 | 1.0 | 2.17 | 690 | 71.0 | 0.67 | 60.9 | 0.65 | 59.7 | 0.56 | 1.8 | 4.0 | 2.0 |
| MS100L2-8 | 1.1 | 1.5 | 2.39 | 690 | 73.0 | 0.69 | 72.0 | 0.61 | 59.8 | 0.57 | 1.8 | 5.0 | 2.0 |
| MS112M-8 | 1.5 | 2 | 4.50 | 680 | 75.0 | 0.69 | 74.2 | 0.64 | 59.8 | 0.58 | 1.8 | 5.0 | 2.0 |
| MS132S-8 | 2.2 | 3 | 6.00 | 710 | 78.0 | 0.71 | 77.2 | 0.61 | 60.1 | 0.58 | 1.8 | 6.0 | 2.0 |
| MS132M-8 | 3.0 | 4 | 7.90 | 710 | 79.0 | 0.73 | 78.2 | 0.62 | 60.0 | 0.59 | 1.8 | 6.0 | 2.0 |
| MS160M1-8 | 4.0 | 5.5 | 10.3 | 720 | 81.0 | 0.73 | 80.2 | 0.63 | 61.0 | 0.58 | 1.9 | 6.0 | 2.0 |
| MS160M2-8 | 5.5 | 7.5 | 13.6 | 720 | 83.0 | 0.74 | 81.2 | 0.61 | 62.0 | 0.59 | 2.0 | 6.0 | 2.0 |
| MS160L-8 | 7.5 | 10 | 17.8 | 720 | 85.0 | 0.75 | 84.5 | 0.63 | 65.9 | 0.59 | 2.0 | 6.0 | 2.0 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.
Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...
The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,
WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.
WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.
History: 15 years professional manufacturer of water pumps and motors.

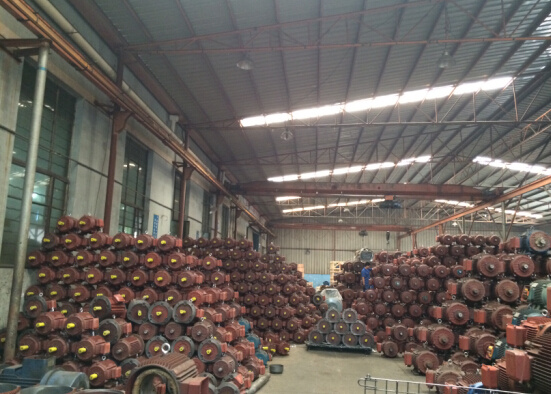

Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.
Technology: A strong team of international and professional technical engineers.

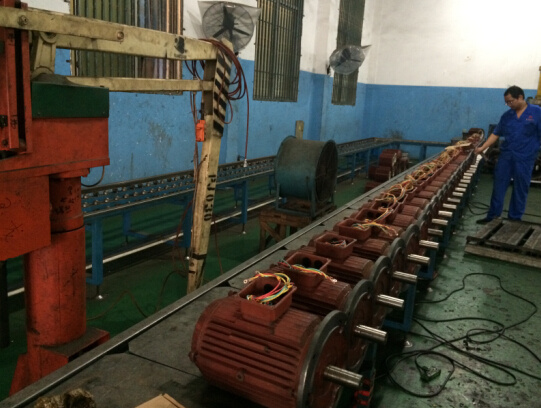

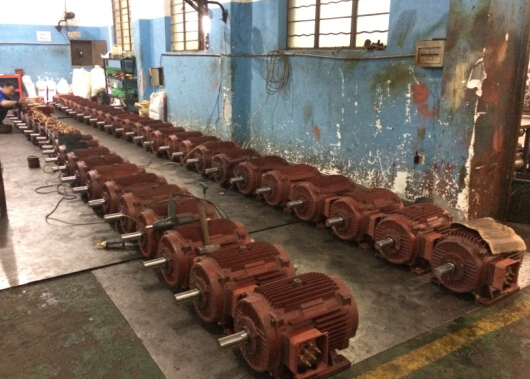

Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.

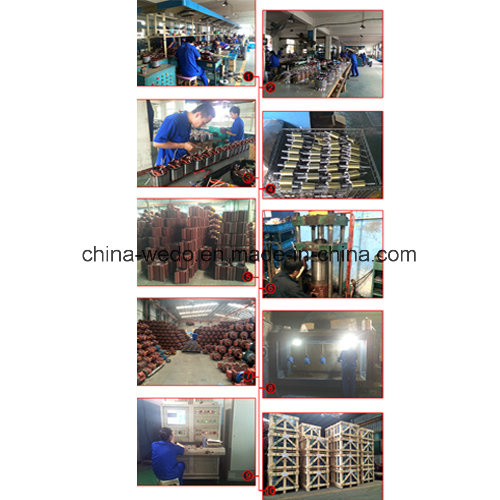

Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.
Production Capacity: 300, 000 PCS/year.
Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.
Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
