Prod Model: |
MS MOTOR |
Housing: |
Aluminum |
Voltage: |
380V/660V |
Frequency: |
50Hz/60Hz |
Number Of Stator: |
Three-Phase |
Function: |
Driving |
Certification: |
Ce |
Brand: |
Bro |
Product Description

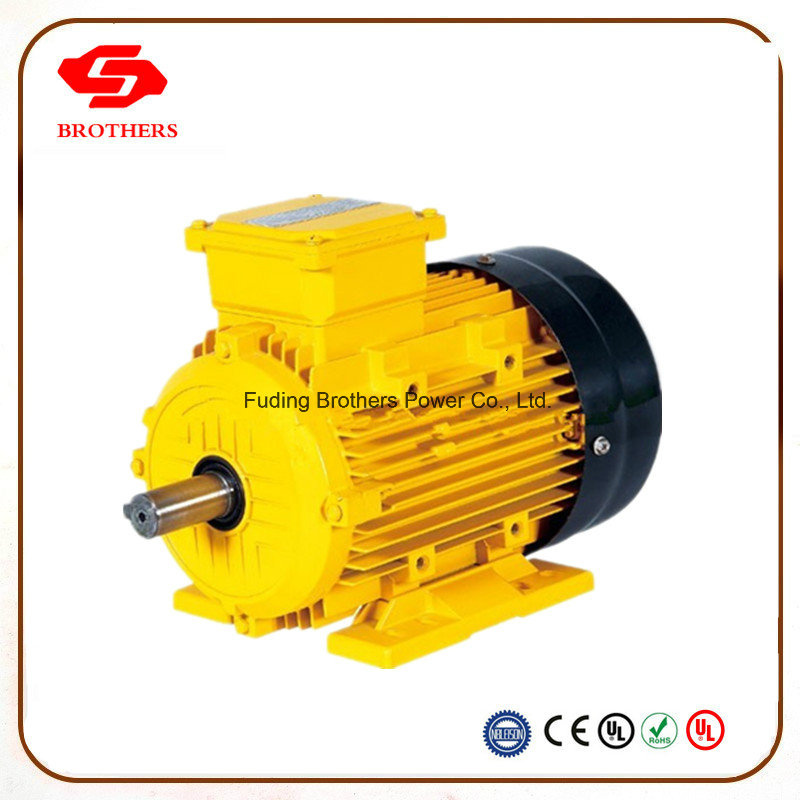

MS series aIuminium housing three-phase asynchronous motors, with latest design in entirety are made of selected quaIity materials and conform to the lEC standard which have good performance, safety and reIiable operation, nice appearance, and can be maintained very conveniently , with Iow noises, IittIe vibration and light weight and simpIe construction.
We can production "IE2"."IE3" HIGHT EFFICIENT THREE PHASE MOTOR.
1.-Detailed Product Description
1.CE certificate
2.Copper wire
3.Cold-rolled silicon steel sheet
2.-SPECIFICATIONS
1) Frame sizes: 56-160
2) Rated power: 0.06-18.5kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz or 50/60Hz
5) Protection class: IP44,IP54
6) Insulation class: B,F
7) Materials: Aluminum
3.-Technical date
Model | Power | Voltage (V) | Current (A) | Speed (r.p.m) | Eff (%) | Power factor | Locked rotor torque Rated torque | Locked rotor current rated current | Max torque Rated torque |
KW | HP |
MS561-2 | 0.09 | 0.12 | 220/380 | 0.57/033 | 2800 | 62 | 0.68 | 2.3 | 2.4 | 6 |
MS562-2 | 0.12 | 1/6 | 220/380 | 0.67/0.38 | 2800 | 67 | 0.71 | 2.3 | 2.4 | 6 |
MS631-2 | 0.18 | 1/4 | 220/380 | 0.91/0.53 | 2800 | 69 | 0.75 | 2.2 | 2.4 | 6 |
MS632-2 | 0.25 | 1/3 | 220/380 | 1.17/1.68 | 2800 | 72 | 0.78 | 2.2 | 2.4 | 6 |
MS711-2 | 0.37 | 1/2 | 220/380 | 1.65/0.95 | 2800 | 73.5 | 0.8 | 2.2 | 2.4 | 6 |
MS712-2 | 0.55 | 3/4 | 220/380 | 2.33/1.35 | 2800 | 75.5 | 0.82 | 2.2 | 2.4 | 6 |
MS801-2 | 0.75 | 1 | 220/380 | 3.03/1.75 | 2800 | 76.5 | 0.85 | 2.2 | 2.4 | 6 |
MS802-2 | 1.1 | 1.5 | 220/380 | 4.42/2.55 | 2800 | 77 | 0.85 | 2.2 | 2.4 | 6 |
MS90S-2 | 1.5 | 2 | 220/380 | 6.01/3.48 | 2800 | 77 | 0.85 | 2.2 | 2.4 | 6 |
MS90L-2 | 2.2 | 3 | 220/380 | 8.61/4.98 | 2800 | 78 | 0.86 | 2.2 | 2.4 | 6 |
MS100L-2 | 3 | 4 | 220/380 | 11.1/6.4 | 2870 | 82 | 0.87 | 2.2 | 2.3 | 6 |
MS112M-2 | 4 | 5.5 | 380/660 | 8.2/4.7 | 2890 | 85.5 | 0.87 | 2.2 | 2.3 | 7 |
MS132S1-2 | 5.5 | 7.5 | 380/660 | 11/6.3 | 2900 | 85.5 | 0.88 | 2 | 2.2 | 7 |
MS132S2-2 | 7.5 | 10 | 380/660 | 15/8.6 | 2900 | 86.2 | 0.88 | 2 | 2.2 | 7 |
MS160M1-2 | 11 | 15 | 380/660 | 21.3/12.2 | 2930 | 88 | 0.88 | 2 | 2.2 | 7 |
MS160M2-2 | 15 | 20 | 380/660 | 28.7/16.4 | 2930 | 89 | 0.89 | 2 | 2.2 | 7 |
MS160L-2 | 18.5 | 25 | 380/660 | 34.6/19.8 | 2930 | 90 | 0.9 | 2 | 2.2 | 7 |
MS561-4 | 0.06 | 0.08 | 220/380 | 0.49/0.28 | 1400 | 56 | 0.58 | | 2.4 | 6 |
MS562-4 | 0..09 | 0.12 | 220/380 | 0.67/0.39 | 1400 | 58 | 0.61 | 2.3 | 2.4 | 6 |
MS631-4 | 0.12 | 1/6 | 220/380 | 0.84/0.48 | 1400 | 60 | 0.63 | 2.2 | 2.4 | 6 |
MS632-4 | 0.18 | 1/4 | 220/380 | 1.12/0.66 | 1400 | 64 | 0.66 | 2.2 | 2.4 | 6 |
MS711-4 | 0.25 | 1/3 | 220/380 | 1.44/0.83 | 1400 | 67 | 0.68 | 2.2 | 2.4 | 6 |
MS712-4 | 0.37 | 1/2 | 220/380 | 1.94/1.12 | 1400 | 69.5 | 0.72 | 2.2 | 2.4 | 6 |
MS801-4 | 0.55 | 3/4 | 220/380 | 2.69/1.56 | 1400 | 73.5 | 0.73 | 2.2 | 2.4 | 6 |
MS802-4 | 0.75 | 1 | 220/380 | 3.48/2.01 | 1400 | 75.5 | 0.75 | 2.2 | 2.4 | 6 |
MS90S-4 | 1.1 | 1.5 | 220/380 | 4.74/2.75 | 1400 | 78 | 0.78 | 2.2 | 2.4 | 6 |
MS90L-4 | 1.5 | 2 | 220/380 | 6.31/3.65 | 1400 | 79 | 0.79 | 2.2 | 2.4 | 6 |
MS100L1-4 | 2.2 | 3 | 220/380 | 8.6/5.0 | 1430 | 81 | 0.82 | 2.2 | 2.3 | 5.5 |
MS100L2-4 | 3 | 4 | 220/380 | 11.7/6.8 | 1430 | 82.5 | 0.81 | 2.2 | 2.2 | 5.5 |
MS112M-4 | 4 | 5.5 | 380/660 | 8.8/5.1 | 1440 | 84.5 | 0.82 | 2.2 | 2.3 | 7 |
MS132S-4 | 5.5 | 7.5 | 380/660 | 12/6.9 | 1440 | 85.5 | 0.84 | 2.2 | 2.2 | 7 |
MS132M-4 | 7.5 | 10 | 380/660 | 15/8.6 | 1440 | 87 | 0.85 | 2.2 | 2.2 | 7 |
MS160M-4 | 11 | 15 | 380/660 | 22.3/12.7 | 1460 | 88 | 0.85 | 2 | 2.2 | 7 |
MS160L-4 | 15 | 20 | 380/660 | 30/17.1 | 1460 | 89 | 0.85 | 2 | 2.2 | 7 |
MS90S-6 | 0.75 | 1 | 220/380 | 4.0/2.3 | 910 | 72.5 | 0.7 | 2 | 2.2 | 6 |
MS90L-6 | 1.1 | 1.5 | 220/380 | 5.5/3.2 | 910 | 73.5 | 0.72 | 2 | 2.2 | 6 |
MS100L-6 | 1.5 | 2 | 220/380 | 6.9/4.0 | 940 | 77.5 | 0.74 | 2 | 2.3 | 7 |
MS112M-6 | 2.2 | 3 | 220/380 | 9.7/5.6 | 940 | 80.5 | 0.74 | 2 | 2.2 | 6 |
MS132S-6 | 3 | 4 | 220/380 | 12.4/7.2 | 960 | 83 | 0.76 | 2 | 2 | 6.5 |
MS132M1-6 | 4 | 5.5 | 380/660 | 9.4/5.4 | 960 | 84 | 0.77 | 2 | 2 | 6.5 |
MS132M2-6 | 5.5 | 7.5 | 380/660 | 13/7.5 | 960 | 85.3 | 0.78 | 2 | 2 | 6.5 |
MS160M-6 | 7.5 | 10 | 380/660 | 16.5/9.43 | 970 | 86 | 0.8 | 2 | 2 | 6.5 |
MS160L-6 | 11 | 15 | 380/660 | 24.1/13.8 | 970 | 87.5 | 0.79 | 2 | 2 | 6.5 |
MS132S-8 | 2.2 | 3 | 220/380 | 10/5.8 | 710 | 85.5 | 0.71 | 2 | 2 | 5.5 |
MS132M-8 | 3 | 4 | 220/380 | 13.3/7.7 | 710 | 82 | 0.72 | 2 | 2 | 5.5 |
MS160M1-8 | 4 | 5.5 | 380/660 | 10.2/5.8 | 720 | 81 | 0.73 | 2 | 2 | 6 |
MS160M2-8 | 5.5 | 7.5 | 380/660 | 13.6/7.8 | 720 | 83 | 0.74 | 2 | 2 | 6 |
MS160L-8 | 7.5 | 10 | 380/660 | 17.7/10.1 | 720 | 85.5 | 0.75 | 2 | 2 | 6 |

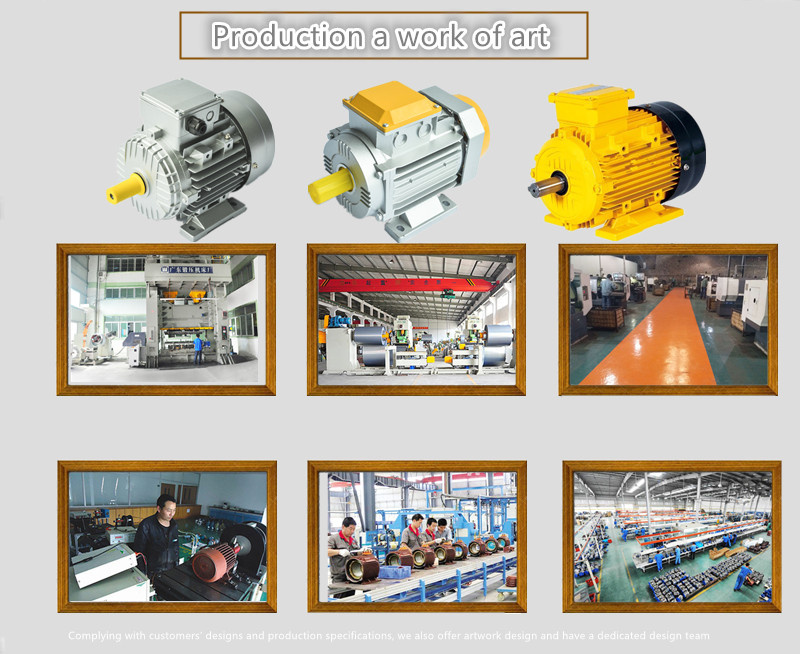

3.-PUNCH-TESTING-WORKSHOP


4.-FAIR

5.-PACKAGE AND TRANSPORT


FUDING BROTHERS POWER Co., Ltd. A key enterprise of electric machinery territory, assembling exploitation, manufacture, marketing into one whole was established in 2006. To remain invincible in domestic and international competitions, We have to persist in our own principle. With manpower demand, pioneering innovation, consummate management, mutual benefit as enterprise's conception, with high quality, reasonable price, honesty and credit as our terminal goal.
With the development of business trade and great effort on research and improvement, we have formed the foundation-stone for the today's product range including three core product lines. They are specialized in producing A. C. Alternators, Diesel Generator sets, Electric Motors and spare part Carburetor. All of them adopted the topmost quality materials, updated designs and met the IEC standard.
The marketing target of reasonable price made us owning the comprehensive recognition and reliability from the wordwide customers. Our marketing shares are covering all over the world, such as South-East Asian, European Union, Poncho, Canada, America and Hong Kong.
Since the founding of FUDING BROTHERS POWER Co., Ltd, we have spared no effort to promote the common development and progress of business relationship for our sincere trade companions both at home and abroad.
Therefore, my esteemed Guests and Friends, we would always at your services and try our best for your esteemed order.
