| Prod Model: |
MS2-D2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Cherry Micro Switch |
| Current: |
10A/5A/3A |
| MOQ: |
1000PCS |
| Actuator: |
Long Lever |
| Pressing Type: |
Lever Roller |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Application: |
Home Appliance |
| Brand: |
Yz |
Product Description
Cherry Micro Switch

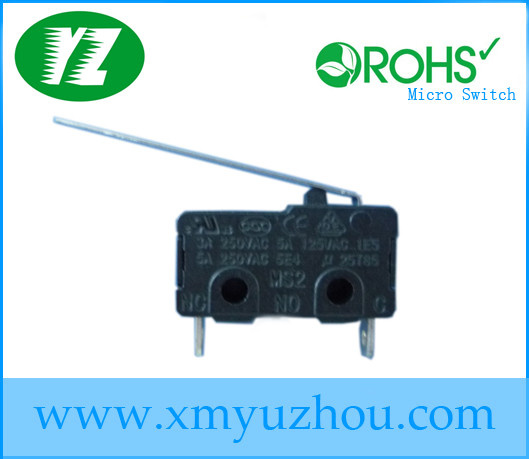

(MS2-D2) Electric Cherry Lever Micro Switch
Characteristics and usage of Cherry Micro Switch:
*Safe reliable miniature switch.
*Long life and high reliability.
*Variety of contact terminals and actuators.
*Small contact gap, high sensitivity and small operating travel;
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic and quick action.
Applications of Cherry Micro Switch:
Apply to telephone, air conditioner, computer, humidifier, alarm, time recorder, sloder gun, fax machine. Joystick, juice maker, mixer, toy cat, light, electric pot, ect.
Why Us:
1: Excellent quality with competitive price.
2: Qualit guaranty, we have good quality control team and precision testing machine to control the quality seriously.
3: Short lead time and sample order for testing is available.
FAQ of (MS2-D2) Electric Cherry Lever Micro Switch:
1. Q: Do you have a price list?
A: We do not have a price list, however you can contact customer service and they can supply you with the pricing that you need.
2. Q: What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. Paypal is also available.
3. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
4. Q: What about the package?
A: All use thickening export carton.
5. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
6. Q: How long to make new samples?
A: Normally, it takes 7-14 days to make new samples.
7. Q: How about your minimum order quantity?
A: MOQ is 1000pcs.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...If not by sea or by air transport.
Parameters of Cherry Micro Switch:
| Item | Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
≥100 MΩ (500VDC) |
Contact resistance |
OF>0.5N:≤30mΩ(see note)
OF≤0.5N:≤50 mΩ(see note) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC1500V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=1000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature | -25~+85 Degree 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.1.6g(No lever) |
