| Prod Model: |
MSD100 |
| Item Name: |
High Speed High Precesion AC Servo Drive |
| Meet: |
En, UL, cUL Standards |
| Waterproof: |
Yes |
| Dustproof: |
Yes |
| Wide Speed Range: |
The Maximum Is 6000r/Min |
| High Precision Positioning: |
Can Reach 0.009 |
| High Reliability: |
All Use Internation Brands IC |
| Support: |
RS485, Can, USB etc, Port |
| Structure: |
All Closed, Self-Cooling(Protection Grade IP65) |
| Fixed Output: |
Servo Alarm |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
1/3 Phase |
| Function: |
AC Servo System |
| Brand: |
Machtric |
Product Description

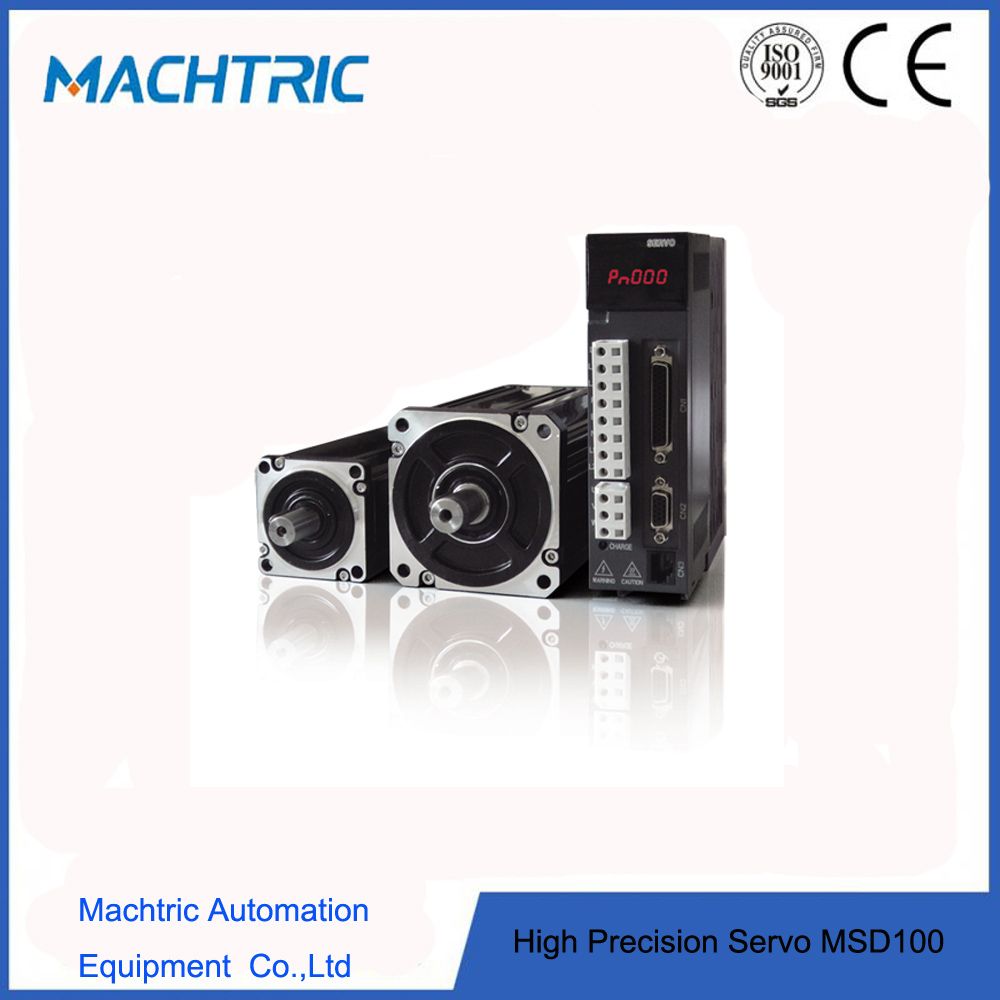

MSD100 Environmental Safety Waterproof Dustproof AC Servo Drive
Download our MSD100 Servo Drive from here: https://drive.google.com/file/d/0B6CaUFVdbNQVeWZ6WHZxbWt3Q00/view?usp=drive_web
1.Product Advantages: 1)to realize high speed and high precision
2)Compact and flexible
3)Environmental safety
4)Match with overseas standard
2.Other Features: Wide speed range,the maximum is 6000r/min
High precision positioning,can reach 0.009
High reliability ,all use international brand IC
Fast response frequency,strong overload capacity,no overshoot
Low frequency,large torque output
Anti-interference and self-protection are strong
The Garman instrument motor control dedicated floating-point processor,speed of operation is high to 150MHZ
Support RS485,CAN,USB,etc. port
The ATE automatic detection system,the product quality is reliable
Card type ultrathin structure,the apperance is beautiful,structure is compact
According to the customer's requirement,developed to meet the needs of customers.
3.Servo Drive's Working Current| Servo drive type | continous output effective current (A) | the maximum ouput effective current (A) | Power Supply Voltage (V) |
| MSD100-20A-2 | 1.6 | 4.8 | 1PH/3PH-220 |
| MSD100-40A-2 | 2.8 | 8.4 | 1PH/3PH-220 |
| MSD100-70A-2 | 3.8 | 11.4 | 1PH/3PH-220 |
| MSD100-150A-2 | 9.0 | 27 | 1PH/3PH-220 |
| MSD100-200A-4 | 8.4 | 25.2 | 3PH-380 |
| MSD100-350A-A | 12.0 | 36 | 3PH-380 |
| MSD100-500A-34 | 17.0 | 51 | 3PH-380 |
| MSD100-700A-4 | 21.0 | 63 | 3PH-380 |
| MSD100-900A-4 | 26.0 | 78 | 3PH-380 |

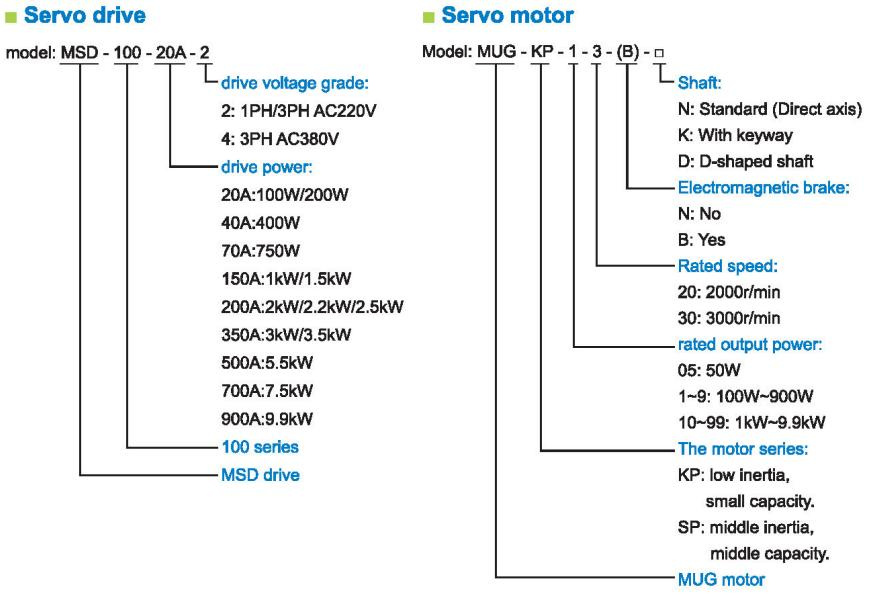

4.Nameplate

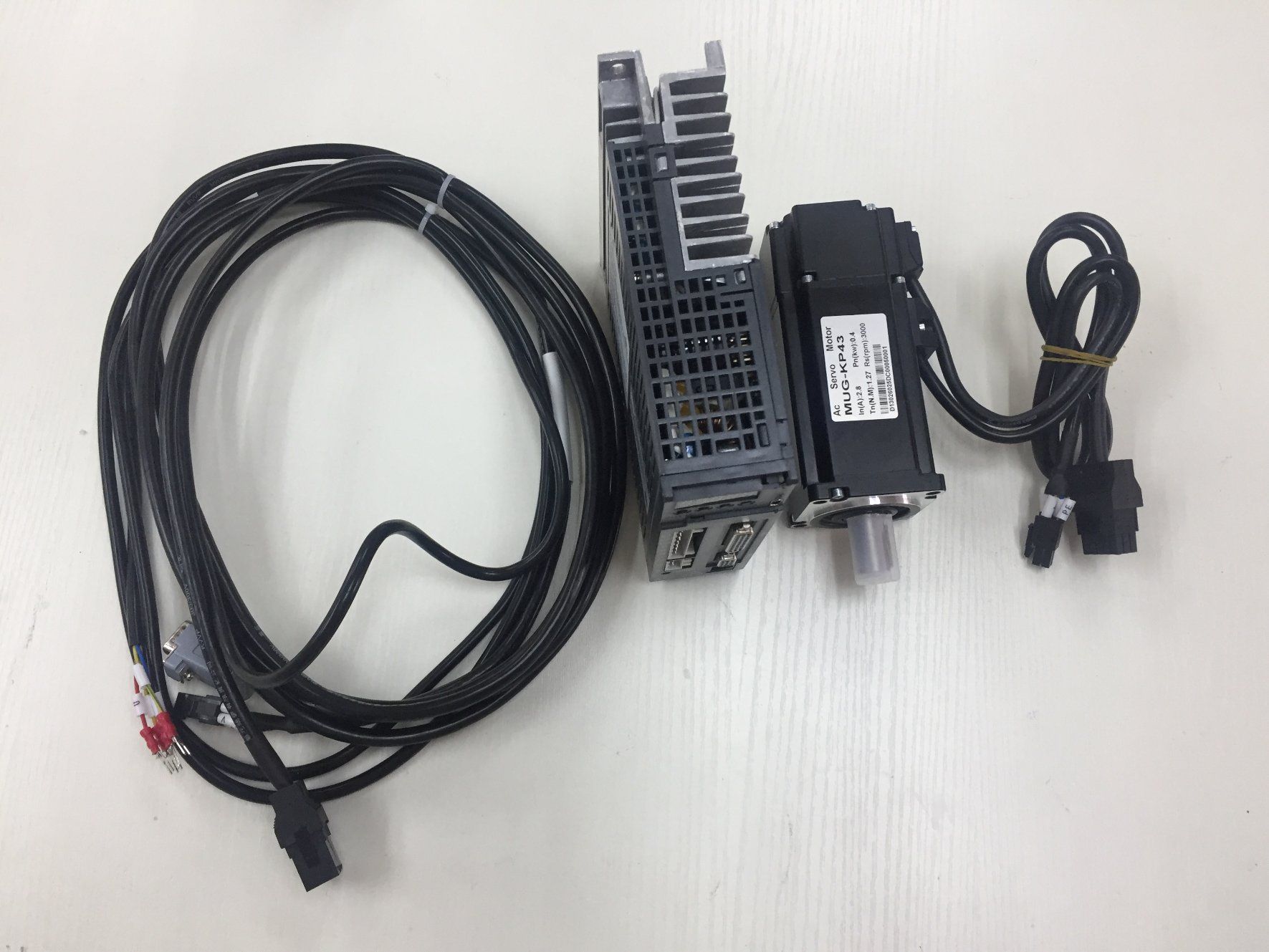

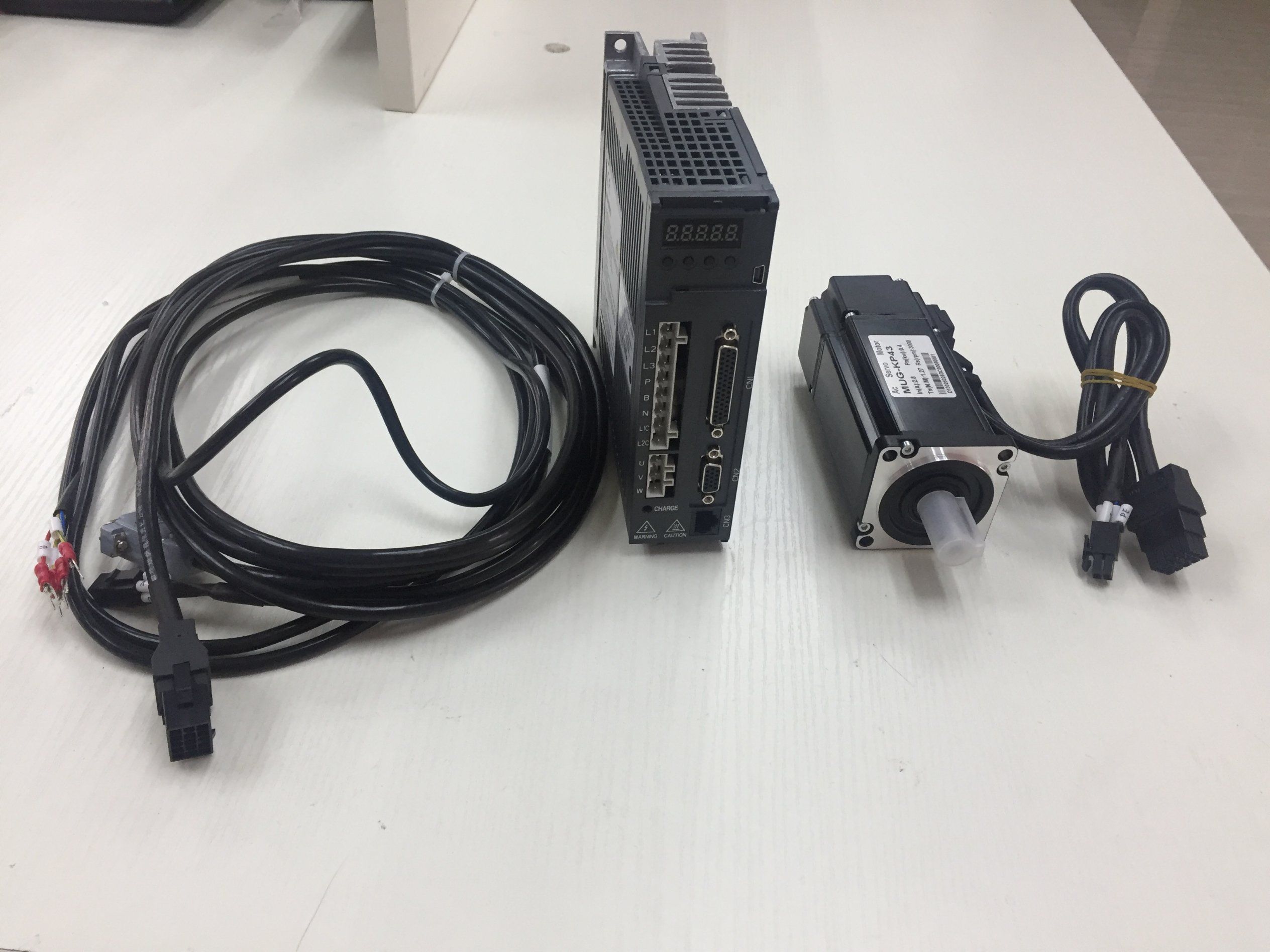

5.Product Show:
6.Contact Us:
