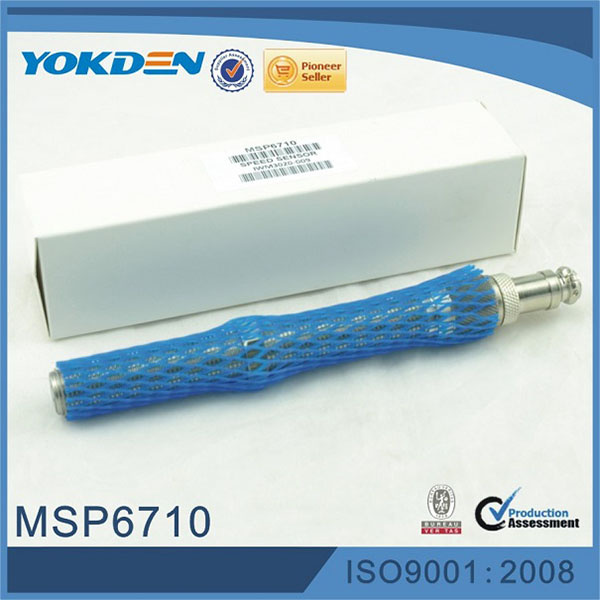

MSP6710 Magnetic Speed Sensors for Generator

Prod Model:	MSP6710
Color:	Silver White
Weight:	0.1kg
Package:	Carton Box
Warranty:	1 Year
Stock:	Yes
Size:	Standard Size
Inductance:	142mh+25%
Thread Size:	5/8-18 Unf-2A
Resistance:	300 Ohms Maximum

Product Description

                                MSP6710 Magnetic Speed Sensors
Specifications:

Inductance	142MH+25%
Resistance	300 Ohms Maximum
Thread Size	5/8-18 UNF-2A
Proximity to Gear Teeth	0.025-0.035in.(0.64-0.89mm.)
Temperature Range	-55ºC to 105ºC
IDLE Ouput	1.5 volts AC minimum
Max Output	30 volts AC


MSP674    3" w/o Matting Half Connector / High Output
MSP675    3" w 7" Leads
MSP676    5" w 12" Leads
MSP677    3" w/o Mating Half Connector
MSP678    5" w/o Mating Half Connector
MSP679    3" Mating Half Connector / Weather Boot


We can produce Magnetic pickup according to customer's requirement.

We also provide many other models of other sensors


1. SENSOR suitable for engines

2.Warranty time: 6 months to 1 year at least on the base of right using

3. Neutral packing or your desired packing

4. Hight quality, 100% factory tested before delivery

5. Competitive prices and timely delivery

6. Sample order accepted

7. Good after-sales servive

8. Continue to develope new products all the time
