| Prod Model: |
MSP675 |
| Color: |
Silver White |
| Weight: |
0.1kg |
| Package: |
Carton Box |
| Warranty: |
1 Year |
| Stock: |
Yes |
| Size: |
Standard Size |
| Thread Size: |
5/8-18 Unf-2A |
| Resistance: |
300 Ohms Maximum |
Product Description

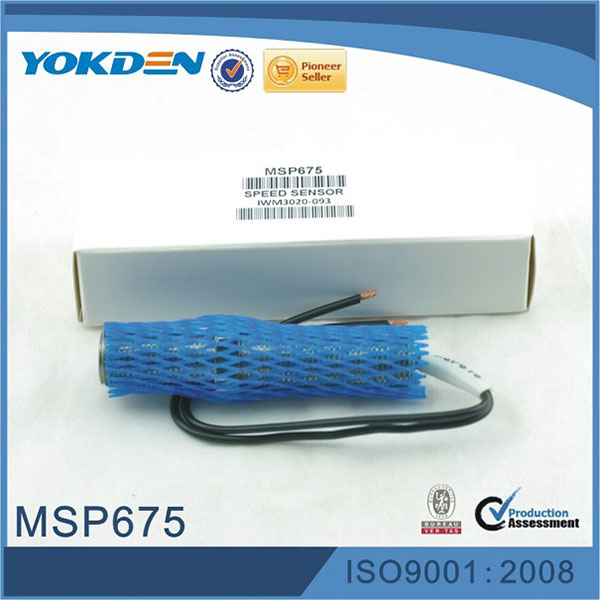

MSP675 Magnetic Speed Sensors
*The magnetic speed sensor indicates when ring geat teeth, or other ferrous projections, pass the tip of the sensor.
*Electrical impulses are induced within the coil and sent to the speed control unit.
*The signal from the magnetic speed sensor, teeth per second(HZ), is directly proportional to engine speed. The
magnetic speed sensor is mounted in the ring gear case or fly wheel bell housing of the engine.
*The threaded hole for the speed sensor should be perpendicular to the centerline of the crankshaft and centered over the
ring gear teeth.
*A spot face should be present to provide a flast surface on which to anchor the locknut.
*With the engine stopped, screw the speed sensor in until it touches a gear tooth, then back it out 0.75 of a turn and
secure it with the locknut.
*Any ferrous gear may be used as long as the frequency and amplitude of the resulting signal meet the speed control unit
specifications.
*The wire leads should be twisted for their entire length from the magnetic speed sensor to the control unit.
*The leads may need shielding if they are longer than 10 ft(3m), or if external interferenceis present.
Do not connect either of the speed sensor leads to anything but the speed control unit used. The shield should not be connected
at the speed sensor end.
Item Pickup Length Thread Length Lead Length Thread Size Drill Size
MSP675 3.125" 2.75" 7.00" 5/8-18 UNF-2A 37/64
MSP676 5.0" 4.625" 12.00" 5/8-18 UNF-2A 37/64
Magnetic Speed Sensors are with Wire Leads
| Picu up MSP675 5/8-18UNF-2A |
| Picu up MSP676 5/8-18UNF-2A |
| Picu up MSP677 5/8-18UNF-2A |
| Picu up MSP678 5/8-18UNF-2A |
| Picu up MSP6729 3/8-24UNF-2A |
| Picu up MSP6719 5/8-18UNF-2A |
| Picu up MSP6714 M16x1.5 |
| Picu up MSP6724 3/4-16 UNF |
| pick up 3034572 5/8-18UNF-2A |
We also provide many other models of other sensors
1. SENSOR suitable for engines
2.Warranty time: 6 months to 1 year at least on the base of right using
3. Neutral packing or your desired packing
4. Hight quality, 100% factory tested before delivery
5. Competitive prices and timely delivery
6. Sample order accepted
7. Good after-sales servive
8. Continue to develope new products all the time
