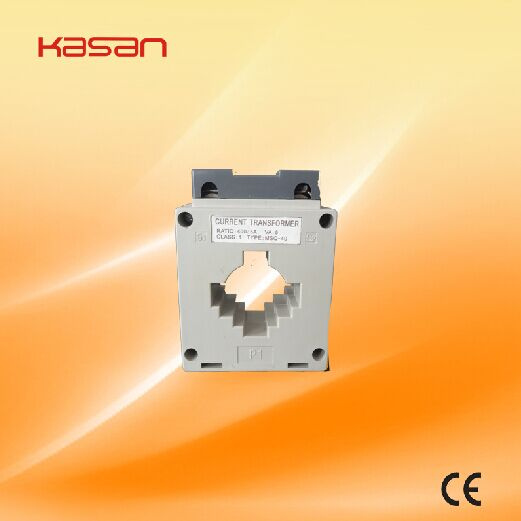

Msq-60 Msq 11kv 415V Current Transformer

Name: Msq-60 Msq 11kv 415V Current Transformer
Brand: all-electronics-online.com
SKU: 704706722
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage.:	Power
Color:	White/Gray/Red
The Material Of Body:	PA6/ABS
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

MSQ series Current Transformer
1,Summarize
This type of current transformer is plastic shell , fully closed structure and indoor using products . For rated frequency is 50HZ or 60HZ and rated below 0.66 KV power system for current and energy measurement . This Products comply with IEC60044-1 ; 2003 and GB1208-2006 Current Transformer standard.

2, Useing Condition
1,Altitude ≤ 1000km
2,Ambient temperature ≤ 40,≥-5
3,Ambient relative air humidity ≤ 85%(20)
4,Installation site prohibit the following things:
Gas which seriously affecting the insulation transfomer
Steam ; Chemical deposition ; Contamination
Other explosive or corrosive media

3, Structure Introduction
This series current transformer is ABS flame-retardant plastic shell fully closed structure, It made the product less susceptible to moisture. Permeability material adopt toroidal core which via annealing testing to ensure products accuracy of 0.2 or 0.5. The application of Superconducting magnetic materials makes the product achieve the same volume level del 0.2 S or 0.5 S plan and Can make the products in a wide current of 1%-120% accurate measurement under load . The primary is P1 ,P2,secondry is S1, S2. When the primary current flows P1 to P2 , then the secondary current through the external circuit flows from S1 to S2 ,is subtractive polarity.

Type	Rated current(A)	Rated power(VA)		Weight(kg)
Type	Rated current(A)	Class:0.5	Class:1	Weight(kg)
MSQ-30	100/5	-	5	0,60
MSQ-30	150/5	5-10	5-10	0,60
MSQ-30	200/5	5-10	5-10	0,60
MSQ-30	250/5	5-10	5-10	0,60

Type	Rated current(A)	Rated power(VA)		Weight(kg)
Type	Rated current(A)	Class:0.5	Class:1	Weight(kg)
MSQ-40	300/5	5-10	5-10	0,38
MSQ-40	400/5	5-10	5-10	0,38
MSQ-40	500/5	5-10	5-10	0,38

WINDOWS TYPE

Type	Rated current(A)	Rated power(VA)		Weight(kg)
Type	Rated current(A)	Class:0.5	Class:1	Weight(kg)
MSQ-60	600/5	5-10	10-15	0,60
MSQ-60	650/5	5-10	10-15	0,60
MSQ-60	600/5	5-10	10-15	0,60
MSQ-60	1000/5	15	10-15	0,60
