Mt90 Mini Station GSM FWT, GSM Gateway, GSM Voice Box (MT90)

Name: Mt90 Mini Station GSM FWT, GSM Gateway, GSM Voice Box (MT90)
Brand: all-electronics-online.com
SKU: 678706575
Availability: InStock
Rating: 4.4 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CPT
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MT90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	0.6kg
Size:	18513522mm
Ports:	2
Type:	GSM
Usage:	POS Terminal

Product Description

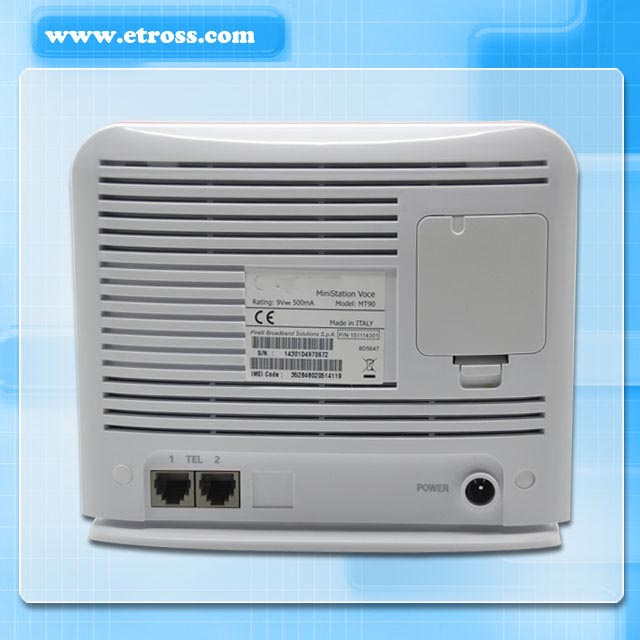

MINI STATION VOICE MT90 is a GSM to Analog Converter(single port, insert 1 SIM card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landlin(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect PBX for call extentions, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc. It is not a VoIP gateway, nor a GSM+VoIP gateway, It is a GSM Fixed Wireless Terminal that produces a Analog FXS phone line.

Material ABS (Acrylonitrile Butadiene Styrene)
Dimension 170mm×118mm×30mm internal antenna

Weight 400g Weight of Main unit

Power Switch No

Power Socke 9V DC input

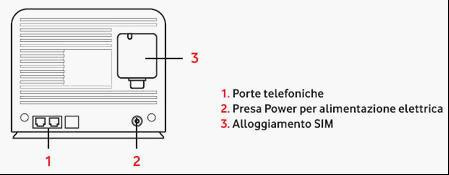

Phone interface RJ11 2 RJ-11 ports

MiniStation

· a GSM modem that allows you to use only the voice service through the use of a SIM;
· compatible with all phones that work mode 'tone (no rotary phone);
· connected through a standard cable;
· equipped with two phone ports (Phone 1 or Phone 2), but you can connect one phone.

In the box
By signing the offer MiniStation receive a package containing:

Also:
· a user manual (quick start guide);
A dedicated SIM

Application:

1) Connecting to Ordinary Telephone

Draw your attention: Because there are many types of ordinary telephone and their electric parameters are different. In order to avoid mutual disturbance between telephone and terminal and affect voice quality. The distance between telephone and terminal is 1.5m at least.

2) connecting to PBX for call extentions

If users want to connect small PBX to this terminal, connect terminal's "Phone port" to the PBX.

3) connecting VoIP gateway for Call Termination

Suppose a VoIP call originates from US, which was transferred from US Server to China Server on VoIP, finally the call will be terminated from internet to GSM network and to be sent out to the destination answer side.

4) connecting to alarm system for Security

The GSM FWT can substitute the PSTN for connecting to alarm system for security purpose when PSTN failure or not available.
