MTP/MPO Fiber Trunk/Fanout/Breakout Cable/Patch Cord/Patch Cable

Name: MTP/MPO Fiber Trunk/Fanout/Breakout Cable/Patch Cord/Patch Cable
Brand: all-electronics-online.com
SKU: 806226745
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MTP/MPO
Fiber Type:	Single Mode or Multi-Mode
Connector Type:	MPO/MTP
Feature:	Low Insertion Loss, High Return Loss
Operating Wavelength:	1300/850nm
Cable Diameter:	0.9mm, 2.0mm, 3.0mm
Cores:	8, 12, 24 Cores
Polishing:	PC, Upc, APC
Operating Temperature:	-40°c~80°c
Cable Length:	1m, 3m, 5m or Customized
Leading Time:	Depends on Qty
Application:	Communication
Type:	Multi-mode Fiber
Certification:	CCC
Connection Structure:	MTP / MPO
Sheath Material:	Ofnr/LSZH/Ofnp

Product Description

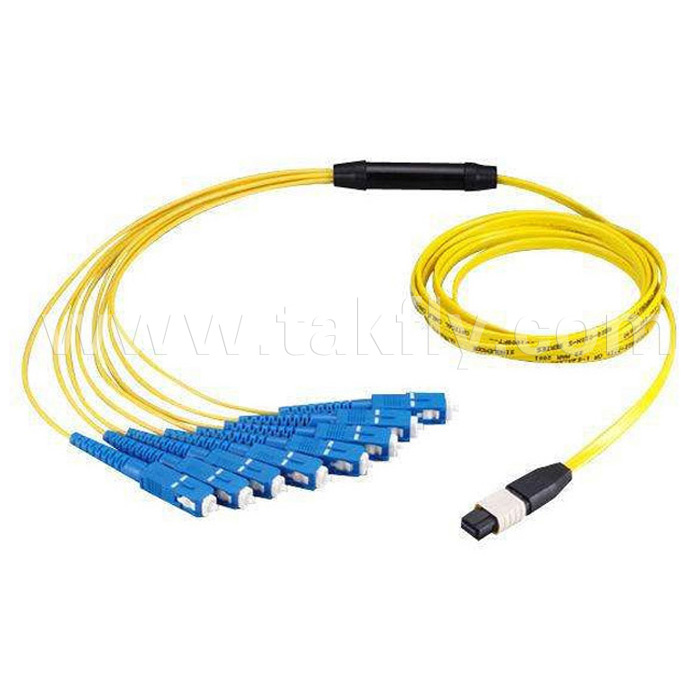

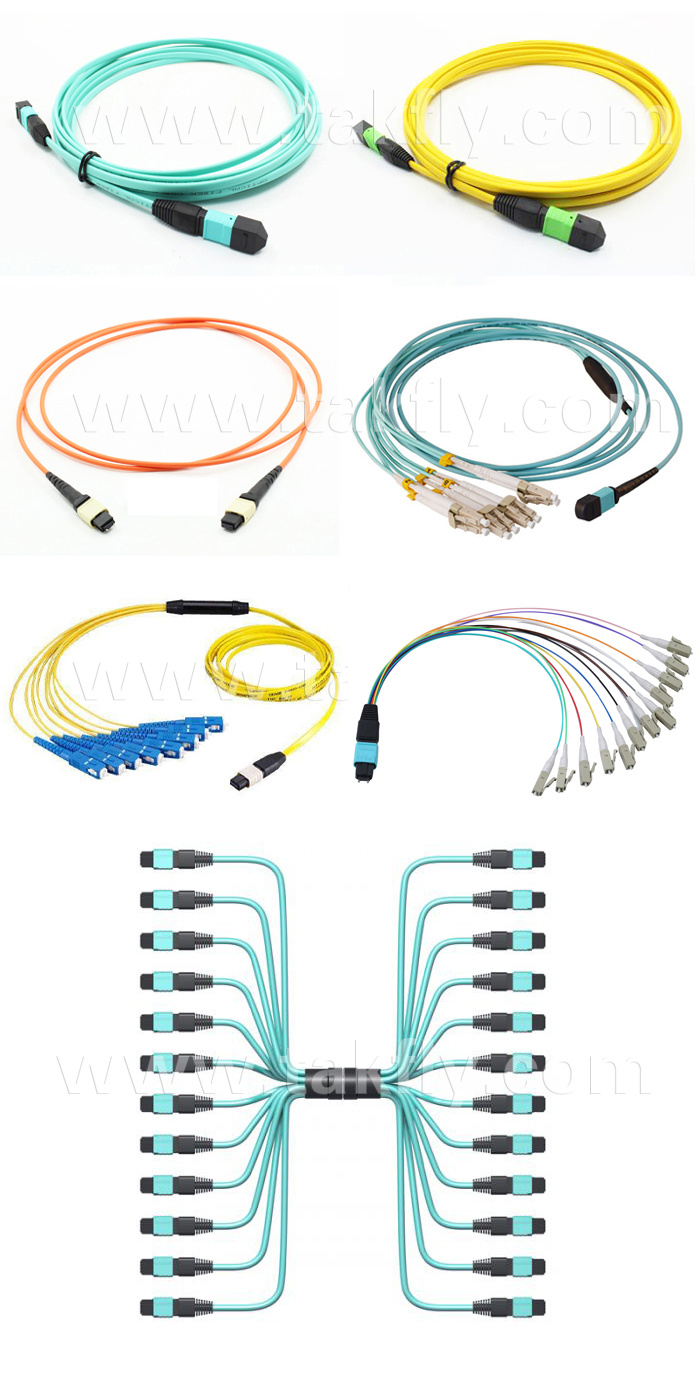

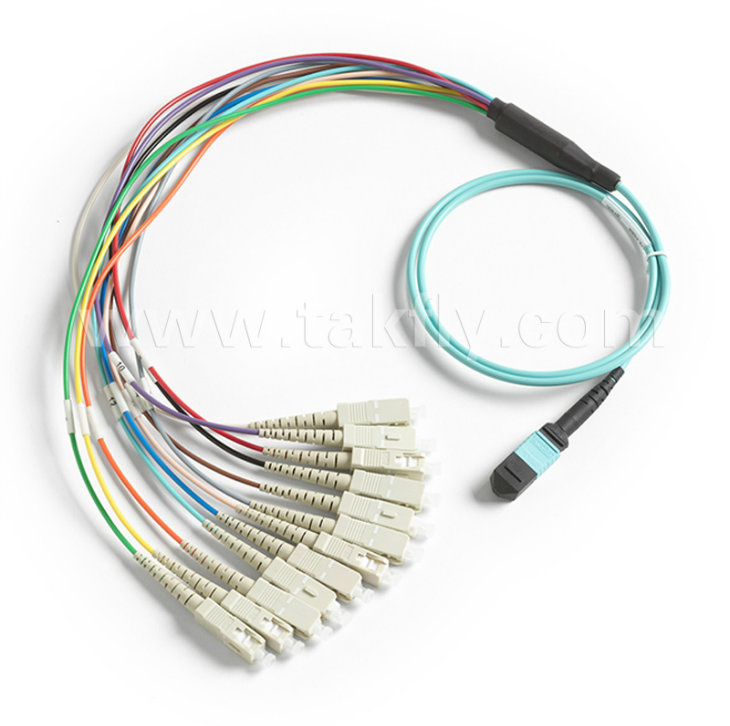

MTP/MPO fiber trunk/fanout/breakout cable/Patch Cord/Patch Cable

General Details:
Takfly MPO/MTP to MPO/MTP Patch Cable.It is a product designed for data center cable infrastructure, especially designed for 40G/100G network like 40G BASE-SR4 OR 100G BASE-SR10. This cable assembly with can be designed with 24 fiber cores in the MPO/MTP connectors on both side, or one end with 24 fibers in one end, in another end with 24 LC connectors.

Feature:
100% tested, high quality and reliabilityLow insertion lossSupport OM3, OM4, SM optic fiberSpecial specification available upon custom requestUtilize MPO/MTP ConnectorsRapid DeploymentFactory terminatedHigh density cableOptimized performanceCompliant to directive 2002/95/EC (ROHS) and REACH SVHCMPO connector complies with IEC-61754-7& EIA/TIA-604 -5

Application:
Data Center InfrastructureOptical system access networkStorage Area Network- Fiber Channel40G and 100Gbps Fiber NetworkHigh density architectures

Specification:
Performance of Assemblies: MPO/MTP Termination:

Fiber Type	Single Mode	Multi-mode
Fiber Count	8,12,24 Core
Standard Insertion Loss (dB)	≤0.7	≤0.5
Low Insertion Loss(dB)	≤0.35	≤0.35
Return Loss (dB)	≥60 (APC)	≥30 (PC)
	≥50 (PC)
Tensile Strength (kgf)	10
Durability (dB)	≤0.2 500 mating
Working Temperature (°C)	-40 ~ +85
Testing Wavelength (nm)	1310/1550		850

Generic Connector Termination:

Fiber Type	Single Mode		Multi-mode
Parameter	UPC	APC	UPC
Insertion Loss Maximum (dB)	≤0.3
Return Loss (dB)	≥50	≥60	≥35
Durability (dB)	≤0.2 500 mating
Working Temperature (°C)	-40 ~ +85
Testing Wavelength (nm)	1310/1550		850

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

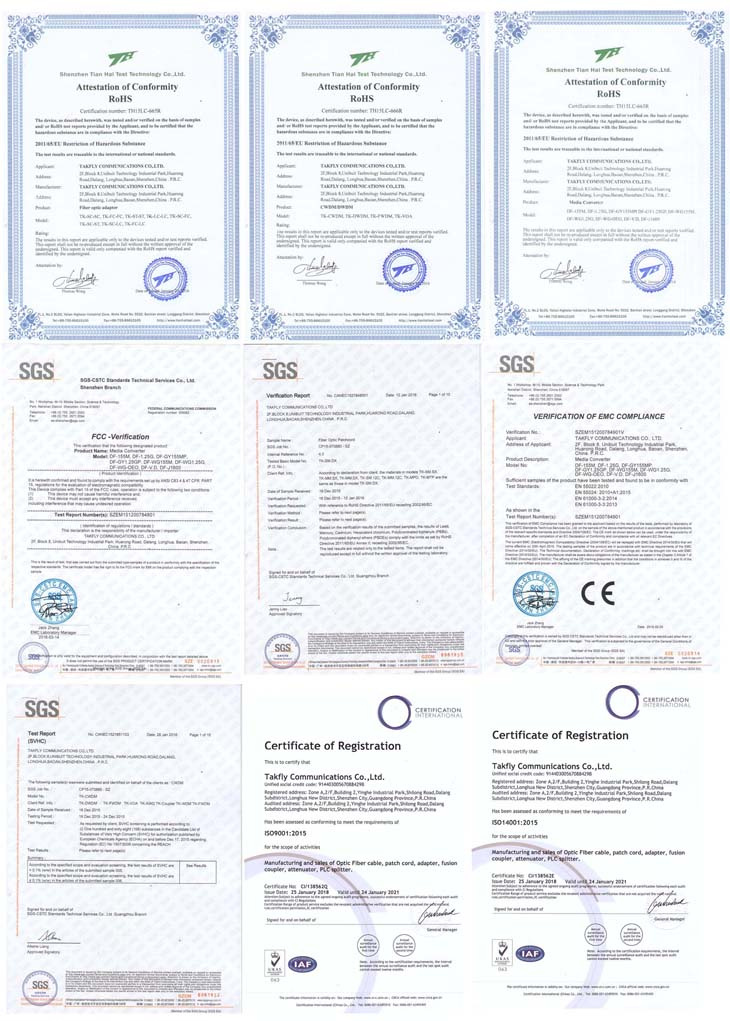

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

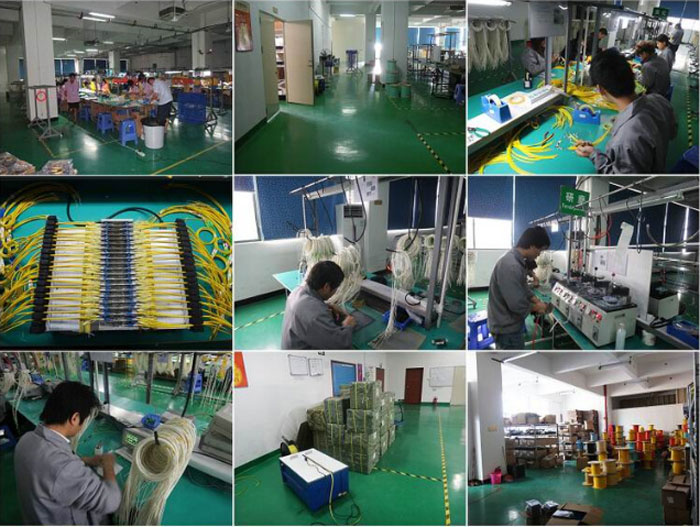

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
