MTP MPO Patch Cord/MPO Cable/MPO to LC/MPO Connector/MPO Fanout Cable/MPO Trunk Cable (MPO)

MTP MPO Patch Cord/MPO Cable/MPO to LC/MPO Connector/MPO Fanout Cable/MPO Trunk Cable (MPO)
Price: US $ 25/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Communication
Type: Single-mode Fiber
Certification: CCC
Connection Structure: MPO

Product Description

Product Description

Features:
· High Performance in Insertion Loss & Return Loss
· 4,8,12 and 24 fiber connector terminations and assemblies
· Designed for low loss and standard loss SM and MM applications
· Economical solution for mass-termination of fiber
· Suitable for MPO/MTP application
· Ruggedized round cable, oval cable and bare ribbon options available
· Color coded housings available to differentiate fiber type, polish type and/or connector grade

Compliance:
· IEC 61754-7& JIS C5982
· Structured cabling per TIA-568-C
· Parallel Optics
    - Optical Internetworking Forum (OIF) Compliant
    - Infiniband Compliant
· Infiniband
    - 10G Fiber Channel Compliant
    - 40G and 100G IEEE 802.3
    - QSFP

Applications:
· Optical switching inter-frame connections
· High fiber density card edge access
· Array trunk cables
· Datacenter cabling

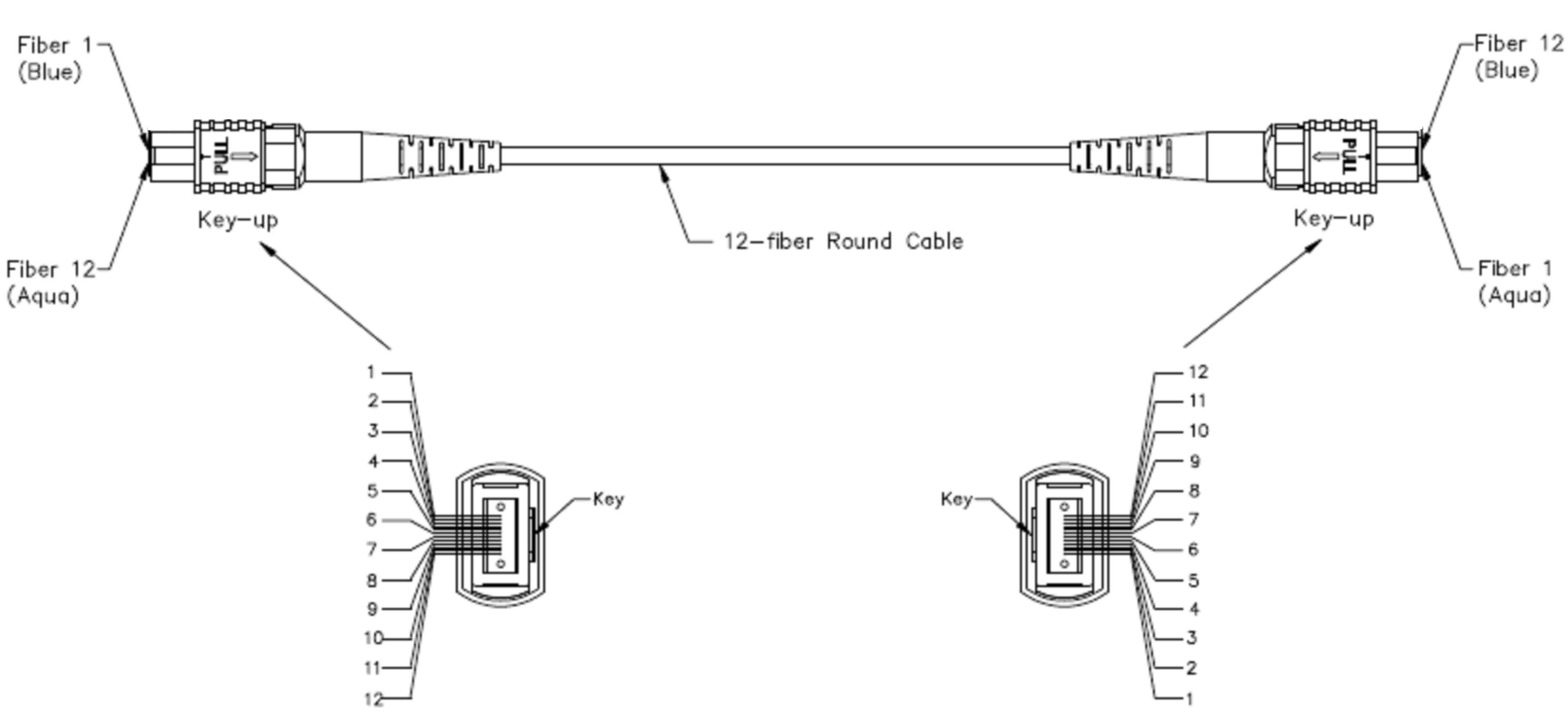

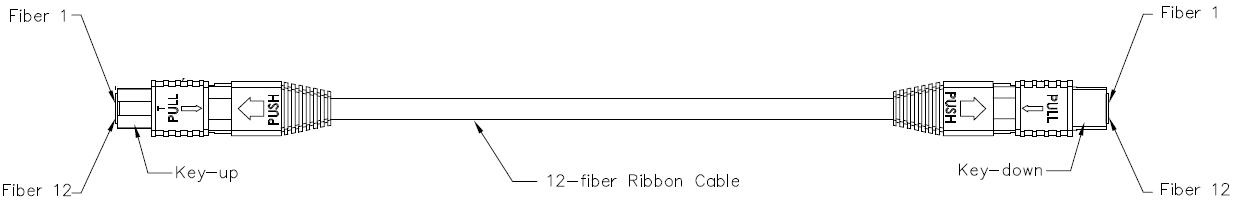

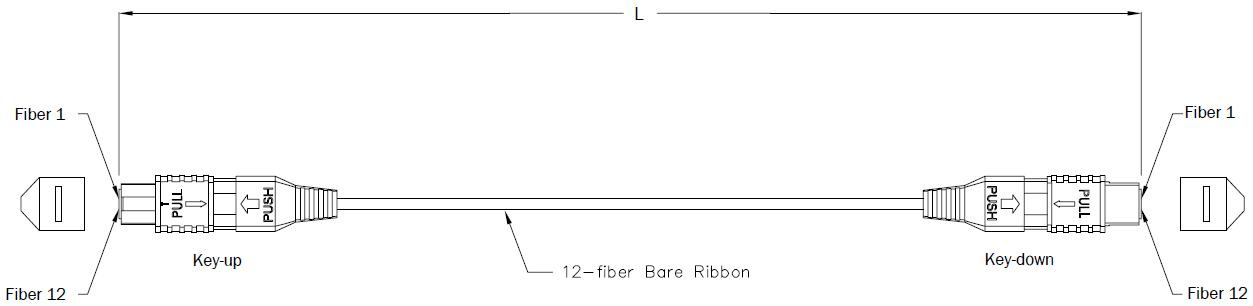

MPO Patch Cord Cable Assemblies
MPO Patch Cord Cable Assemblies
MPO Patch Cord Cable Assemblies
Specifications
Fiber TypeSingle mode (APC Polish)Multimode (PC/ Flat Polish)
ParameterStandardLow LossStandardLow Loss
Insertion Loss Maximum<0.7dB<0.35dB<0.7dB<0.35dB
Return Loss>60dBNone
Durability>500 Mating Cycles
Operating Temperature-40°C to 80 °C
Test Wavelength1310nm850nm

EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
