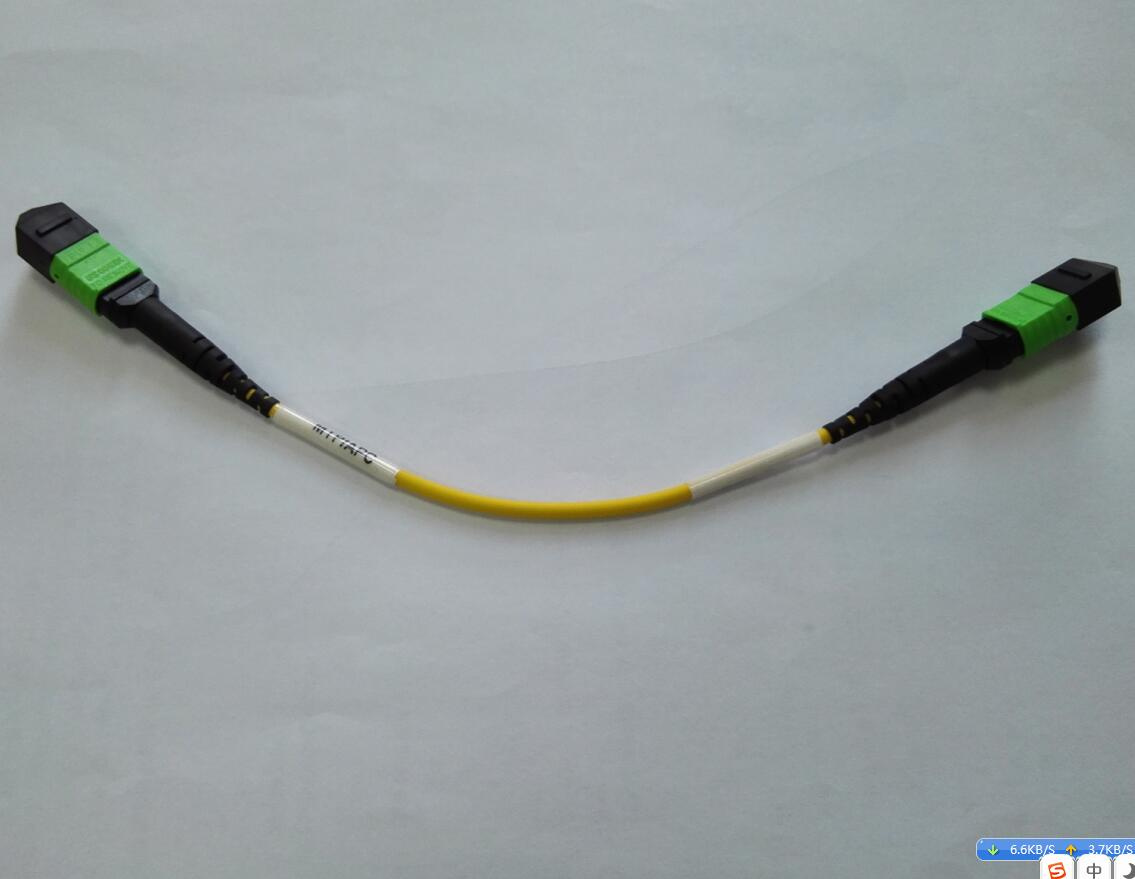

| Prod Model: |
MTP |
| IEC 61754-7 Compliant: |
Compact Design, up to 24 Fiber Ribbon |
| Length: |
0.5m, 1m,2m or Customized |
| Cable Type: |
Mini Cable, Ribbon Cable |
| Cable Jacket Color: |
Blue, Beige, Aqua, Black, Green, Yellow,Customized |
| Number Of Cores: |
Multi-Core |
| Transmission Medium: |
Singlemode, Multimode |
| Structure: |
MPO-MPO |
| Ferrule Endface: |
APC/PC |
| Connector Type: |
MTP/MPO |
| Brand: |
ODM |
Product Description
Product Description
APPLICATIONS
CATV, and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant
AVAILABILITY
Various fiber numbers available
Pigtail available
| Single mode | Multimode |
| Insertion Loss | Typical <=0.5dB, Maximum<=0.7dB | ≤0.5dB |
| Return Loss | ≥50 dB (PC) | ≥33 dB (PC) |
| Repeatability | ≤0.1 |
|
| Durability | ≤0.2 dB typical change, 1000 matings |
|
| Interchangeability | ≤0.2dB |
|
| Tensile strength | >70N |
|
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |
ORDERING OPTIONS
| Connector code | Hook Color | Boot Type | Fiber number | Fiber Type | Length |
| Male | Beige | Bare fiber short | 4-fiber | 9/125μm (SM) | Customized |
| Female | Black | Ruggedized ribbon cable | 8-fiber | 50/125μm (MM) |
|
| Green | Bare fiber long | 12-fiber | 62.5/125μm (MM) |
|
| Yellow | 90 degree | 16-fiber |
|
|
|
|
| 24-fiber |
|
|
