MTP Patch Cord Optical Fiber MPO

Name: MTP Patch Cord Optical Fiber MPO
Brand: all-electronics-online.com
SKU: 695186412
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TF-0214
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Optic Fiber MPO/MTP-Uniboot PA
General Names:	MPO/MTP Fiber Patch Cord
Byname:	Fiber Patch Cables
Cable Diameter:	0.9mm,2.0mm,3.0mm
Operation Wavelenghth(Nm):	1310/1550nm
Export Markets:	Global
Cable Length:	1m.3m.5m or Customized
Operating Temperature:	-40c~+80c
Fiber Mode:	Single Mode or Multi-Mode
Application:	FTTH, FTTB, LAN, CATV
Type:	Multi-mode Fiber
Certification:	CCC
Connection Structure:	MPO MTP
Core:	Simplex Duplex Quard

Product Description

MTP Patch Cord Optical Fiber MPO

General Details

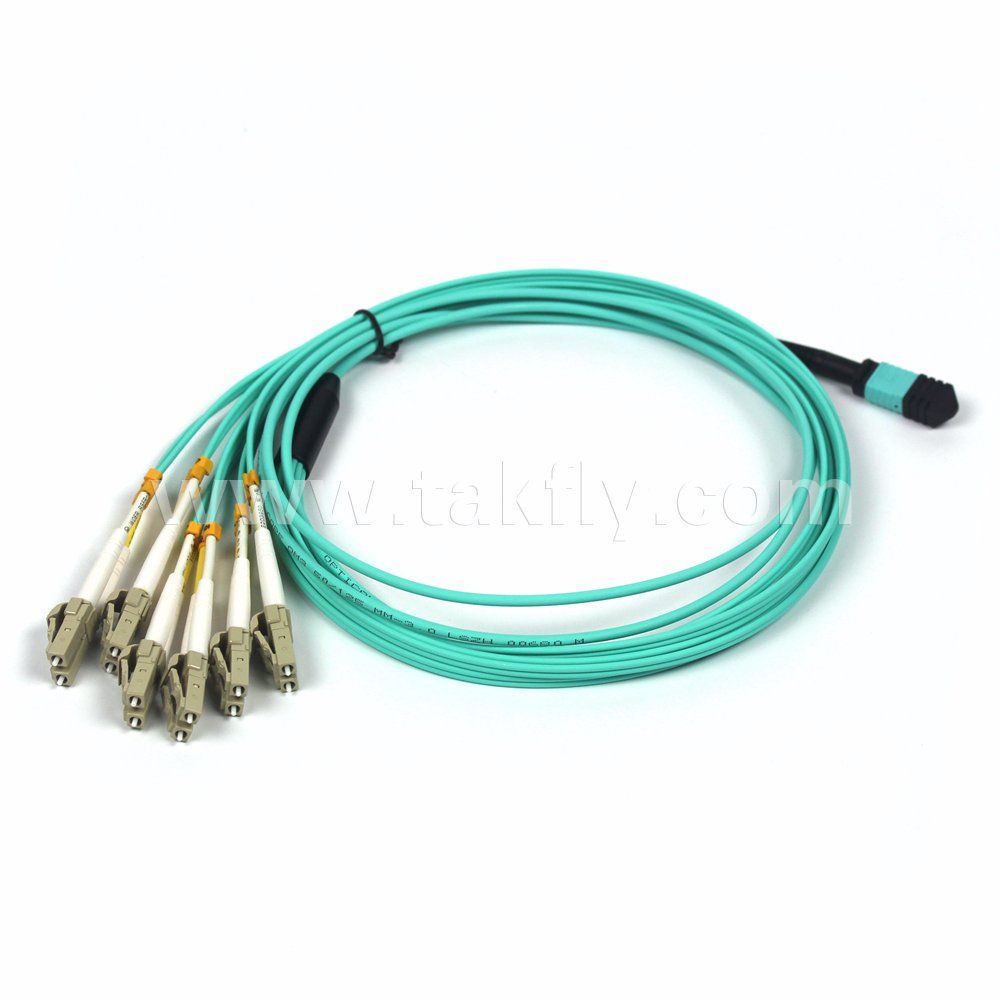

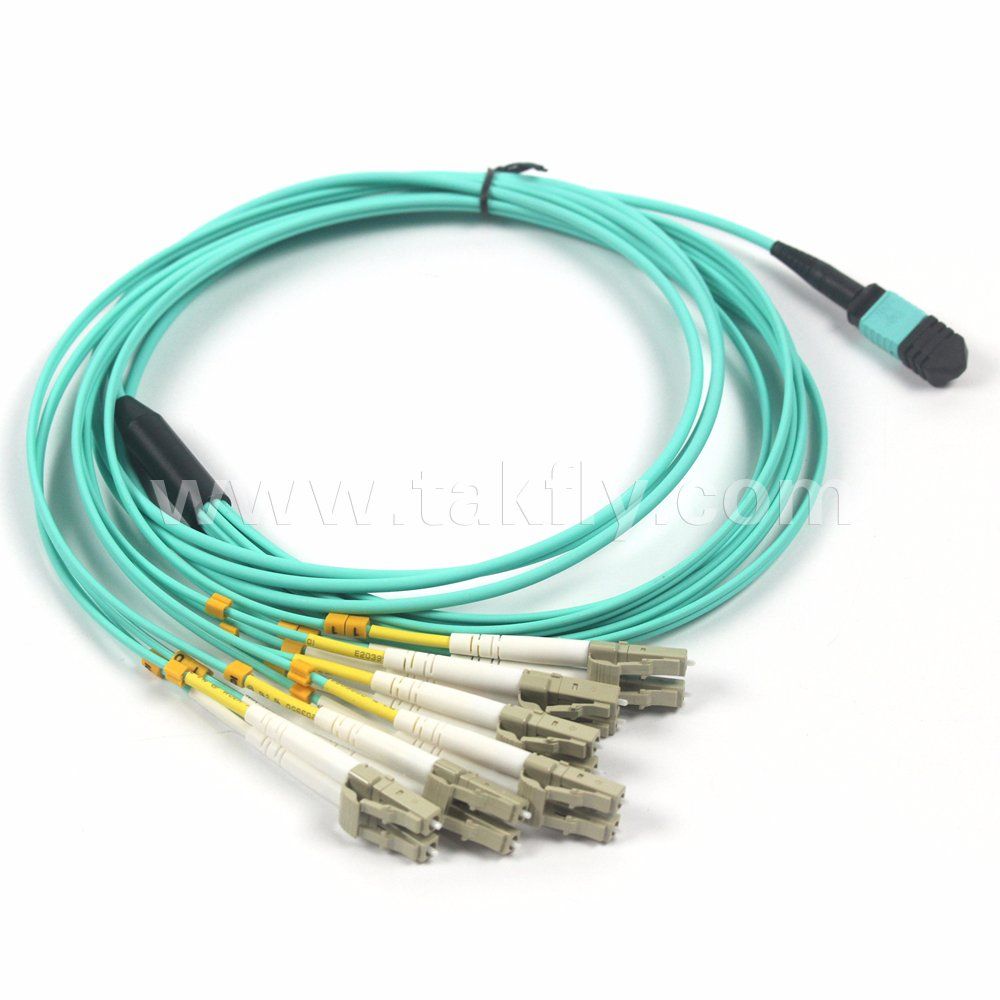

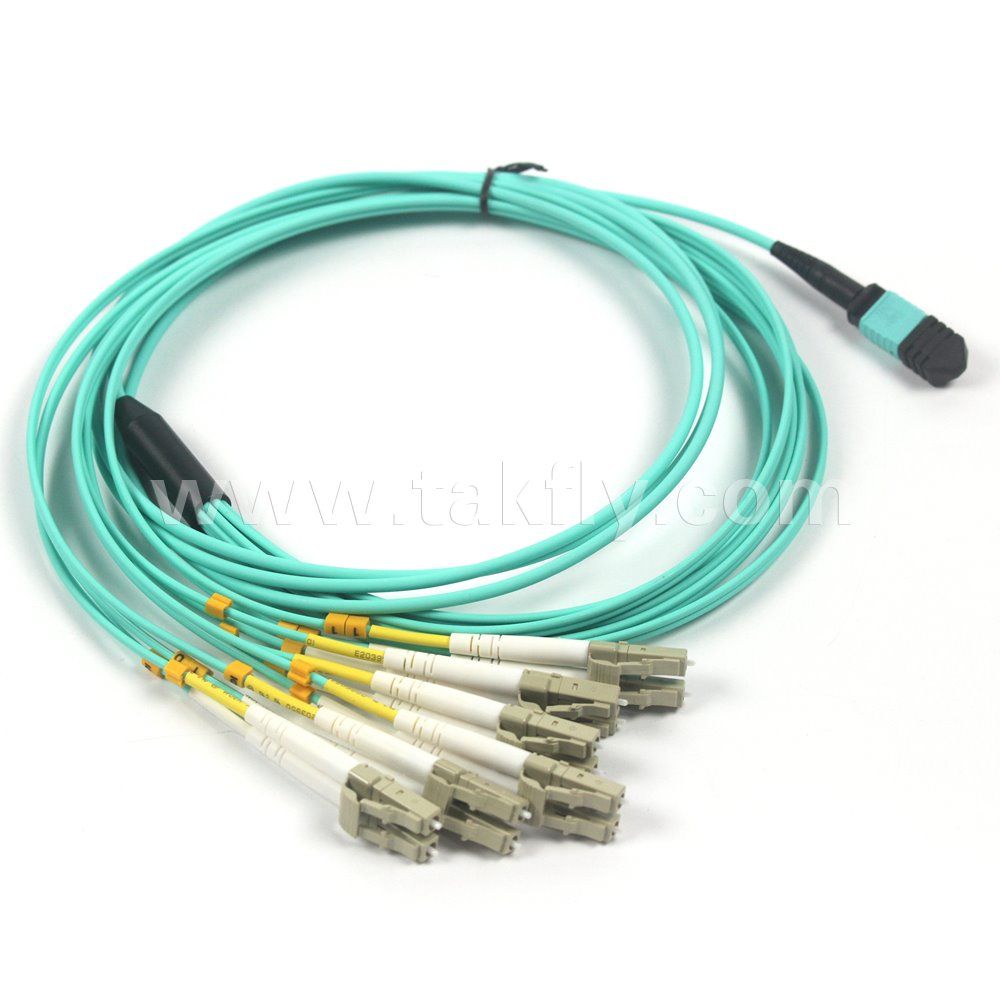

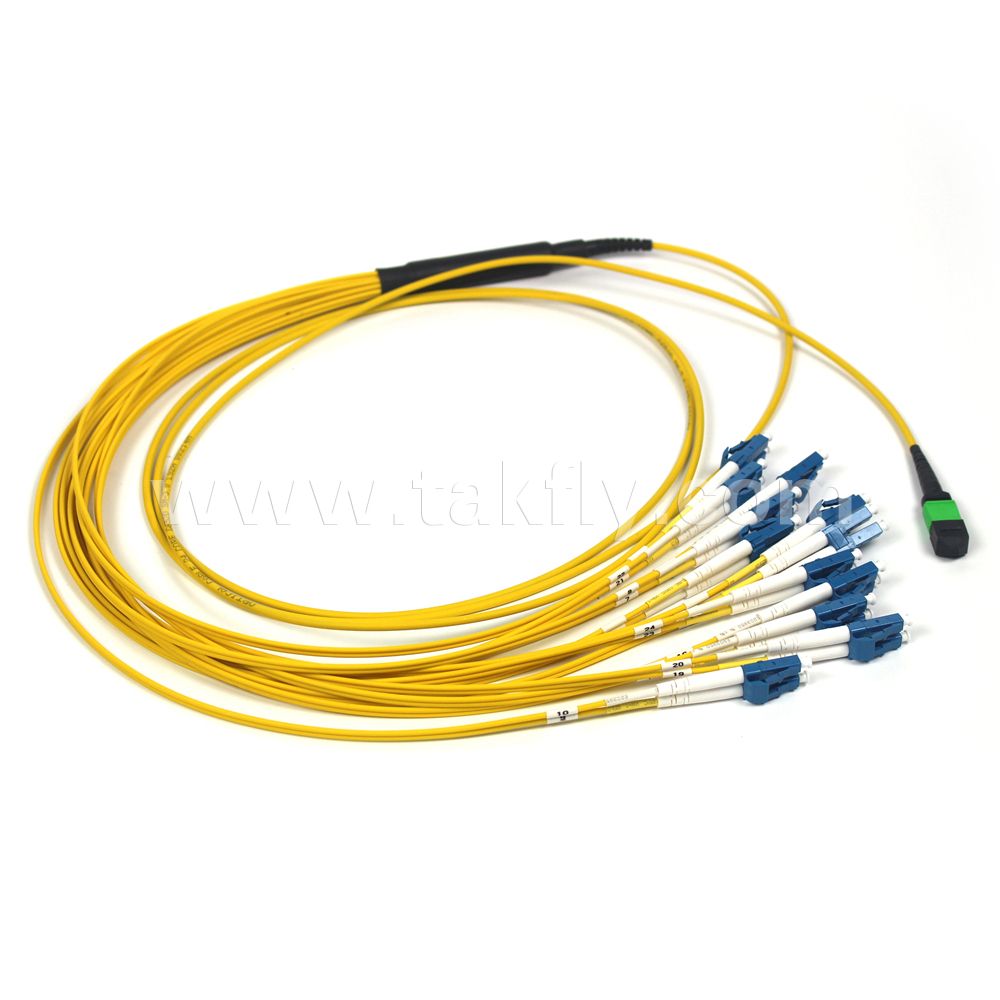

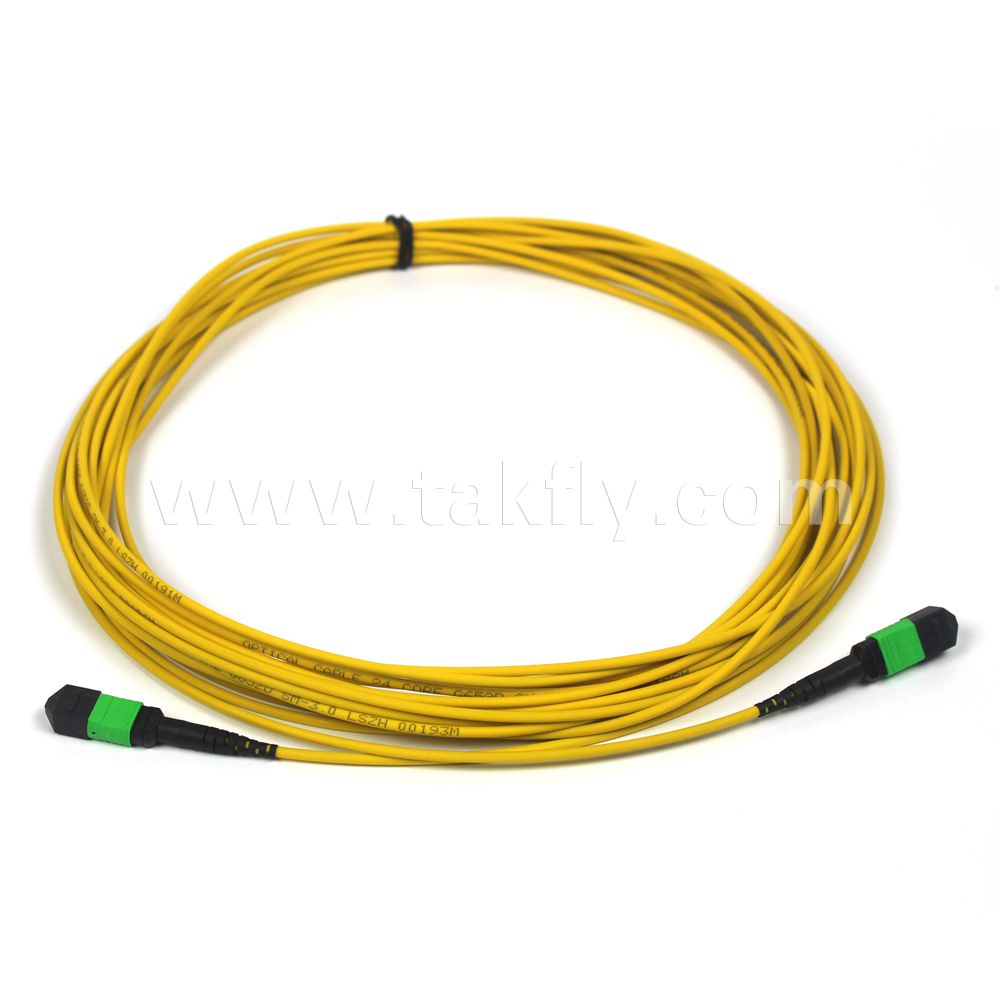

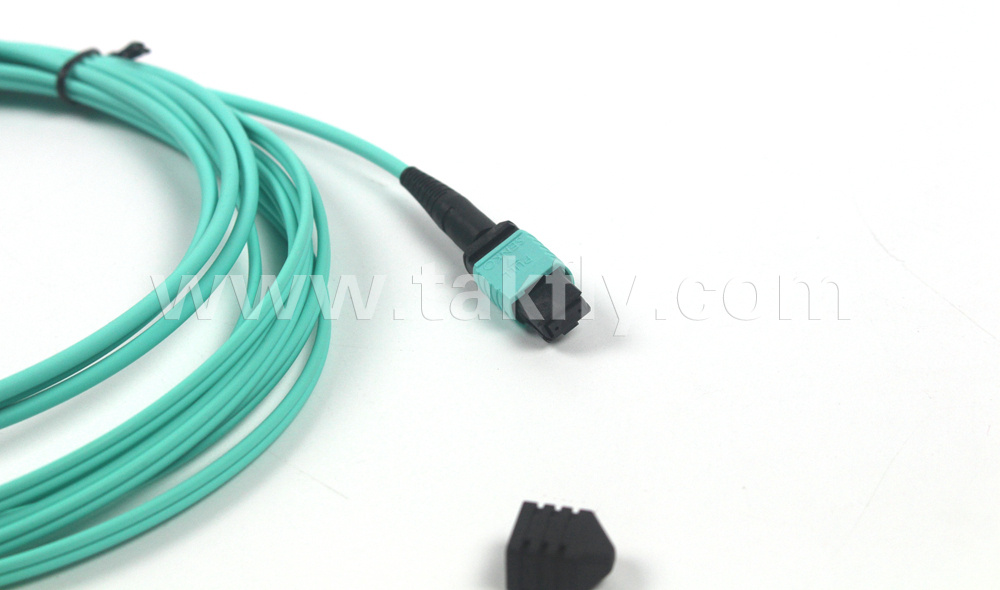

Takfly MPO/MTP to MPO/MTP Patch Cable.It is a product designed for data center cable infrastructure,
especially designed for 40G/100G network like 40G BASE-SR4 OR 100G BASE-SR10. This cable assembly
with can be designed with 24 fiber cores in the MPO/MTP connectors on both side, or one end with 24
fibers in one end, in another end with 24 LC connectors.

Feature

100% tested, high quality and reliability
Low insertion loss
Support OM3, OM4, SM optic fiber
Special specification available upon custom request
Utilize MPO/MTP Connectors
Rapid Deployment
Factory terminated
High density cable
Optimized performance
Compliant to directive 2002/95/EC (ROHS) and REACH SVHC
MPO connector complies with IEC-61754-7& EIA/TIA-604 -5

Application

Data Center Infrastructure
Optical system access network
Storage Area Network- Fiber Channel
40G and 100Gbps Fiber Network
High density architectures

Specification
Performance of Assemblies: MPO/MTP Termination:

Fiber Type	Single Mode	Multi-mode
Fiber Count	8,12,24 Core
Standard Insertion Loss (dB)	≤0.7	≤0.5
Low Insertion Loss(dB)	≤0.35	≤0.35
Return Loss (dB)	≥60 (APC)	≥30 (PC)
	≥50 (PC)
Tensile Strength (kgf)	10
Durability (dB)	≤0.2 500 mating
Working Temperature (°C)	-40 ~ +85
Testing Wavelength (nm)	1310/1550		850

Generic Connector Termination:

Fiber Type	Single Mode		Multi-mode
Parameter	UPC	APC	UPC
Insertion Loss Maximum (dB)	≤0.3
Return Loss (dB)	≥50	≥60	≥35
Durability (dB)	≤0.2 500 mating
Working Temperature (°C)	-40 ~ +85
Testing Wavelength (nm)	1310/1550		850

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
