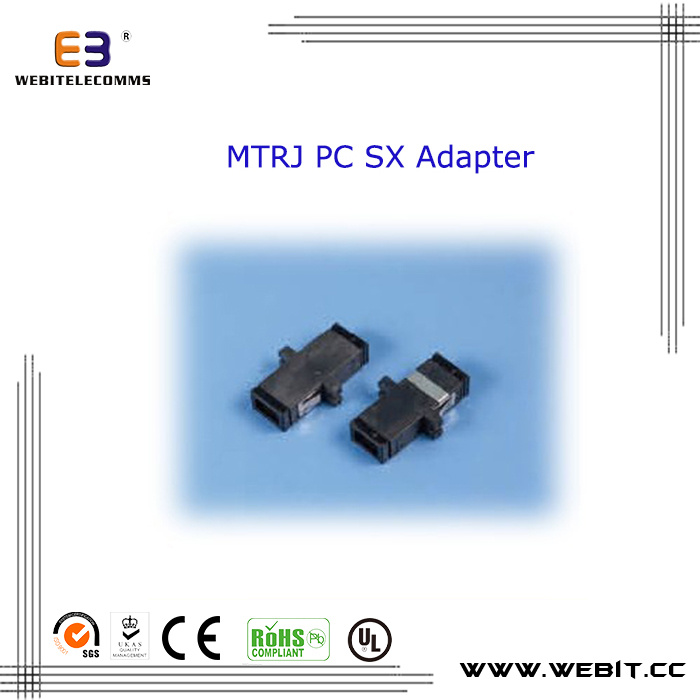

MTRJ Fiber Optic Adapter, MTRJ Adapter

Name: MTRJ Fiber Optic Adapter, MTRJ Adapter
Brand: all-electronics-online.com
SKU: 692668752
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 0.01-0.02/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MTRJ adapter
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Diameter:	0.9/2.0/3.0mm
Insertion Loss:	0.2db
Return Loss:	65 Db
Operating Temperature:	-40~80°c
Housing:	Plastic/Metal
Sleeve:	Ceramic / Metal
Structure:	MT-RJ
Brand:	ODM or OEM
Application:	to Connect Fiber Cable
Connector Type:	MTRJ Adapter
Transmission Medium:	Sm & Mm
Ferrule Endface:	PC
Number Of Cores:	Dx/Sx

Product Description

Packaging & Delivery
Packaging Detail:
Blister packing: 25pcs in 1 plastic box, 50 boxes in 1 carton.
PE Bag packing: 1pc/pe bag
Delivery Detail: 1-7 working days

Specifications

Insertion Loss
Single Mode PC≤ 0.3dB, UPC≤ 0.2dB, APC≤ 0.2dB
Multi-mode PC≤ 0.3dB
Hybrid Adapter ≤ 0.3dB
Female & Male Adapter ≤ 0.4dB(Both Ends)
Stability ≤ 0.2dB
Repeatability ≤ 0.2dB
Frequency of Usage ≥ 1000 Times
Operating Temperature Range -40° C ~ +80°

MTRJ fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment

Applications

Telecommunication Network
Testing Equipment
Local Area Network(LAN)
CATV
Engineering Recovery
FTTH
Connect Different Types of Ceramic Ferrule Bores

Other related products:
LC/SC/FC/ST adapter;
Singal mode/ Multi-mode: SM/MM
Simplex/ Duplex/Quad;
Blue(SM) /grey(MM) /green(APC) /water green(OM3)/ purple (OM4);
Ceramic sleeve / Metal sleeve;
Pastic / Metal housing;
With flange / without flange;
With plastic clip / with metal clip clip/ without clip

Insertion loss	SM	≤0.20 dB
Insertion loss	MM	≤0.20dB
Return loss	P C	≥50 dB
	UPC	≥55 dB
	APC	≥65 dB
Durability	<0.20 dB typical change, 1000 mating
Ferrule hole sizes	SM: 125.0+1/-0um	concentricity:≤1.0um
	125.5+1/-0um	≤1.0um
	126.0+1/-0um	≤1.0um
	MM:125 um	concentricity:1≤3 um
	127 um	≤3 um
	128 um	≤3 um
Operating temperature	-40~80°C
