| Prod Model: |
MTRJ Fiber Optic Adapter |
| Name: |
MTRJ Adapter |
| Fiber Mode: |
Single Mode or Moultimode |
| Operation Time: |
About 60s(No Fiber Cut) |
| Insert Loss: |
<=0.2dB(1310nm-1625nm) |
| Return Loss: |
>= 45dB |
| Using Temperature: |
-40~+75 |
| Figure: |
Customized Designs |
| Storage Temperature: |
-45--+85 |
| Transmission Medium: |
Single-Mode |
| Structure: |
MT-RJ |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

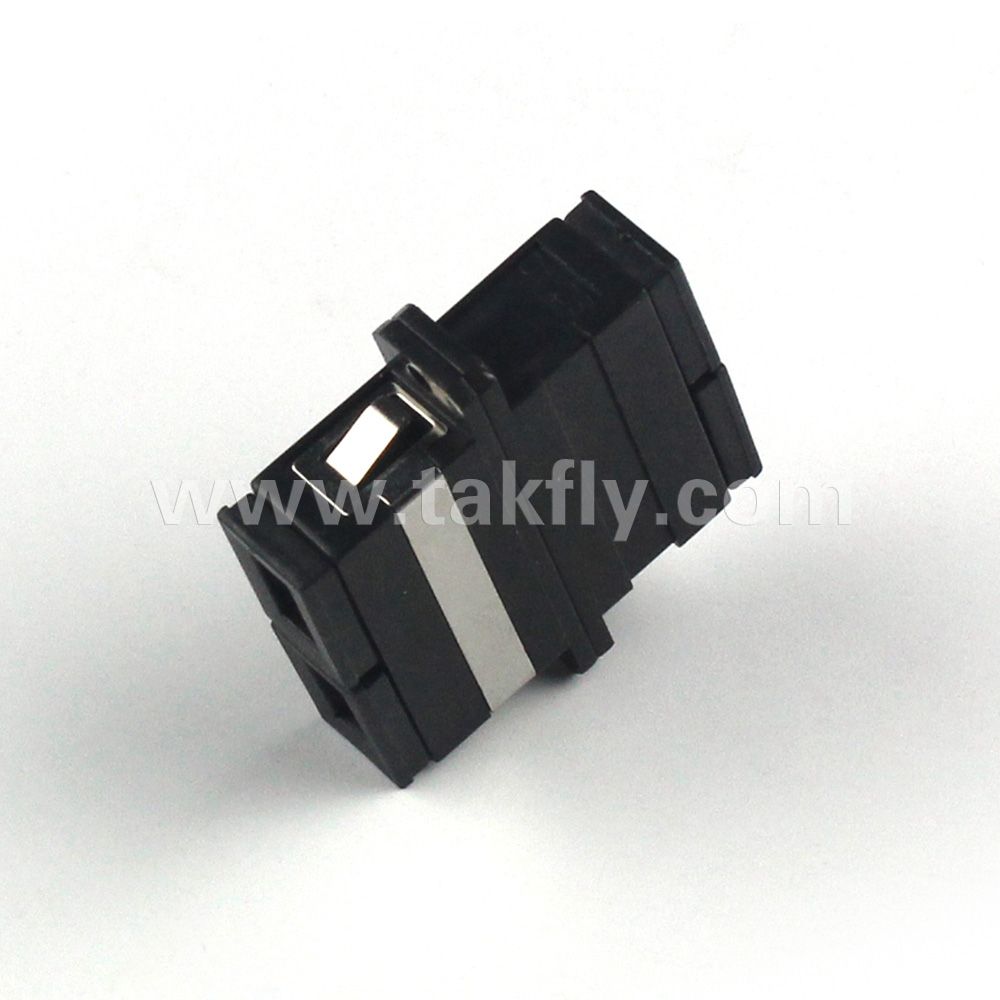

MTRJ fiber adapter
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
MT-RJ Adapter with SC style housing is available for applications where SC footprint is required. It comes standard in black, with additional colors available upon request.
Features:
Single mode and MultimodeNTT standard compatibleAvailable without flanges or with flange for duplex, saving panel spaceMeet JIS5974 and bellcore GR-326 standardCompliant with IEC874-14 & IEC874-19All parts compliant with ROHS
Application:
TelecommunicationCATVLAN & WANNetworkBroadbandFTTH
Appearance & Dimension:
Figure1: MTRJ RJ-45 Adapter Figurel: MTRJ SC Footprint
Parameter:
| Product | SC Adapter |
| Mode | S.M | M.M |
| Insertion Loss | Type 0.4 dB, Max 1dB | Type 0.2 dB, Max 0.5dB |
| Return Loss | 50dB, Min 40dB | 30dB , Min 20dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
Order Information:
| CODE | SLEEVE | TYPE | HOUSING | FIGURE |
| H24 | 1. No
| 1.Duplex
| 1. SM Black
2.MM Beige | 1. RJ-45
2. SC Footprint
|
Specification:
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
| SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Durability | Time | >1000 | >1000 | >1000 |
| Operating Temperature | ºC | -40~75 | -40~75 | -40~75 |
| Storage Temperature | ºC | -45~85 | -45~85 | -45~85 |
