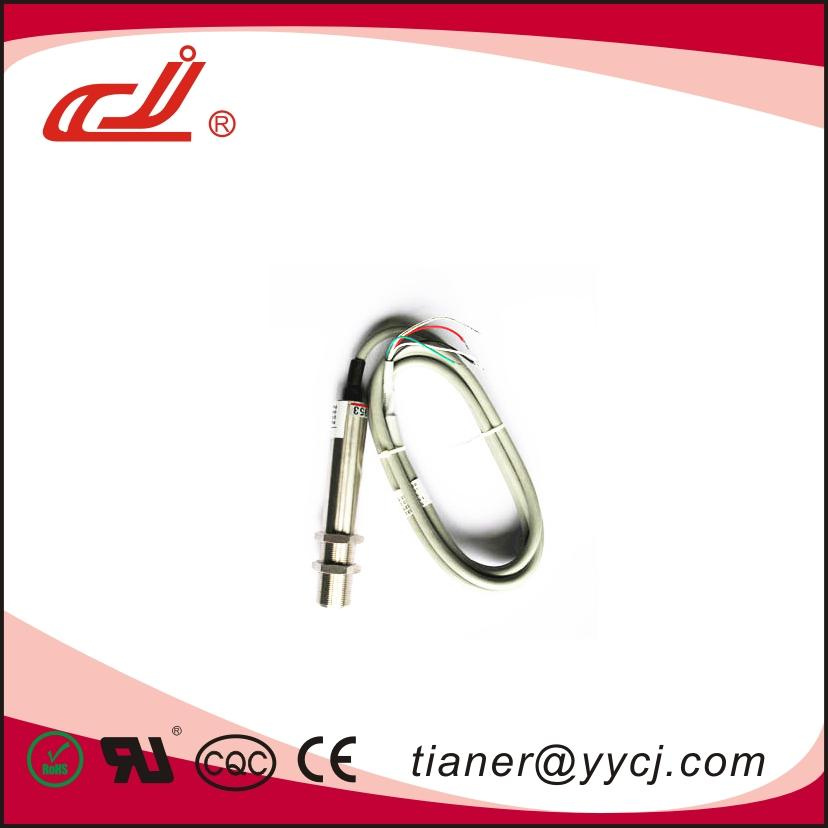

Mtx50b Infrared Temperature Sensor Mtx50b Measuring Infrared Intensity Emitted

Prod Model:	Mtx50b
Measuring Range:	0-500c
Output:	Analog Sensor, 0-5V
Theory:	Infrared Temperature Sensor
Operational Power Supply:	24VDC
D:S:	15:1
Materia:	Stainless Steel
Output Signal Type:	0-5V Linear,10mv/1c

Product Description

Infrared temperature sensor Introduction
The infrared thermomet can figure out surface temperature of an object through measuring infrared intensity emitted from the measured object without contacting the object. Main advantage of non-contact infrared thermometer is that it can make users conveniently and rapidly measure the inaccessible or moving object.
MTX50B infrared thermometer is the integrated infrared thermometer with the sensor,optical system and electronic circuit integrated in a metallic shell; MTX50B is easy in installation. The standard thread on the metal shell can be rapidly connected with the installation region; MTX50B also has various options (such as protective sleeve for
blowing, 90° adjustable mount support,
three-dimensional adjustable mount support, digital display meter and more) to satisfy requirement in various working condition.

Physical description

Basic performance

Protection     IP65 (NEMA-4)

Ambient temperature: 0 ~ 60°C

Storage temperature: -20~80°C

Relative humidity 10 ~ 95% (without moisture condensation)

Material: stainless steel


Electric parameter

Operational Power Supply 24VDC

Maximum current 20mA

Linear output signal 0~ 5V, 10mV/°C


Measure parameter

Spectral range: 8 ~ 14um

Temperature range: 0~500°C

Optical resolution: 15:1

Response time 300ms (95%)



Emission rate: fixed at 0.95

Temperature measurement accuracy:

±1% or± 1.5°C of the measured value; taking the maximal value (ambient temperature: 23°C±5°C)

Repeatable accuracy: ±0.5% or ±1°C of the measured value; taking the maximal value (ambient temperature: 23°C±5°C)


Dimension: 106mm*20mm (length*diameter)
Cable length: 1.8m (standard), 3m, 15m and special specification (made-to-order)


Model	MTX50B
Measuring range	0-500C
Distance Coefficient	15:1
Emissivity	0.95
