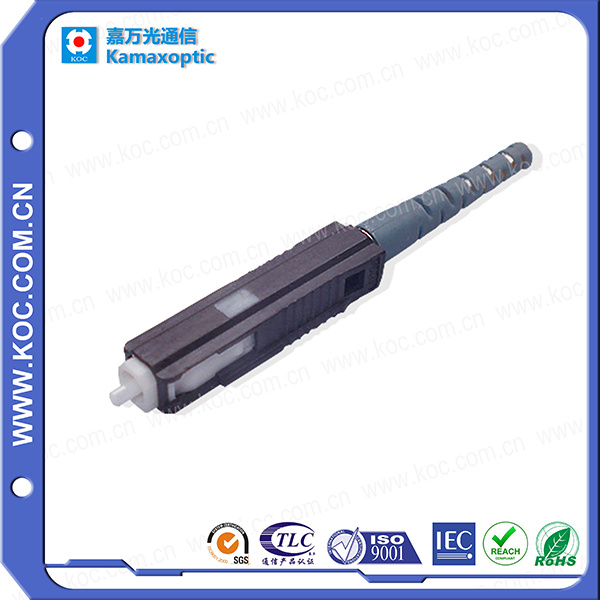

Mu Fiber Optic Connector with Low Loss

Name: Mu Fiber Optic Connector with Low Loss
Brand: all-electronics-online.com
SKU: 710854085
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 0.46-0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MU SM/MM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mu Fiber Optic Connector:	Low Loss, High Quality
Cable Diameter Szie:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Color:	Blue,Brown
Material:	Plastic
Transmission Medium:	Single-Mode
Structure:	MU
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	Mu
Brand:	Koc

Product Description

APPLICATIONS

CATV
Video
Telecommunication networks
Data processing networks
Industrial and medical
Premise installations
Wide Area Networks (WANs)
Active device termination
Local Area Networks (LANs)

FEATURES

NTT-MU hardware compatibility
NTT & JIS compliance
UL-rated plastic housing and boot
High precision alignment
Tunable zirconia connector ferrule
Compact, pull-proof design
Behind-the-Wall style short connector
Low insertion loss and back reflection loss

AVAILABILITY

The connector can be supplied as a pre-assembled one-piece connector or as connectorkits.
Clips are available for duplex connectors
Housing kits without ferrule are available.
MU/PC and MU/APC are available.

SPECIFICATIONS

	Single mode	Multimode
Insertion Loss	<0.30dB	<0.3dB
Return Loss	≥50 dB (PC) ≥60 dB (APC)	≥30 dB
Durability	<0.2dB typical change, 1000 matings
Operating Temperature	-20 to + 70°C	-20 to + 70°C
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: ≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm
	126.0+1/-0μm, Concentricity: ≤1.0μm

ORDERING OPTIONS

Housing Color	Ferrule I.D.	Boot Size	Boot Type	Boot Color	Dust Cap Type
Beige	125.0μm	0.9mm	slotted	Beige	Ferrule cap
Blue	125.5μm	2.0mm	smooth	Black
Brown	126.0μm			Blue
Red	127.0μm			Green
Yellow				Yellow

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
