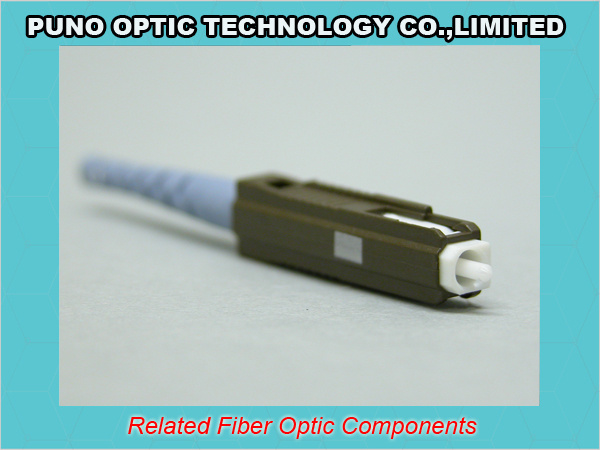

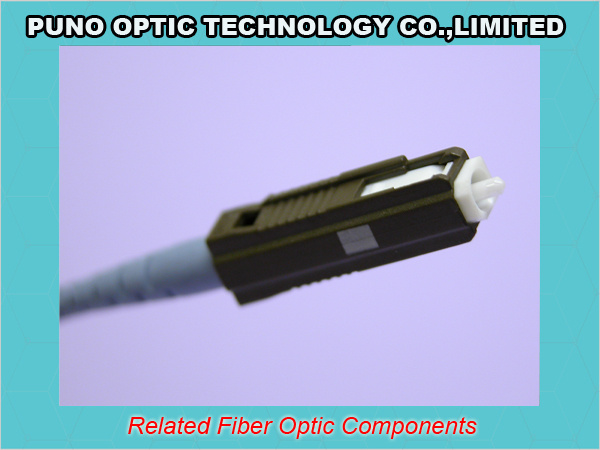

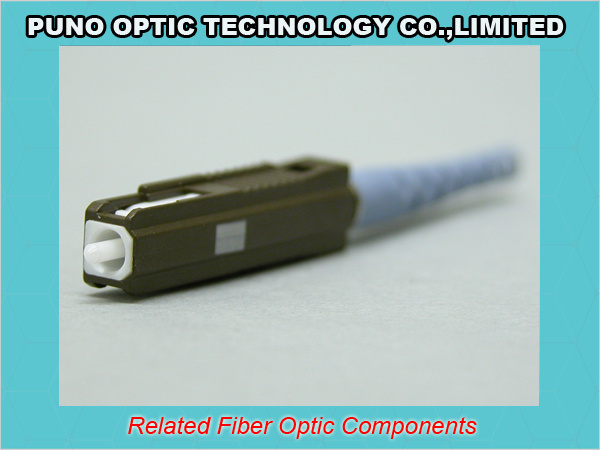

MU PC SM Low Reflection Fiber Optic Terminator Connector
| Price: |
US $ 1-1.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
01982 |
| Color: |
Green |
| Material: |
Plastic |
| Fiber Type: |
Singlemode |
| Fiber Polishing: |
APC |
| Cable: |
2.0mm |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
1000N |
| Core: |
Single Core |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
E2000 UPC |
| Light Source TYPE: |
Fiber |
| Connector Type: |
E2000 |
Product Description
MU PC SM Low Reflection Fiber Optic Terminator Connector
Optical Terminators are functional devices using Metal-lon Doped fibers. These products prevent the reflection of light that are present at open end systems. Fiber optic terminator can terminate unused fiber connector ports in fiber optic systems . Fiber opticterminators are passive components that absorb light coming from unterminated connector plugs. By minimizing the reflected power, the terminator can reduce signal degradation in digital and analog systems.
Features / Benefits
Latched push-pull operation;
Automatic metal shutter on connector and adapter for dust and laser protection;
Safe for use in high power laser applications;
One-piece design for easy termination;
Color coding of connector and adapter;
Mechanical coding of connector and adapter.
Specifications | Compliance | IEC 61754-15, TIA 604-16 |
| Technology | Full ceramic ferrule and sleeve |
| Tuning | in 60° steps |
| Mechanical resistance | 100N tensile load |
| Thermal resistance | -40ºC to +85ºC, stock temperature range |
| Flammability | UL 94-V0 |
| Durability | Min. 1000 mating cycles |
Color of housing | Single-mode, blue |
| SM (APC 8°), green |
| Multimode, beige |
Color KeyingThe E-2000TM system permits the user to specify the color of the thumb-latch and the mating adapter frame so that different line types, uses, destinations and points of origin, etc. can be readily identified. The thumb-latch and frame are available in eight distinct colors:
1. Blue (RAL 5015) 5. Orange (RAL 2003);
2. Beige (White) (RAL 1013) 6. Yellow (RAL 1016);
3. Black (RAL 9005) 7. Green (RAL 6018);
4. Red (RAL 3020) 8. Violet (RAL 4008).Technical Information | Standards requirements | TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements |
| Fiber compatibility | 62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser
optimized OM3/OM4 and 9/125μm OS1 |
| Fiber cable type | 900μm tight-buffered fiber recommended
250μm coated fiber, by using F250BT-C 250 micron
fiber build-up tube kit or FO6CB or FO12CB fan-out kit |
| Insertion loss | 0.1dB average (Multimode and Single-mode) |
| Return loss | >20dB (Multimode), >40dB (Single-mode) |
Payment & Shipping Term | Minimum Order Quantity | 1 Piece MOQ On Request |
| Packaging Details | 10 or 20 PCS / Plastic Tray, 1 PC / Gift Box |
| Delivery Time | Delivery In 7 - 15 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces Per Monthly |
Ordering Information - Fiber Optical Connector | Fiber Type | 5-50/125; 6-62.5/125; 9-9/125; O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU E-E2000 |
| Polish Type | P-PC U-UPC A-APC |
| Operating Wavelength | 1-850nm;
2-1310nm;
3-1550nm;
4-1310/1550nm;
5- 1310/1490nm |
Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.
Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.
MISSION
We work with passion to create faster connections between people, places, ideas and values.
VISION
Representing the excellence and values of Made In China worldwide.
VALUES
Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.
MARKET
Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation
EXPERTISE
More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.
PARTNERSHIP
China Mobile, China Union, China Telecom, Huawei, Foxconn.
