Mulitlayer PCB 4 Layer Copper-Clad Laminate Fr4
| Price: |
US $ 0.58-0.69/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
FL201315 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Aluminum |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Surface Treatment: |
HASL Lead Free |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
CEM-1 |
| Material: |
Paper Phenolic Copper Foil Substrate |

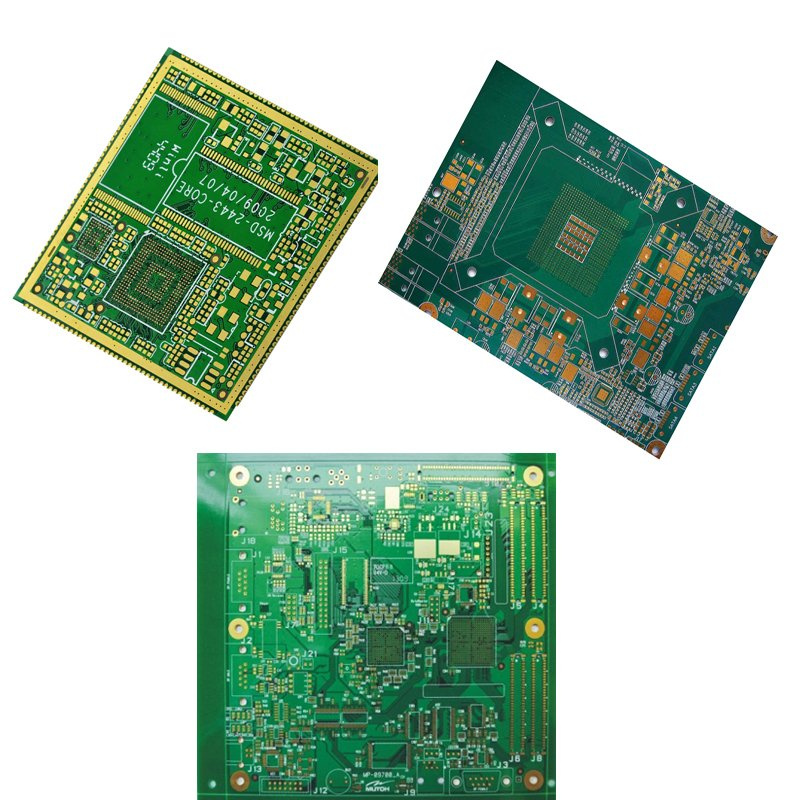

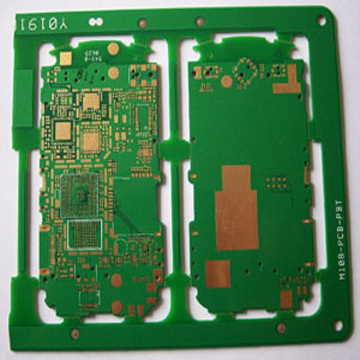

Product Description
Products IntroductionParameters & Data Sheet | PCB SIZE | 32 x 45mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.5 um(0.5 oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 17.5 um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.4 mil/5.4 mil |
| Minimum / Maximum Holes: | 2.1mm /3.2mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 846 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL), Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Modem GPRS
Power Supply AC
3G Router WIFI
Variable AC Power Supply
Router Wifi USB
Cellular Router |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Commodity IntroductionThis is a type of FR-4 PCB for the application of Modem GPRS
. It's a 4 Layer board at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using sup
-plied Gerber data. Each 10 boards or panels are packed separately.
Features-Our Products Advantage
1. Over 10 years experience manufacturer in led aluminum pcb and pcb field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all customized pcb products
Packaging & Shipping
Inner packing : Vacuum packing,Plastic bag
Outer packing : Standard carton packing
Shipping type : UPS , DHL ,FedEx , EMS, China Post Air Mail etc. You can choose the shipping cost as you want .

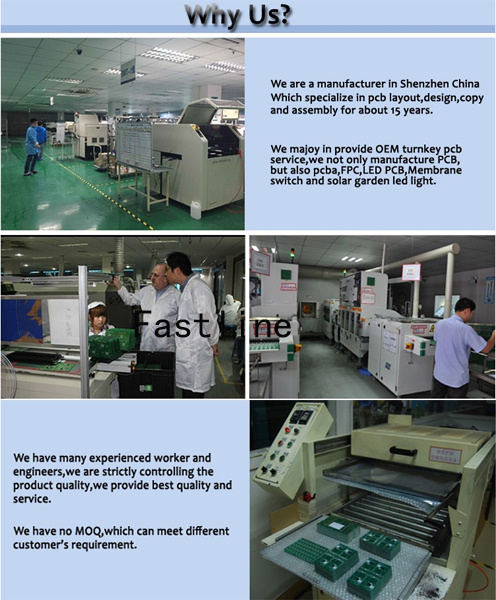

Can You Show Me some Picture of the factory?
Why Choose you ?
FAQ
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What payment terms do you have?
A4: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Q5: How about the shipping method?
A5:We have stable cooperationship with DHL, Fedex, EMS, UPS, TNT and
other air flight way or sea freight company.Usually we will quote you the most
reasonable shipping method according to your country, good types, weight and
requested delivery time.
How to Contact Us?
Would like to know more about the product? Send us inquiry, click "Send" now!
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
