Multi-Channels Load Cell Weighing System

Prod Model:	BWS-101
Measurement Force:	Compression Force Measurement
Size:	20mm*11mm(Diameter*Height)
Product Type:	Micro Force Sensor
Channels:	12 or Customized
Pattern:	Load Button
Feature:	High Accuracy
Production Process:	Put on Strain Gauge

Product Description

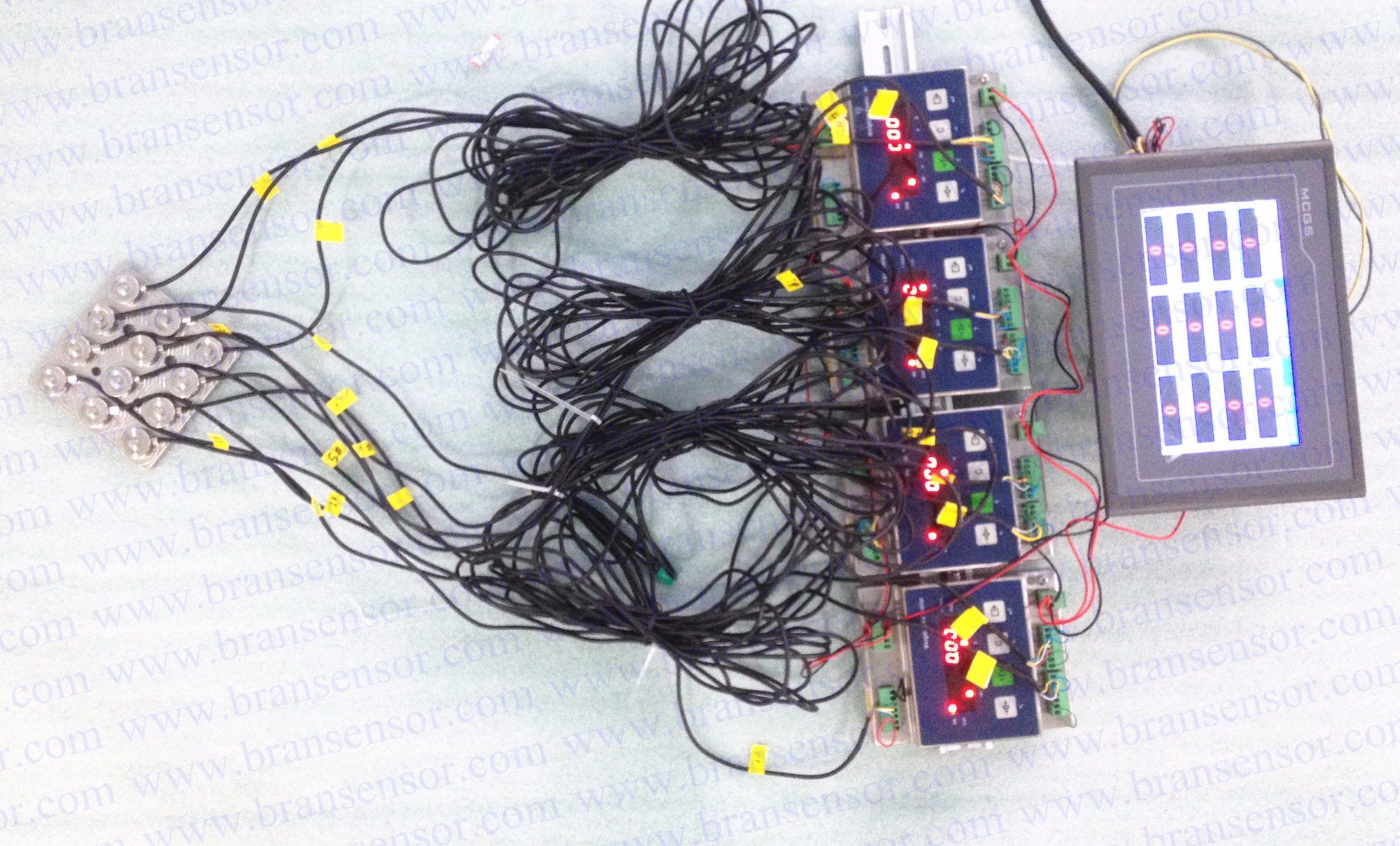

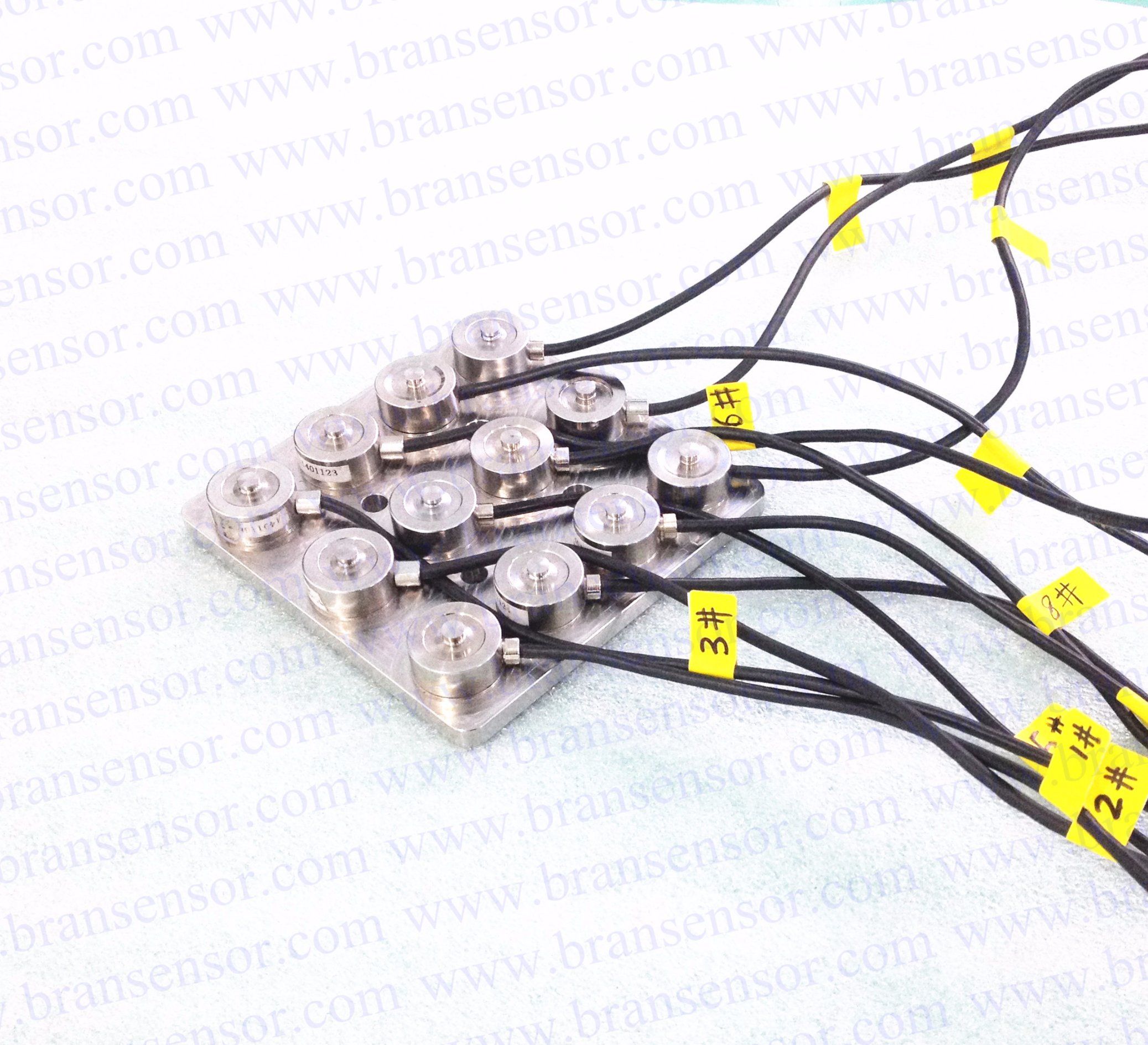

BWS101 is a miniature Load Button Load Cells for multi-channels weighing system with compression applications. We also could called this as force transducer or force sensors. This Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with 20mm sub-miniature outside diameter. You will also find options for external matched output readily available.



The compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installed in existing systems. Its extremely compact design(outside diameter: 20mm with height as 11 mm) further facilitates the integration.


Providing 0.2 accuracy, this offers higher precision than its predecessor. The force sensor is based on high strain gauge technology. Force is applied via a special load application point.
Brans force transducer offers IP67 protection. Precise measurement results are guaranteed even in adverse environments thanks to the hermetically sealed housing from stainless steel and rugged cable.Compact, precise, rugged - these characteristics make our load button highly versatile. Possible fields of application include:
       Cost-effective test benches for a wide range of applications
       Control and monitoring of production processes

Key Features
Compact design
Low Deflection profile as 6mm
17-4 Stainless Steel Construction
Direction of force: Compression
Accuracy class 0.2
Nominal rated forces: 20N to 500N/4lbs to 220lbs
Configurable with different cable lengths, plug assembly


1	Specifications	Technique
2	Capacity	20,50,100,200, 500, 1000N
3	Rated output	1.0±10%mV/V
4	Zero balance	±0.03 mV/V
5	Non-linearity	0.5%F.S.
6	Hysteresis	0.5%F.S.
7	Repeatability	0.5%F.S.
8	Creep(30min)	0.2%F.S.
9	Temp.effect on output	0.05%F.S./10ºC
10	Temp.effect on zero	0.05%F.S./10ºC
11	Input impedance	600~800Ω
12	Output impedance	600~800Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5V
15	Maximum excitation	10V
16	Compensated temp range	-10~60ºC
17	Operation temp range	-20~80ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	φ2×4000mm
21	Weight approx.	0.1kg
22	Material	Stainless Steel
23	IP Class	IP66

Although load button load cells are traditionally not known for their high accuracy, BRANS engineers have dispelled this concept by continuously improving the accuracy of this product.
