Multi Core Control Wire Cable for Industry Control System

Name: Multi Core Control Wire Cable for Industry Control System
Brand: all-electronics-online.com
SKU: 791172625
Availability: InStock
Rating: 5 (144 reviews)

Price:	US $ 0.15-1.8/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KVVP
Experience:	15 Years Produceing Experience
Size:	2.5,4,6,10,16,25,..120mm2..
Customized:	Yes
Export Experience:	Southeast Asia,Middle East,South Africa,Russia
Type:	Insulated
Conductor Type:	Stranded
Application:	Electric Power Control System
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS

Product Description

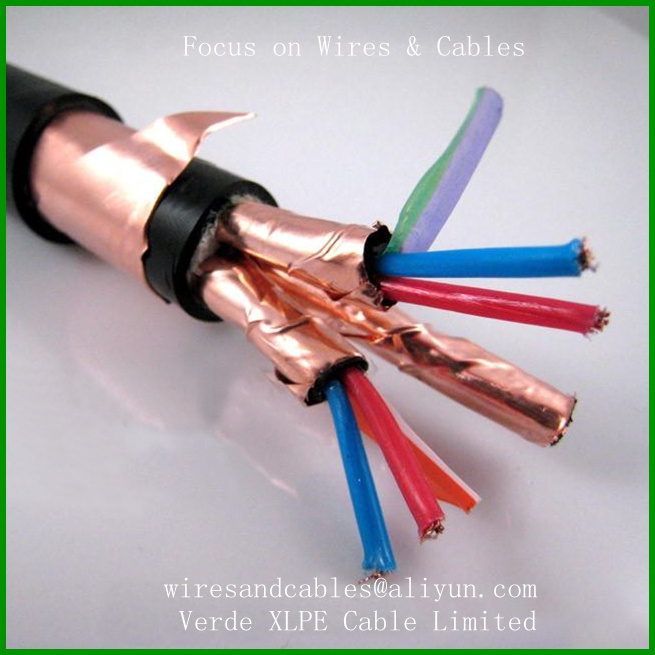

Multicore ( 3,4,5,6, 7, 8, 9.....37 Insulation Core) Wire Cable
Stranded Copper Conductor / PVC Insulated / Copper Tape Braided Shield / Control Cable

Conductor: Annealed copper or Tinned copper
Conductor Type: Solid, Stranded, or Flexible
Insulation:PVC
Sheathing:PVC
Core Number:3, 4, 5, 6, 7, 8, 9, 10, 12,......37...61core

Standard:
GB/T 9330 IEC60228
More Standard and specification as per your customized

Core Identification:
different colored and Number Indentification

Control cable Description and Technical Type

Type	Description	Section Area (mm2)	No. of Core
Cu/PVC/PVC (KVV)	Copper Conductor, PVC Insulated and PVC Sheathed Control Cable	0.75, 1.0 1.5 2.5	2-61
		4 6	2-14
		10	2-10
Cu/PVCTCWB/PVC (KVVP)	Copper Conductor, PVC Insulated ,TCWB Screened, PVC Sheathed, Braided Shielded Control Cable	0.75 1.0 1.5 2.5	2-61
		4 6	2-14
		10	2-10
Cu/PVC/CT/PVC (KVVP2)	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10
		4 6	7-61
		10	4-10
Cu/PVC/STA/PVC (KVV22)	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61
		4 6	4-14
		10	4-14
Flexible Cu/PVC/PVC (KVVR)	Copper Conductor,PVC Insulated, PVC Sheathed,Flexible Control Cable	0.5 ~ 2.5	4-61
Flexible Cu/PVCTCWB/PVC (KVVRP)	Copper Conductor,PVC Insulated PVC Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61
		1.5 , 2.5	4-48

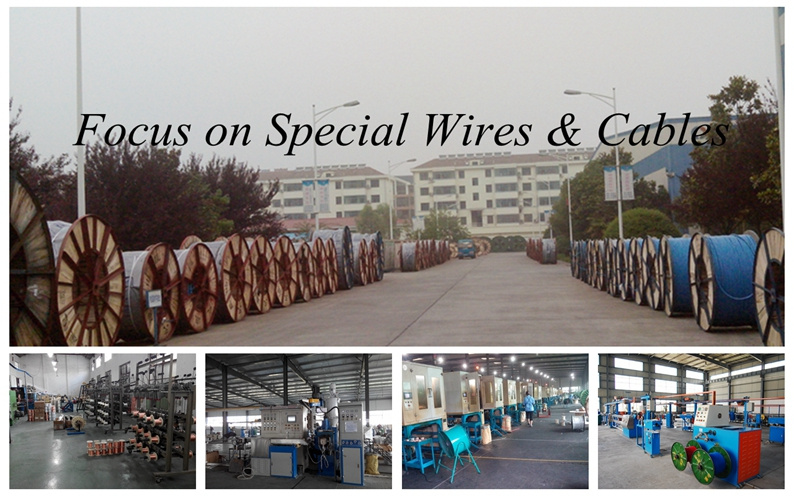

Our workshop:

If you want to know more about us and our products,pls contact us.
sending email or telephon us:

Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Wires and Cables
Be Your Most Reliable Supplier

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
