Multi-Core Electric Wire Cable
| Price: |
US $ 0.22-0.29/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
control cable |
| Number Of Cores: |
Multicore |
| Product Name: |
Multi-Core Electric Wire Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description

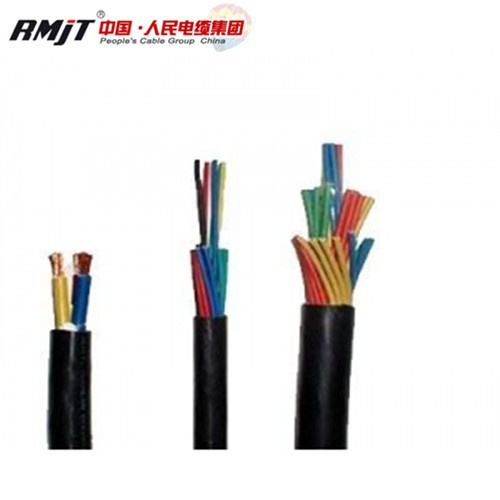

Multi-core electric wire cable
Application of control cable
Low voltage control cable of rated voltage 450/750 and below is used as an interconnecting cable in signal and control equipment - for measuring, control or regulation, also are commonly used in the building and construction industry and rail and transport networks as well as automation and process control cable.
Product Description of control cable
1) Working temperature: 70°c (PVC insulation), 90°c (XLPE insulation)
2) Min. ambient temperature: 0 °c
3) Min. bending radius: 8 times cable radius (unarmored), 12 times (armored or copper tape screened)
4) Conductor: class 1, 2, 5 tinned or un-tinned copper
5) Sectional area: 0.75~10mm2
6) Insulation: PVC / XLPE
7) No. of cores: 2~61
8) Screen: copper tape, aluminum-plastic composite tape or braided copper wire
9) Inner covering: extruded PVC or lapped non-woven cloth
10) Armor: steel tape and steel wire available
11) Oversheath: PVC
12) Max. conductor DC resistance at 20°c| Sectional Area (mm2) | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 |
| Tinned Copper (Ω/km) | 24.8 | 18.2 | 12.2 | 7.56 | 4.70 | 3.11 | 1.84 |
| Plain Copper (Ω/km) | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 |
Model and Name of control cable | Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 |
| 10 | 4-10 |
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 |
| 10 | 4-14 |
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.

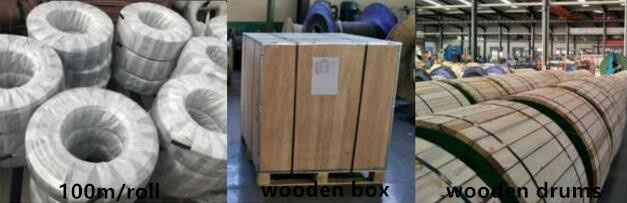

Packing and Delivery:
Packing:
Material: Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size: As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Delivery:
Port: Tianjin, or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

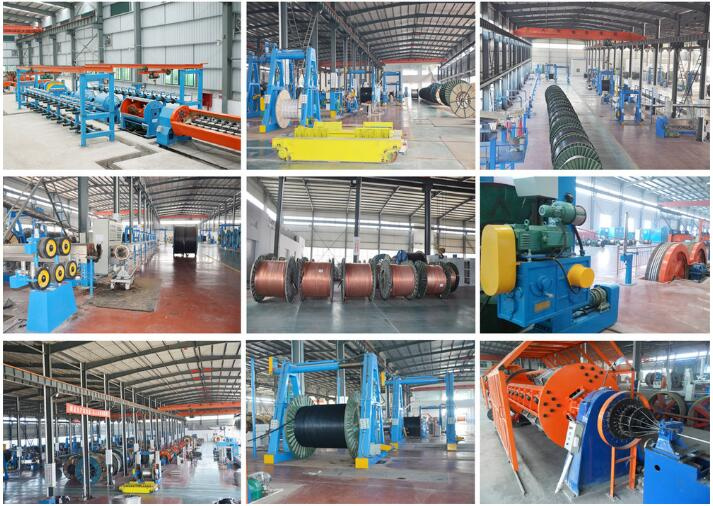

Production Line:

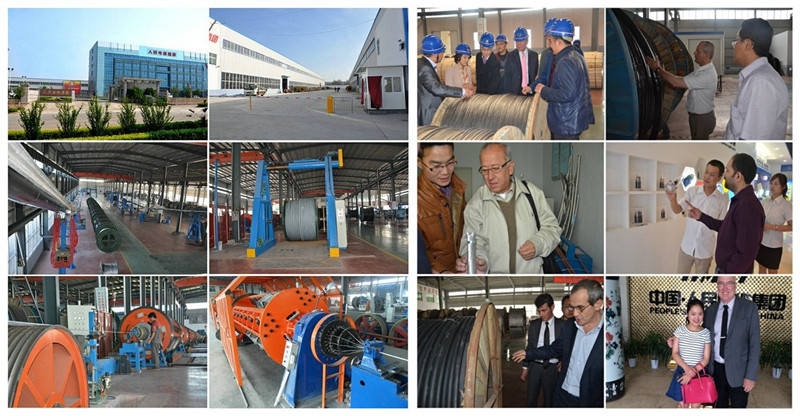

Our Company:People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Our Advantages:
1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.
8. Free sample is available with economic express fee.
9. 12 months quality guarantee after delivery.
FAQ and Contect information:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjt.com
For more information, please kindly contact us freely!
Welcome your inquiry of control cables, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
