| Prod Model: |
Asian Sun Da Yuan |
| Rated Voltage: |
LV, Mv, Hv |
| Conductor: |
Copper/Aluminium Wire |
| Insulation/Sheath: |
XLPE/PVC/PE |
| Specifications: |
1.5-630mm2 |
| Color: |
as Customer's Request |
| Ambient Temperature: |
20 Centigrade Below Zero - 90 Centigrade |
| Certificate: |
ISO9001, ISO14001, CCC |
| Sample: |
Free Sample Available |
| Competitive Price: |
Factory Direct Sale |
| Note: |
OEM, ODM Are Acceptable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Wire Core Material: |
Copper/Aluminium |
| Model: |
Yjlv Yjv |
| Brand: |
Dayuan |
Product Description
1. Application:
Perferably for installation indoors in cable ducts and in industrial plants or switching stations, underground installation with additional protection where mechanical damage is unexpected.

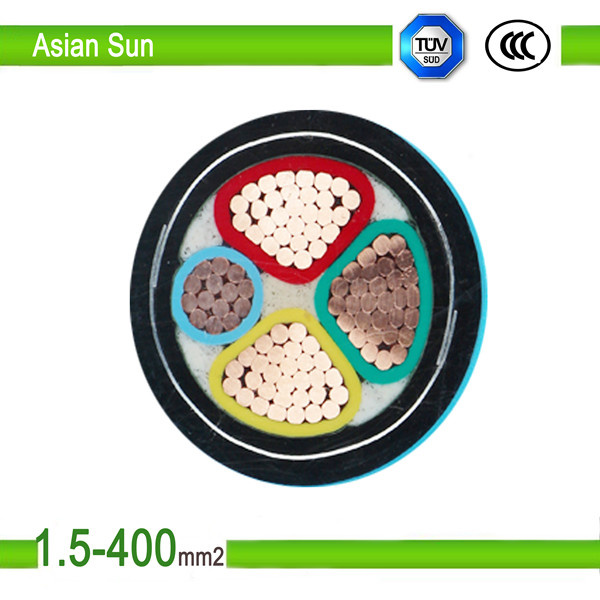

2. Brief Description:
Conductor: solid or stranded copper or aluminium wires
Insulation: XLPE/PVC/PE
Filler: PP filling
Inner Sheath: PVC(or PE)
Screen: copper tape/copper wire/unscreened
Armor: (galvanized)steel wire/steel tape/aluminium wire/unarmoured
Core-covering: binding tape
Outer Sheath: PVC (Black)(or PE)
Voltage: 0.6/1KV~26/35KV
3. General Specifications:
| Cable Structure(Cores No. * Nominal Cross-section Area/mm2) |
| 1-Core | 2-Core | 3-Core | 3+1-Core | 4-Core | 3+2-Core | 4+1-Core | 5-Core |
| 1*4 | 2*4 | 3*4 | 3*4+1*2.5 | 4*4 | 3*4+2*1.5 | 4*4+1*2.5 | 5*2.5 |
| 1*6 | 2*6 | 3*6 | 3*6+1*4 | 4*6 | 3*6+2*4 | 4*6+1*4 | 5*4 |
| 1*10 | 2*10 | 3*10 | 3*10+1*6 | 4*10 | 3*10+2*6 | 4*10+1*6 | 5*6 |
| 1*16 | 2*16 | 3*16 | 3*16+1*10 | 4*16 | 3*16+2*10 | 4*16+1*10 | 5*10 |
| 1*25 | 2*25 | 3*25 | 3*25+1*16 | 4*25 | 3*25+2*16 | 4*25+1*16 | 5*16 |
| 1*35 | 2*35 | 3*35 | 3*35+1*16 | 4*35 | 3*35+2*16 | 4*35+1*16 | 5*25 |
| 1*50 | 2*50 | 3*50 | 3*50+1*25 | 4*50 | 3*50+2*25 | 4*50+1*25 | 5*35 |
| 1*70 | 2*70 | 3*70 | 3*70+1*35 | 4*70 | 3*70+2*35 | 4*70+1*35 | 5*50 |
| 1*95 | 2*95 | 3*95 | 3*95+1*50 | 4*95 | 3*95+2*50 | 4*95+1*50 | 5*70 |
| 1*120 | 2*120 | 3*120 | 3*120+1*70 | 4*120 | 3*120+2*70 | 4*120+1*70 | 5*95 |
| 1*150 | 2*150 | 3*150 | 3*150+1*70 | 4*150 | 3*150+2*70 | 4*150+1*70 | |
| 1*185 | 2*185 | 3*185 | 3*185+1*95 | 4*185 | 3*185+2*95 | 4*185+1*95 | |
| 1*240 | 2*240 | 3*240 | 3*240+1*120 | 4*240 | 3*240+2*120 | 4*240+1*120 | |
| 1*300 | | 3*300 | 3*300+1*150 | 4*300 | 3*300+2*150 | 4*300+1*150 | |
| 1*400 | | | | | | | |
| 1*500 | | | | | | | |
| 1*630 | | | | | | | |
Standard:
We can manufacture the cable according to TS IEC 60502, IEC502, VDE0276-603, BS6346, SANS, and customer's requirement will also be satisfied.
4. Packing: Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
Port of shippment: Qingdao, Shanghai, Ningbo, or as request.
5. About Asian Sun Group:
1). Established in 2006 with registered capital 410 million RMB.
2). A group with seven subsidiary companies.
3). Factory about 200,081 square meters.
4). More than 800 employees including 120 technical and management staff.
5). Main products: Solar cable
Electric wire
AAC(all aluminum conductor)
ACSR(aluminum conductor steel reinforced)
ABC(aerial bundle cable)
Power cable
6). OEM&ODM are acceptable.
6. After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
7. FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get
the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is
free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready
for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account orprepay us if you do not have an account.
(4).What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most
convenient or cost effective for you.
