Multi-Cores 12 Cores Distribution Breakout Fiber Optic Patch Cord
| Price: |
US $ 1-6/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Multi-cores Breakout Fiber Optic Patch Cord |
| Connectors: |
Sc/St/FC/LC/MTRJ/DIN/Mu/Lx.5/D4/SMA |
| Ferrule: |
Ceramic |
| Optical Fiber: |
Sm G652D, Sm G657A1, Sm G657A2 |
| Cable Jackets: |
PVC, Ofnr,Ofnp,LSZH |
| Applications: |
Data Center Cabling,FTTH |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
12 Cores Distribution Patch Cord |
| Sheath Material: |
LSZH |
Product Description

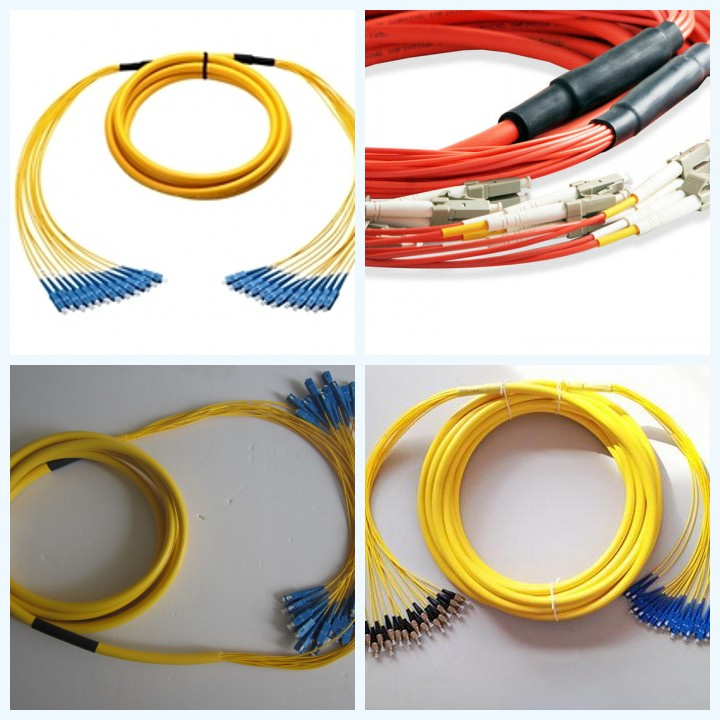

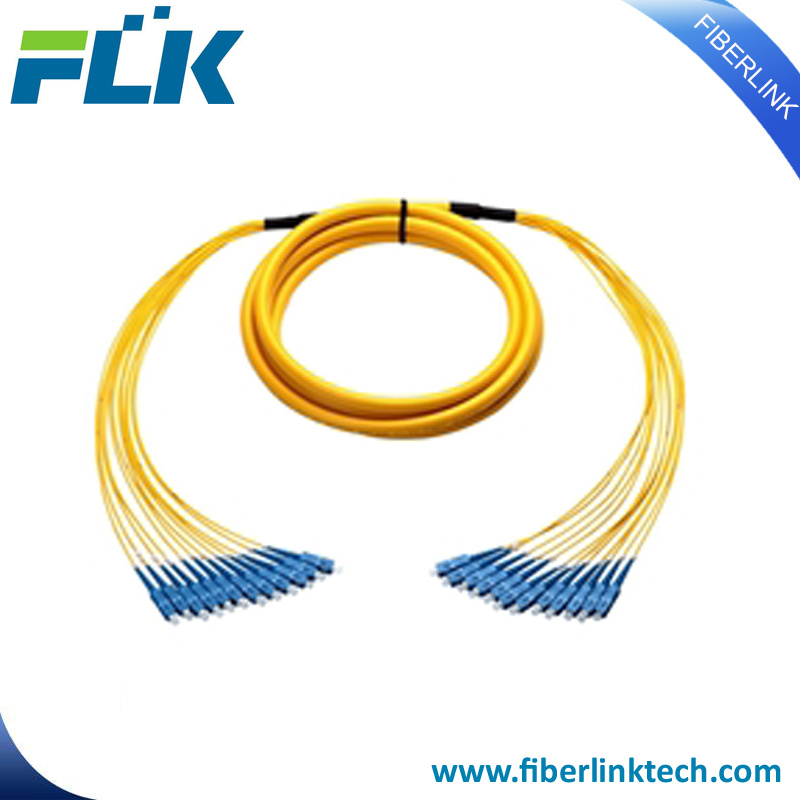

Multi-cores 12 Cores Distribution Breakout Fiber Optic Patch Cord
Description:
The Multi-cores Breakout Fiber Optic Patch Cord is a convenient and economical alternative to running multiple fiber optic jumpers or individual fiber optic cables. It can have from 4 to 144 fibers per trunk and distribute multiple Data channels. Fiberlink offers kinds of factory pre-terminated trunk fiber optic patch cables with custom connector configurations, breakouts, labels, and jacket material types.
Multi-cores Trunk patch cables are also important part of Plug & Play cabling system, features high-density, factory terminated, factory tested. This fiber connectivity solution allows connection from central patch locations to work areas quick, simple and cost effective, without need for unnecessary splicing or terminations in the field.
Applications:
Used as interconnection or cross-connection in
1. Data center cabling
2. Backbone cabling
2. Fiber To The Home(FTTH)
3. Various kinds of testing and self-control system
Features:
1. Factory pre-terminated, eliminates the need for field terminations or splices, save on-site labor cost
2. Multi-fiber solutions from 4 fiber up to 144 fibers regularly
3. Single-mode 9/125, Multimode 50/125 or 62.5/125, Multimode 10Gig fiber cable for option
4. Full Range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available
5. PC (Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact) connector end-face polish available
6. 100% factory tested with complete test results
7. Customized length, staggering, connector type, fan-out style, and labeling
8. Pulling eye available for connector protection, on-site easy and quick installation
Specifications:| Connectors | SC/ST/FC/LC/MTRJ/DIN/MU/LX.5/D4/SMA |
| Ferrule | Ceramic |
| Optical Fiber | SM G652D, SM G657A1, SM G657A2 | OM1 (50/125), OM2 (62.5/125),
OM3 (MM 10Gig), OM4 |
| Cable Jackets | PVC, OFNR(Riser), OFNP(Plenum), LSZH(Low Smoking Zero Halogen) |
| Cable Strand | 4, 6, 8, 12, 24, 48, 72, 96, 144 Fiber |
| Optical Spec | IL(Max.) | ≤0.3dB |
| RL | PC≥45dB, UPC≥50 dB, APC≥60dB | ≥30dB |
| Repeatability | ≤0.2dB 1,000 times mating cycles |
| Working Temperature | -25ºC - +75ºC |
| Storage Temperature | -45ºC - +85ºC |
Color Codes:| Cable Jackets Color |
| Single-mode | Yellow |
| Multimode (62.5/125μm or 50/125μm) | Orange |
| Laser optimized OM3/OM4(50/125μm) | Aqua |
| Connectors Housing Color |
| Single-mode | Blue |
| Single-mode, APC (angle polishing) | Green |
| Multimode (62.5/125μm or 50/125μm) | Beige |
| Laser optimized OM3/OM4 (50/125μm) | Beige |

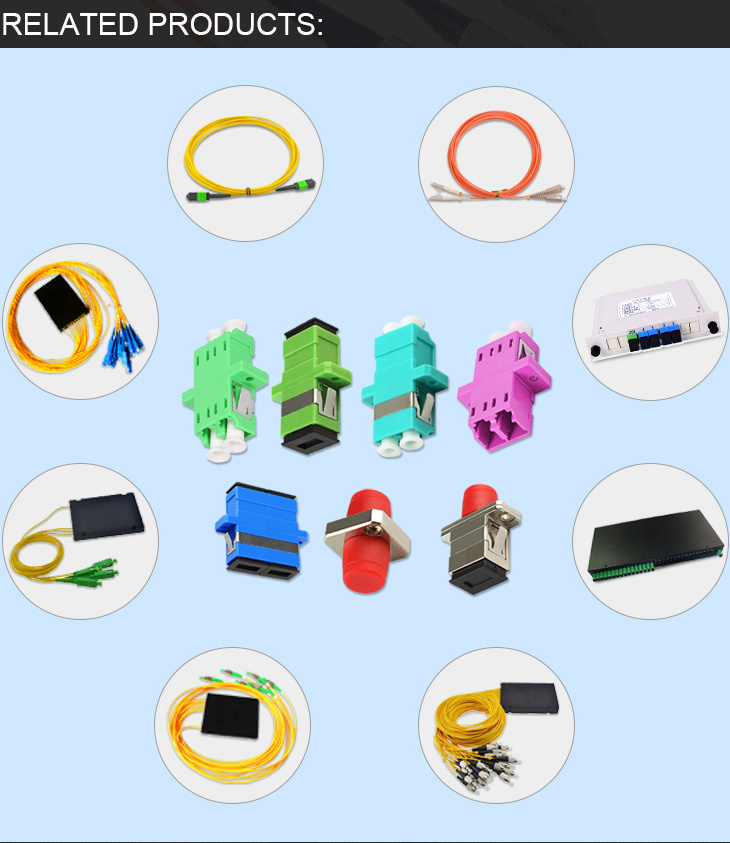

Related products
Our fiber patch cord production line:

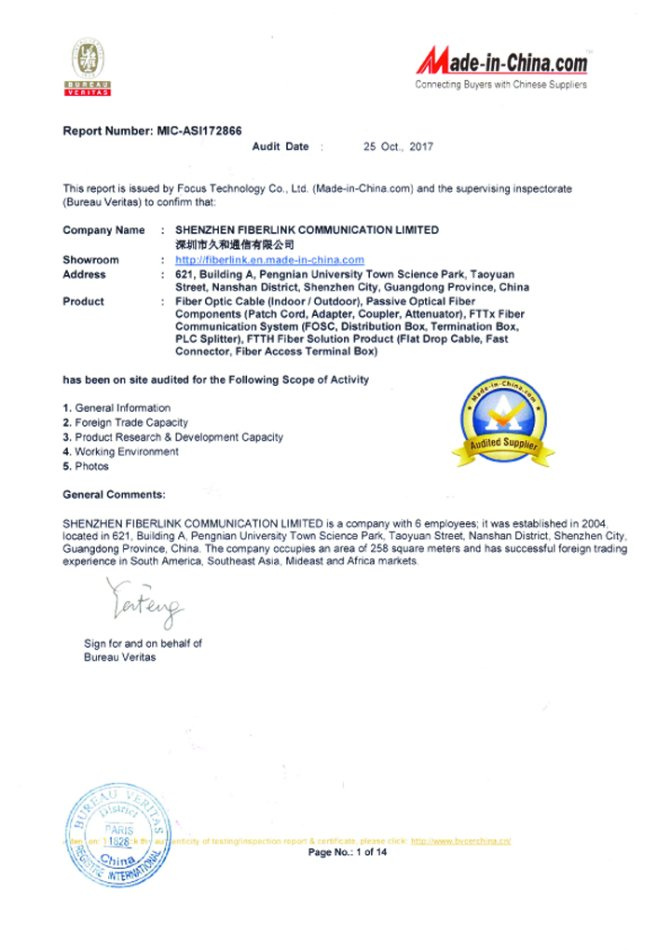

Certifications
