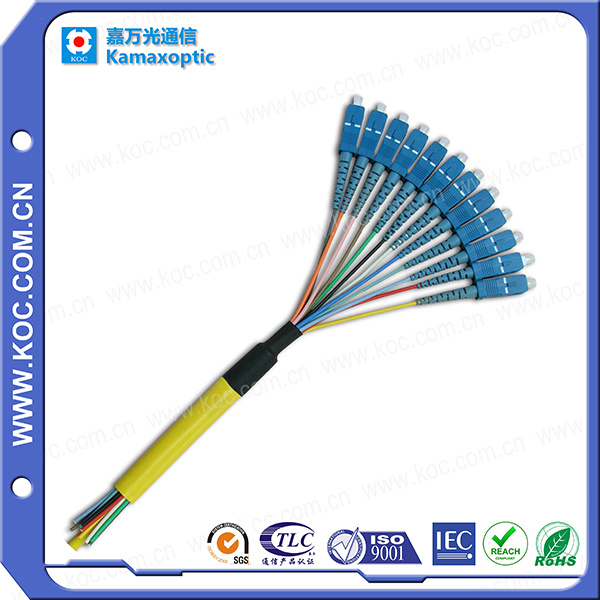

Multi-Fiber Optic Network Patch Cord and Pigtail

Name: Multi-Fiber Optic Network Patch Cord and Pigtail
Brand: all-electronics-online.com
SKU: 774034285
Availability: InStock
Rating: 4.4 (109 reviews)

Price:	US $ 10-12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	48 core
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Size:	0.9mm 2.0mm 3.0mm
Housing Color:	Blue Green Beige
Boot Color:	Blue Green Red
Cable Jacket:	PVC Lszh Ofnp
Housing Material:	ABC Pei PC
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Competivie fanout fiber optical patch cords from KOC.
All kinds of patch-cords: LC, MU, E2000, SMA, DIN, D4, ESCON, FDDI, FC, ST, FC

Features:
1) Low insertion loss and back reflection loss
2) Good durability
3) Standard: Compatible with DIN47256
4) High temperature stability
5) Good exchangeability
6) Single mode, multi-modes

Our Services

1.Fiber optic patch cord , pigtail, armoured patch cord , armoured pigtail
2.fiber optic connector and adapter , hybrid adapter, bare fiber adapter
3.optic splice closure , dome closure, horizontal splice closure , splitter closure ,drop wire clamp,drop wire closure
4.FTTH splitter distribution 12cores, 16cores,24cores, 32 cores, 48cores
5.fiber optic splitter, fiber optic coulper PLC splitter
6.fiber cabinet, fiber patch panel, ODF, wall mount, rack mount ODF
7.ADSS cable accessories

Description	Fiber Optic Patch Cord
Item NO.	Test Item	Unit	Standard & Requirement
1	Appearance	/	No crack, No scar, good conformability
2	Ferrule polished end	/	No scar, No spot
3	Insertion loss	dB	SM≤0.2,
4	Return loss	dB	APC≥-60 PC≥-50
5	Curvature eccentricity	um	<50
6	Fiber core undercut	um	-<50
7	Fall apart test	dB	H=1M,connector free-falling 5 times Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
8	Repetitiveness	dB	Insertion loss change< 0.1 Return loss change< 5
9	Insert & pull out	/	Max: 2KG
10	Tensile strength	dB	0- 10KG per minutes Insertion loss change< 0.1,Return loss change< 5,No flab, No distortion
11	Addition	dB	2.5Kg,200times,10times/minutes,±80° Insertion loss change < 0.1,Return loss change< 5, No flab, No distortion
12	Package	/	Clean, Correctitude, No dirt

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.

About KOC

Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.

Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!

To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.

To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.

Please visit us website for more information: http://www.koc.com.cn
