Multi-Function Autodoor Remote Controller for Automatic Door

Name: Multi-Function Autodoor Remote Controller for Automatic Door
Brand: all-electronics-online.com
SKU: 798227485
Availability: InStock
Rating: 4.9 (118 reviews)

Price:	US $ 16.5-22/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GV-603
Power Supply:	AC/DC 12~36V
Current Of Lock:	3A(12V)
Static Power:	35mA
Action Current:	85mA
Professional Appliance:	Built-in Surge Absorber
Battery Service Life:	18000 Times
Dimension:	123(L)X50(W)X32(H)mm
Application:	Automatic Doors
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	AC/DC12-36V

Product Description

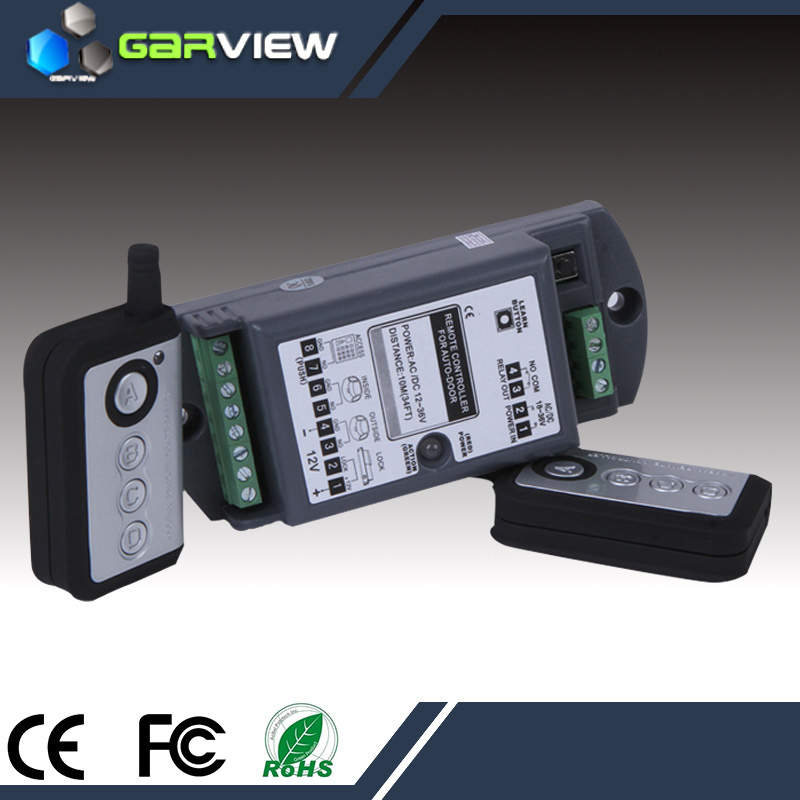

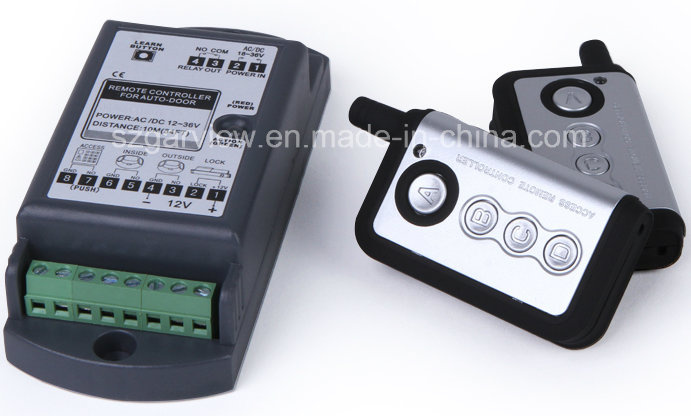

Multi-Function Autodoor Remote Controller

Product Overview
1.This product is with the function of coding self-learn.Make sure the code of remote transmitter has been learned into the receiver before using (16 kinds of codes can be learned)

2.Operation way: Press the learned button for 1S,indicator turns green.Press any key of the remote transmitter.
The transmitter has been learned by the receiver successfully with two flashes of green light appears.

3.Delete method: Press the learn button for 5S,green light flashing, all the codes has been deleted successfully ( Can not delete one by one)

4.Press the remote control A key(Full lock): All probe and access controller are lose effectiveness. electric lock locked automatically. People inside and outside cannot enter in.Be used for preventing thieves at night or on holidays periods.

5.Press the remote control B key(Unidirectional): External probe is lose effectiveness and electric lock locked automatically while external access controller and internal probe are available.Only insider can get in by swiping card. Internal probe is effective,people can get out.Be used for clearing up a gathering place .

6.Press the remote control C key(Full open): All probe and access controller are lose effectiveness. Door keeps fully open. For emergency using.

7.Press the remote control D key(Bi-directional): Internal and external probes are effective . Working hours with normal business.

Parameter

Power supply	AC/DC 12~36V
Static Power	35mA
Current of electric lock	3A(12V)
Action current	85mA(Non-current electric lock)
The interval time to open lock and auto-door	0.5s
Professional appliance	Built-in surge absorber
Transmitting and receiving method	Microwave level with a roller code
Remote control battery using life	18000 times
Working environment temperature	-42ºC~45ºC
Working environment humidity	10~90%RH
Appearance dimension	123(L)x50(W)x32(H)mm
The total weight	170g

Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
