Multi-Function DIN Rail Asymmetric Cycler Time Relay 16A Industrial Control Auto Timer Relays Time Delay

Name: Multi-Function DIN Rail Asymmetric Cycler Time Relay 16A Industrial Control Auto Timer Relays Time Delay
Brand: all-electronics-online.com
SKU: 839153935
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

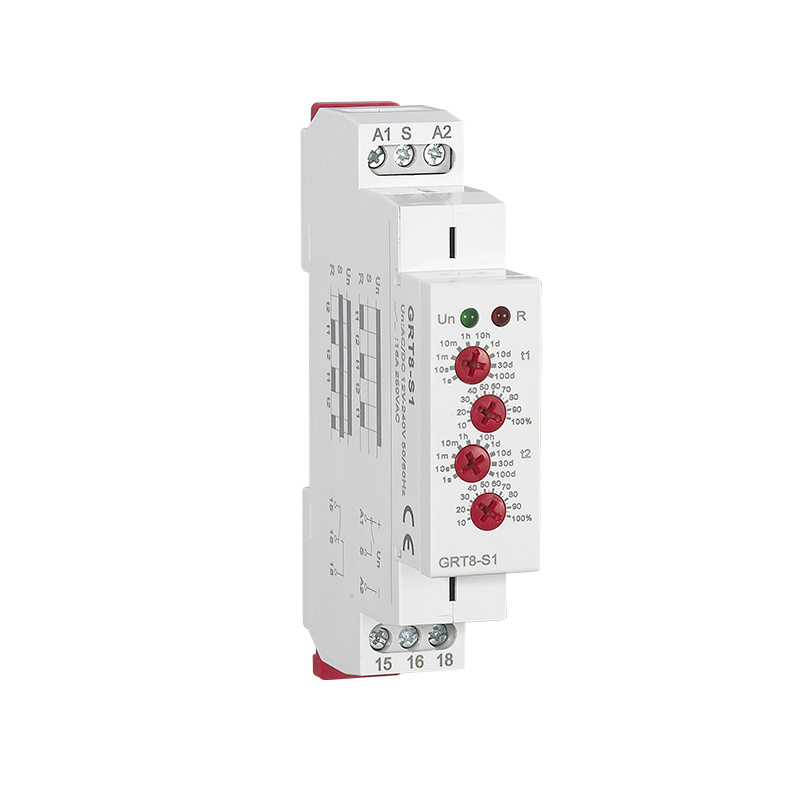

Prod Model:	GRT8-S1/S2
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail

Product Description

Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.

Function Features
-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days / 10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
Model and connotation

GRT8 S
Rated conrol supply voltage:
A230:AC230V
W240:AC/DC 12-240V

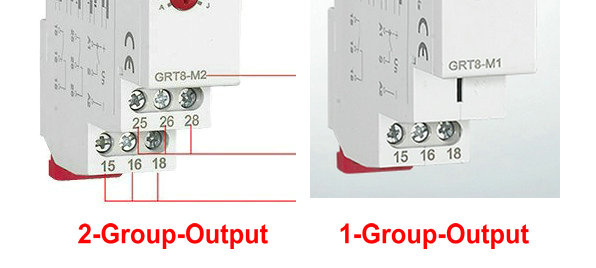

Number of contacts:
1:1×SPDT
2:2×SPDT
Asymmetric cycler GRT8 Series

Technical Data
Electrical features

Model NO	GRT8-S1 OR GRT8-S2
Function	Asymmetric Cycler Timer Relay
Voltage Range	AC230V (A230) O R AC/DC12V-240V (W240)
Output	1 SPDT OR 2 SPDT
Supply Terminals	A1-A2
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	16A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
