Multi-Function DIN Rail Time Relay 16A Industrial Control Auto Timer Relays Time Delay

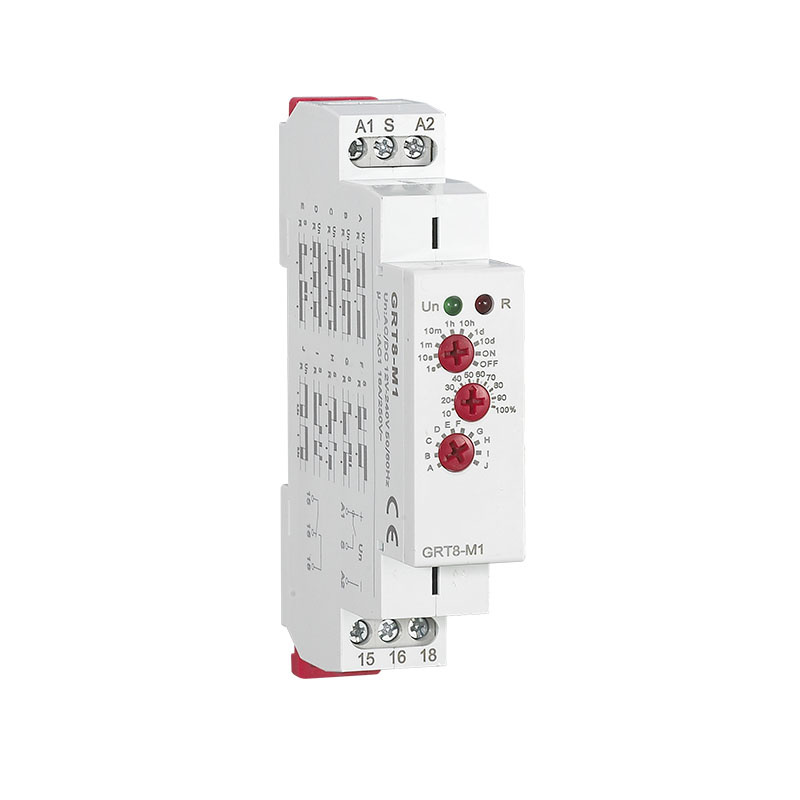

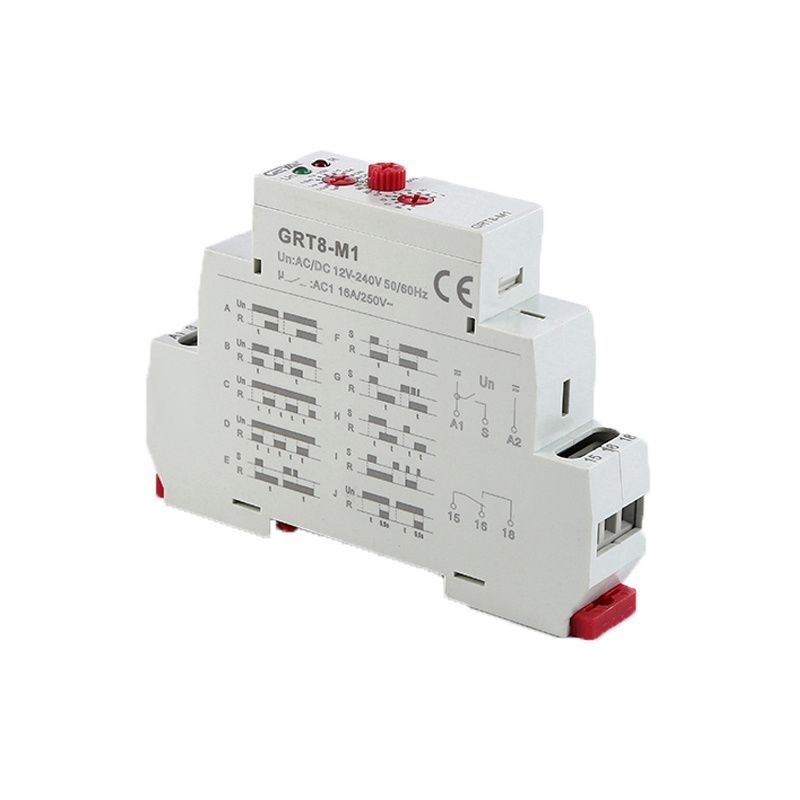

Name: Multi-Function DIN Rail Time Relay 16A Industrial Control Auto Timer Relays Time Delay
Brand: all-electronics-online.com
SKU: 839140055
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GRT8-M1/M2
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail

Product Description

Applications
-Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

Function Features

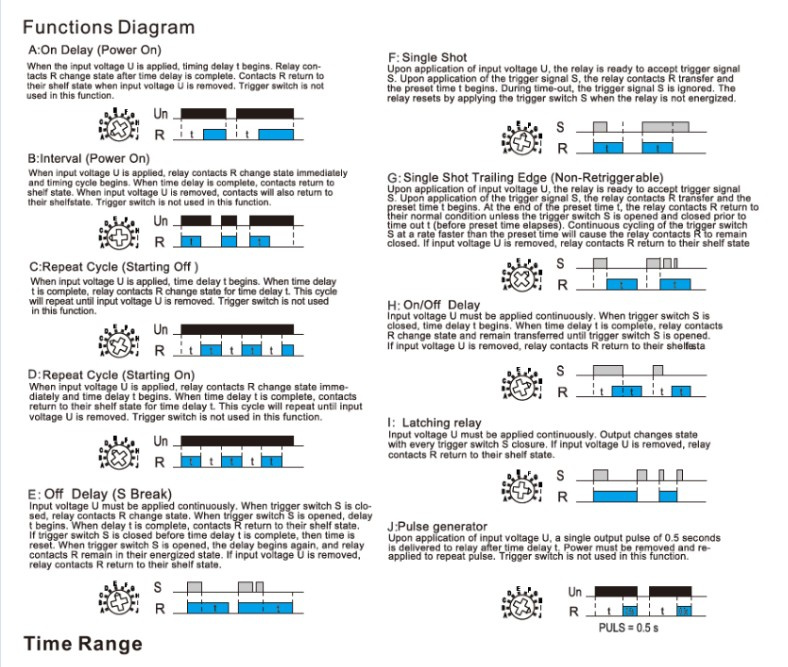

-10 functions: - 5 time functions controlled by supply voltage
-4 time functions controlled by control input
-1 function of latching relay
-Comfortable and well-arranged function and time-range setting by rotary switches.

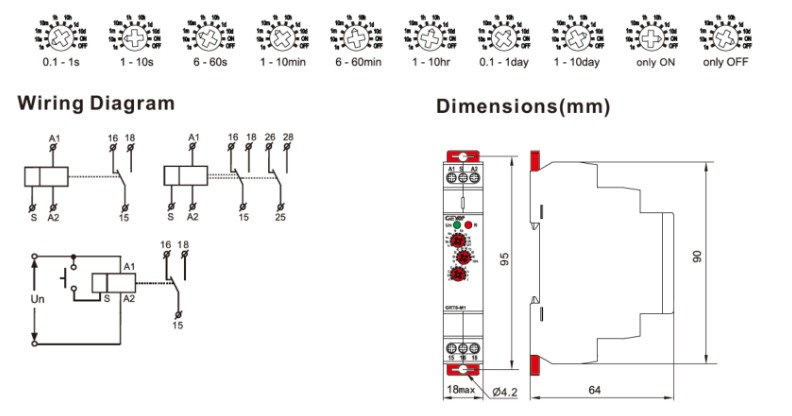

-Time scale 0.1 s - 10 days divided into 10 ranges.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

GRT8-M
Rated control supply voltage: A230:AC230V W240:AC/DC12V-240V

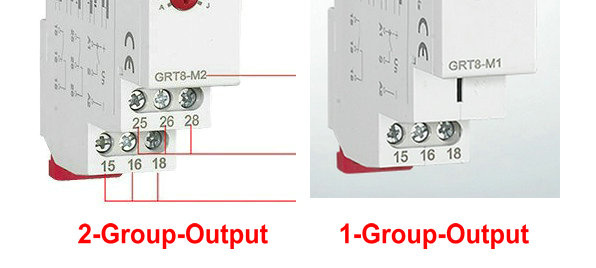

Number of contacts
1:1×SPDT
2:2×SPDT

Technical Data
Electrical features

Model Meaning	GRT8-M1 (1SPDT) GRT8-M2 (2SPDT)
Supply Indication	Green Led
Output Indication	Red Led
Voltage Range	AC230V (A230) OR AC/DC12V-240V (W240)
Output	1SPDT or 2 SPDT
Supply Terminals	A1-A2
Time Range	0.1s-10days,ON,OFF
Time Setting	Potentionmeter
Rated Frequency	50/60HZ
Rated Current	16A
Weight/pcs	0.1KG/PCS
Standard	IEC6947-5-1 EN61812-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS
