| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Application: |
High-performance Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

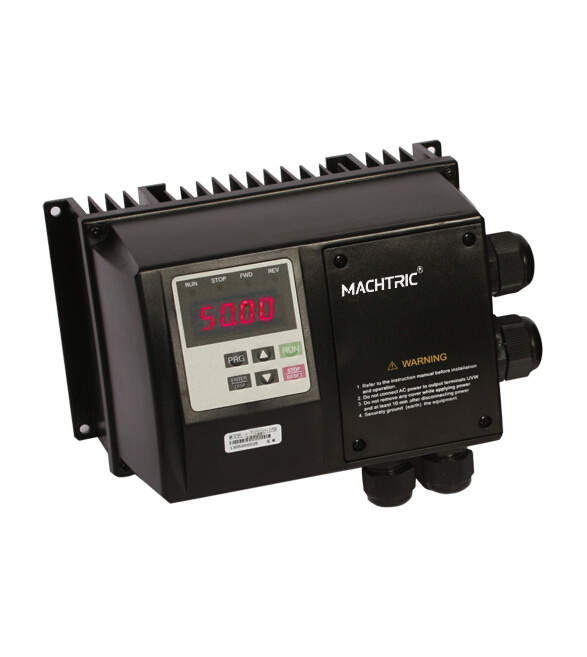

S2100S IP65 series frequency inverter
Features:
1. Waterproof IP65
2. Built-in pump control function
3. Easy to operate
| | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V;50-60 Hz |
| Voltage Range | 380V:330V~440V;220V:170-240V |
| Output | Voltage Range | 380 V:0~380 V;220V:0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;Eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input:0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:Auto riase torque by loading condition;Manual increase:Enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
| 8 multifunitinal output terminals, 1 inverter can control 4 ciircular variable frequency pumps |
| Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function (MODBUS) |
| Frequency Setting | Analog input 0~10V, 0~20, can be selected;Digital input:Input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| Multi-speed | Eight multifunction input terminals,15 section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Overload | 120%,60second (variable torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output shortcircuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| Ambient Humidity | Max.95% (non-condensing) |
| Altitude | Lower than 1000. |
| Vibration | Max.0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan;Above 5. |
Specification:| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | B |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M |
Advantage:
1.Our products quality position is located in the middle of the market.the main competitors like Mitsubishi,LS(LG),Delta,Teco.but our price is much competitive compared most of them. actually. our product is easy to replace Delta products because the same parameter in some series AC drive.
2.Our advantage is international quality products. we are professional manufacturer, panel builder and total solution supplier. all our products is designed by ourselves both software and hardware. so we have good ability to design the new products according to customer special requirement.
3.The defective goods or parts is not required to sent back factory, each defective is required to take the picture and notify the phenomenon ,location of the fault, and the specific defective material, the serial number (bar code )of the defective goods. It is much cost saving for both us.
Quick Details
- Place of Origin:Fujian, China (Mainland)
- Brand Name: Machtric
- Model Number:S2100GS
- Output Power:0.75KW-18.5KW
- Output Type:Multiple
- Weight:within 2KGS
- Input Voltage:200V-240V,380V-440V
- Output Voltage:200V-240V,380V-440V
- Type:AC-DC-AC
- Output Frequency:1.0-400.00Hz
- Output Current:1.6A-11A
- Frequency Inverter:AC MOTOR DRIVE
- AC Drive:frequency converter
Application:
1. Food processing: dumpling making machine, food processing mixer, noodle machine
2. Wood working machinery: side woodworking thickness planer, woodcarving/woodworking machine. simple wood-cutting machine, paint spraying machine
3. Paper making/ textile machinery: circular weaving machine, flat knitting machine, ribbon loom, printing machine, industrial sewing machine, knitting machine
4. Fan & pump equipment: air condition system, wastewater treatment/ constant pressure water supply system, water spraying/ irrigation pump, compressor
5. Conveying & delivering machinery: belt conveyor, automatic door, pull coil type iron door, dumb waiter, crown block X-Y axle
6. Machine tool/ metal working machine: grinding machine, drilling machine, small milling machine, machinery arms of injection molding machine (squeeze)
7. Others: industrial washing machine, grinder, running machine, feeding machine, ironer, car washer, packing machine
More information, pls feel free to contact us. Maria Xu
