Multi-Layer Polyester Film Flexible Laminates

Multi-Layer Polyester Film Flexible Laminates
Price: US $ 7000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: D280, D281
Markets: North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Max. Width: 1460mm
Chemistry: Organic Insulation
Material: Plastic
Thermal Rating: B 130
Maximum Voltage: 20KV~100KV
Application: Transformer Insulation Cylinder
Type: Insulation Laminates
Certification: ISO14001, Ohsas18001, ISO10012, Cnas
Brand: Dongfang

Product Description

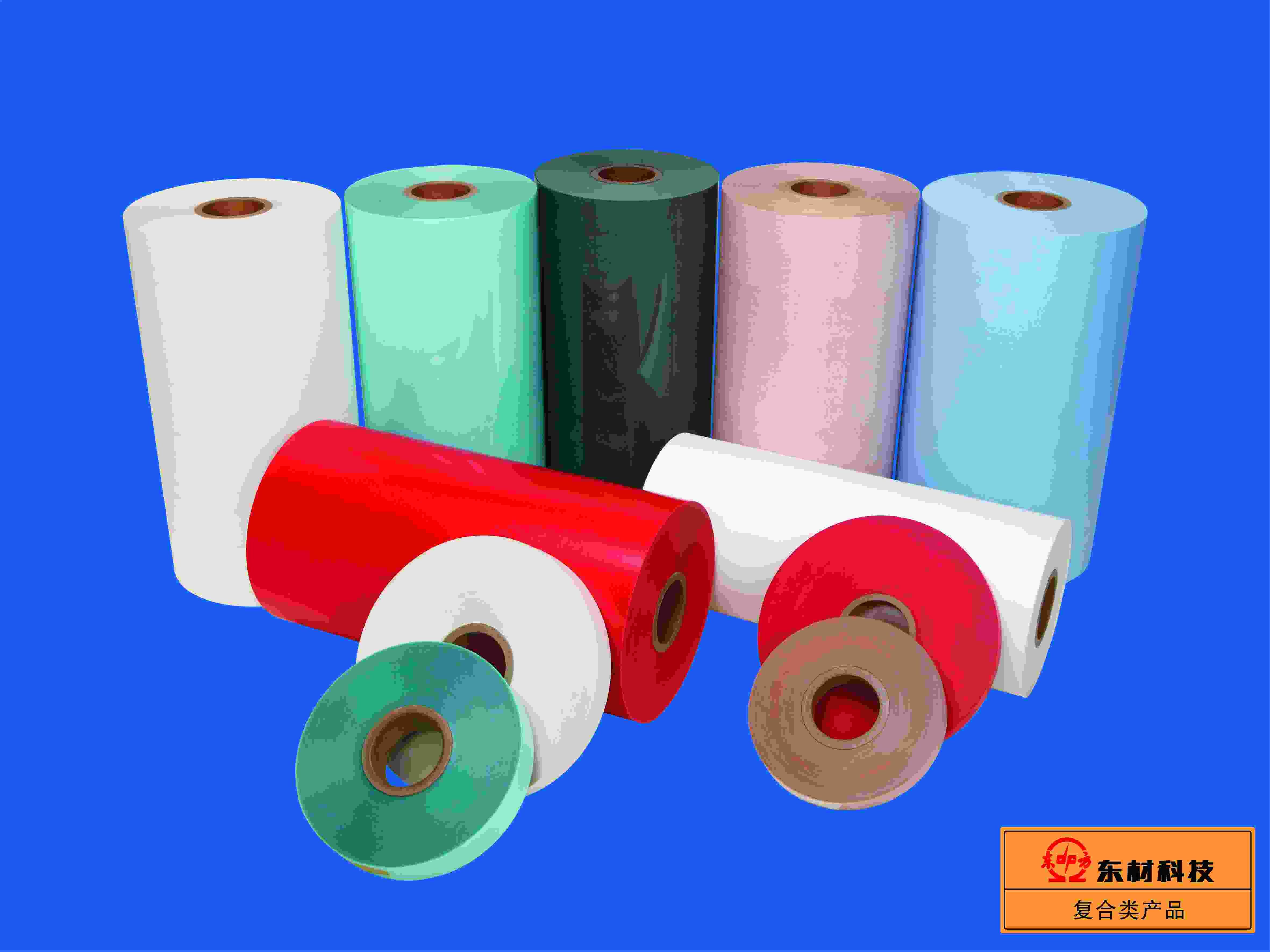

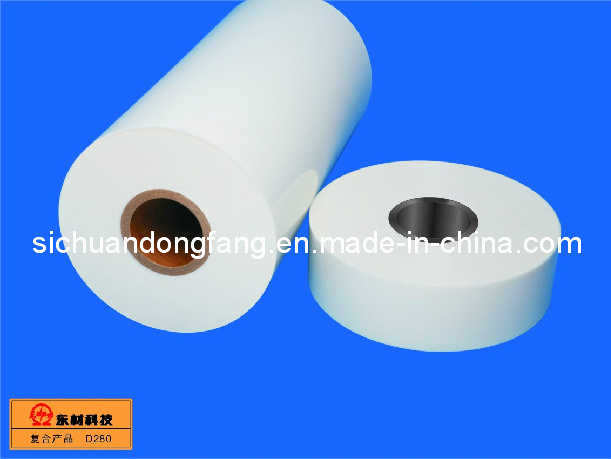

Multi-layer PET film laminates D280/D281 is one kind of flexible laminates in which two or multi-layers of polyester film are bonded together by special adhesive.

The product has excellent dielectric property, good thermal resistance, low water absorption and low heat shrinkage. D280 / D281 is used as insulation cylinder between high-voltage winding and low-voltage winding in dry-type Transformers. It can replace glass cloth laminated tubes.
PropertiesUnit0.50mm1.1mmTest Method
Grammageg/m 27231505GB/T 5591.2-2002
UL 94-2001
Breakdown VoltageKV3555
Flammability*
VTM-2V-2
Thermal Resistance
B
Storage Life18months, below 40 degree
Standard appliedQ/DJ3-215-2009
Application & RemarksWhen slitting and use, edge's crack, surface's scratch, oil stain and dust contamination shall be avoided.
Note*: Flammability* is only required for D281, not required for D280

The thickness can be negotiated.

Sichuan Dongfang Insulating Material Co., Ltd. ( Dongfang for short ) is the key subsidiary company of Sichuan EM Technology Co., Ltd. ( EMT for short ). EMT is a public company which specializes in R&D, manufacturing and selling chemical new materials. It devotes itself in providing safe and environment-friendly new material solution to create an even better life for society.

EMT headquarter, which owns 9 subsidiaries, locates in Sichuan Mianyang City, Sichuan Province. The company sticks to the developing principle of "Technology Supports Enterprise, Hard Work Promotes Industry". By relying on National Insulation Material Engineering Center, National Technology Center and Post-Doctoral Research Center as well as depending a high-quality R&D team which consists of doctors and masters, EMT sticks to the self-development road and prioritizes in developing insulation film, optical film, new insulation material products, environment-friendly FR material and fine chemicals. The company can provide service for various industries including new energy, smart power grids, consumer electronics, panel display, electrical engineering and electric apparatus and military projects. With excellent performance and good reputation, EMT exports to over 40 countries and regions and has established long-term stable cooperation with many enterprises.

By sticking to the development road of systematic innovation, relevance technology, diversified products and professional service, EMT is on the way to a global supplier in new material industry.
