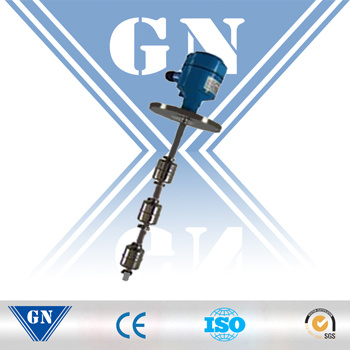

Multi-Link Small Float Level Switch (CX-FLM-RF-1)

Name: Multi-Link Small Float Level Switch (CX-FLM-RF-1)
Brand: all-electronics-online.com
SKU: 749930665
Availability: InStock
Rating: 4.7 (105 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FLM-RF-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

CX-FLM-RF-1 Multi-link small float level switch

Main features
1.Adopt SUS304/316 stainless steel
2.Simple structure , conveniently usage's level control parts
3.It has high temperature resistance, long working life ,stable performance
4.Mainly used in hot water inside the appliance or mechanical ,such as water heaters ,water dispenser ,dishwasher ,electric water ,oil compressor ,air compressor and other mechanical equipment

Main parameters

Installation	Top flange vertically DN40/50/80 ( vertical 20°)
Electric connection	300mm, UL1430 AWG22
Bar material	SUS304
Working pressure	10kg
Working temperature	≤80ºC
Accuracy	±2mm (in the water)
Repeatability	±1mm (in the water)
Form switch	N.C./N.O
Working voltage	250Vac,200Vdc
Working current	0.70A
Float dimension	Dia.28 * dia.9.50*28
Switch power	0.70VA
Durability	100000 times

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
