| Prod Model: |
dosin-8085 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedance: |
50 Ohm / 75 Ohm |
| RoHS Compliant: |
Yes |
| Apply To: |
Coaxial Cable,CCTV Equipment |
| Attachment Type: |
Cable / Adaptor / Receptacles /PCB |
| Materials: |
Plastic,Zinc Alloy and Copper |
| Connector Color: |
Connector Color |
| Plating: |
Gold/Nickel |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Brand: |
Dosin |
| Classification: |
Male Female |

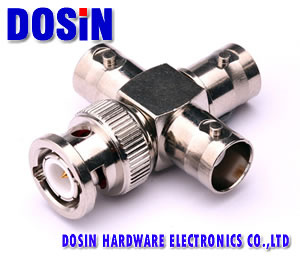

| Type: |
Adapter |
Product Description
Features & Benefits
|
Bayonet coupling mechanism provides quick mating and unmating |
|
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements |
|
50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating |
|
Three grades of connectors are available for military, industrial and commercial applications |
Applications
|
Antennas |
|
Automotive |
|
Base Stations |
|
Broadcast (75 Ω) |
|
Cable Assemblies |
|
Cable Modems |
|
Components |
|
Computers/LANs |
|
Instrumentation |
|
Oscilloscopes |
|
Medical Equipment |
|
Mil-Aero |
|
Radios |
|
Satcom |
|
Surge Protection |
|
Telecom |
|
|
|
|
50/75 Ω Specifications
Electrical |
Impedance |
50/75 Ω nominal |
Frequency Range |
0-4 GHz with low reflection |
Voltage Rating |
500 volts peak |
Dielectric Withstanding Voltage |
1,500 volts rms |
VSWR |
M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz |
MIL-C-39012 Contact Resistance |
Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ |
MIL-C-39012 Insulation Resistance |
5,000 MΩ |
MIL-C 39012 Braid to Body |
0.1 milliohm |
MIL-C-39012 RF Leakage |
-55 dB min at 3 GHz |
MIL-C-39012 Insertion Loss |
0.2 dB min at 3 GHz |
Mechanical |
Mating |
2-stud bayonet coupling per M39012 |
Braid/Jacket Cable Affixment |
All crimps are hex braid; clamps are screw-thread net and braid clamp |
Center Conductor Cable Affixment |
Crimps are crimp or solder; all other are solder only |
Captivated Contacts |
All crimps unless specified otherwise |
Cable Retention |
Crimps: 20-100 lbs; All others: 30-70 lbs |
Material |
Male Contact |
Brass |
Female Contact |
Beryllium copper or phosphorous bronze, silver or gold-plated |
Other Metal Parts |
Brass, nickel finish; M39012 is silver finish |
Insulator |
TFE, copolymer of styrene, glass-TFE (hermetically sealed) |
Crimp Ferrule |
Copper/brass |
Environmental |
Temperature Range |
TFE insulators: - 65°C to + 165 °C
Copolymer of Styrene: - 55°C to + 85°C |
Weatherproof |
Clamps with clamp gaskets; crimps with heat-shrink tubing |
Hermetic Seals |
Pass helium leak test of 2x10 -8 cc/second |
Shock |
MIL-STD-202 method 202 |
Vibration |
MIL-STD-202 method 202, test condition D |
Moisture Resistance |
MIL-STD-202 method 106 |
Corrosion |
MIL-STD-202 method 101, test condition B |
Temperature Cycling |
MIL-STD-202 method 102, test condition D |
Altitude |
MIL-STD-202 method 105, test condition C |
Military |
MIL-C-39012 |
Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
