Multicore 75 Ohm Telecom Coaxial Cable (SYV-75-2-2*16 Cores)

Name: Multicore 75 Ohm Telecom Coaxial Cable (SYV-75-2-2*16 Cores)
Brand: all-electronics-online.com
SKU: 752215915
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 0.01-8.0/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SYV-75-2-2*16 Cores
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Telecom Coaixal Cable:	Syv-75-2-2 16 Cores
Inner Conductor:	Bc/Tc
Insulation:	Solid PE
Shield:	Bc/Tc Braid
Jacket:	PVC
Type:	Insulated
Conductor Type:	Solid
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Range Of Application:	Antenna
Brand:	Otto Cable

Product Description

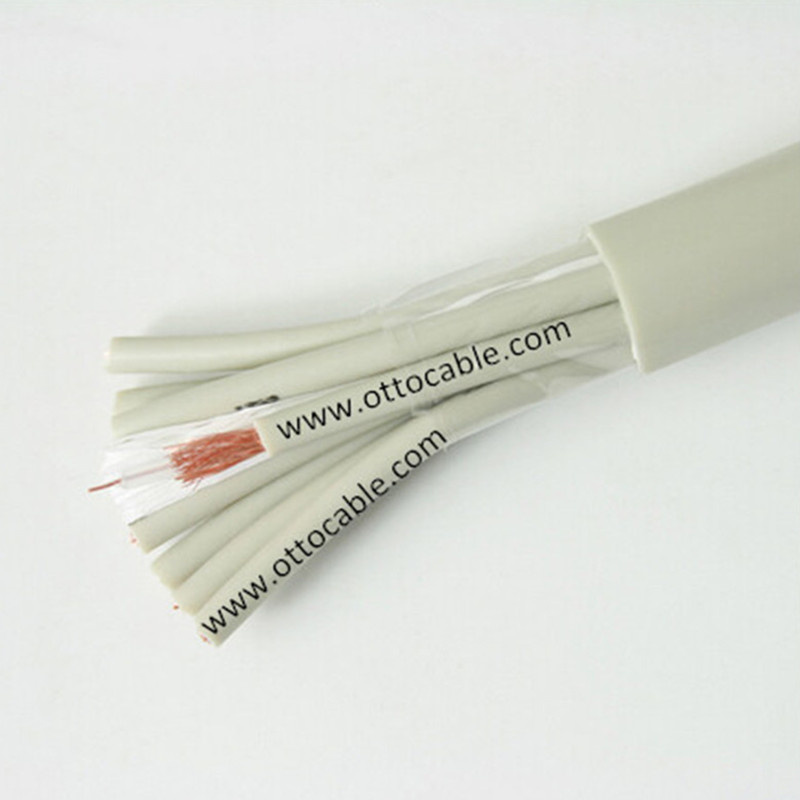

Multicore 75 Ohm Telecom Coaxial Cable SYV-75-2-2*16 Cores

75 Ohm Telecom Coaxial Cable SYV-75-2-1 16 cores, can be fixed with F,TV,BNC,TNC connectors.These versatile cable assemblies with various lengths mainly designed for digital telephone exchange and interconnection of telecommunication equipment, in a range of telecommunication systems.

Features:

1).75 Ohm data signal transmission;
2).Special insulation materials,providing good electrical property and welding performance;
3).Small diameter is ideal for tight fit applications;
4).Common size cable can be easily terminated;
5).RoHS compliant;

Telecom Coaxial Cable SYV-75-2-1 16 Cores
Construction
Item	Material		Diameter(mm)
Inner Conductor	Tinned Copper		0.34
Dielectric	Solid PE		2.0
FirstShield	Tinned Copper / Bare Copper Braid		2.5
Second Shield	Tinned Copper / Bare Copper Braid		---
Jacket	PVC/LSZH		4.0
Overall Jacket	PVC		21.00

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@10MHz	6.8
Velocity of Propagation(%)	66	@30MHz	11.0
Return Loss(dB)	≥20	@78MHz	18.5
Capacitance	69	@210MHz	30.0

Remarks:
1.).Regular color of cable jacket: white, grey, black.... can also be made as per cusotmer's reuquirements.
2).Packing:500M/Reel, can also be packed as per customer's requirements.
4).Lead time: Within 2 weeks.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
